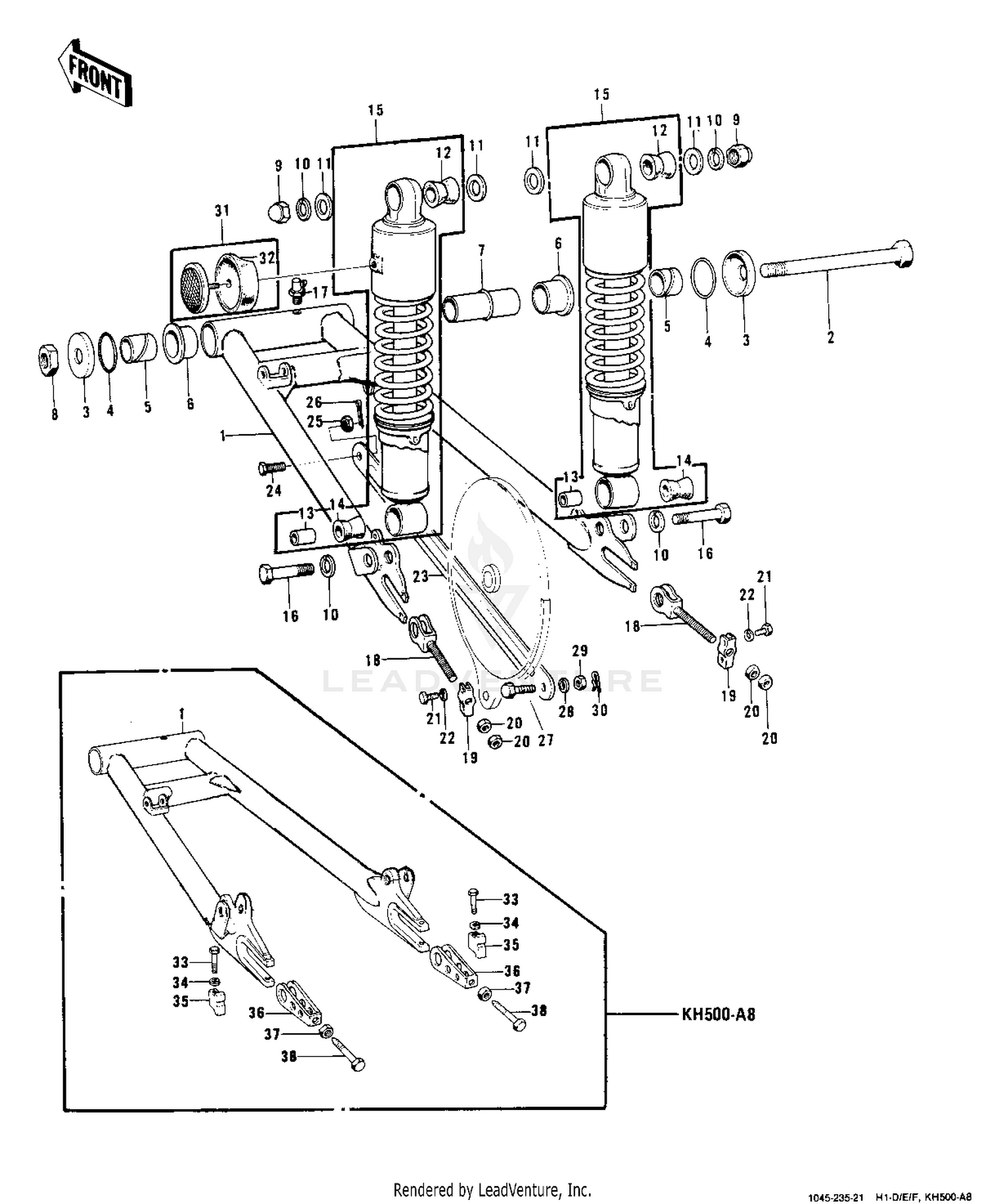

| Ref | Part Number | Description |
|---|
| 2 |
33032-038 |
SHAFT-SWING ARM PIVOT Price: $63.28 |
| 3 |
33035-007 |
CAP,SWING ARM Price: $18.10 |
| 5 |
33034-009 |
SLEEVE SWING ARM Price: $41.94 |
| 6 |
33033-009 |
BUSHING-SWING ARM Price: $99.19 |
| 7 |
33034-008 |
SLEEVE SWING ARM LONG Price: $8.38 |
| 8 |
92019-012 |
NUT-SELF LOCKING Price: $25.70 |
| 9 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 10 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 11 |
92022-246 |
WASHER,10.5X26X2.3 Price: $3.39 |
| 16 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 17 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 20 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 21 |
112BA0616 |
BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 22 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 23 |
43007-027 |
TORQUE LINK-REAR BRK Price: $27.18 |
| 24 |
92151-1876 |
BOLT,10X29 This part replaces 92003-096. Price: $10.72 |
| 25 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 26 |
550AA2025 |
PIN-COTTER,2.0X25 This part replaces 550D2025. Price: $2.81 |
| 27 |
92003-097 |
BOLT-HEX HEAD,10X40 Price: $6.81 |
| 28 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 29 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 30 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 31 |
28001-030 |
REFLECTOR,REFLEX,REAR Price: $24.26 |
| 32 |
28016-003 |
DAMPER RUBBER,REFLEX Price: $9.18 |
