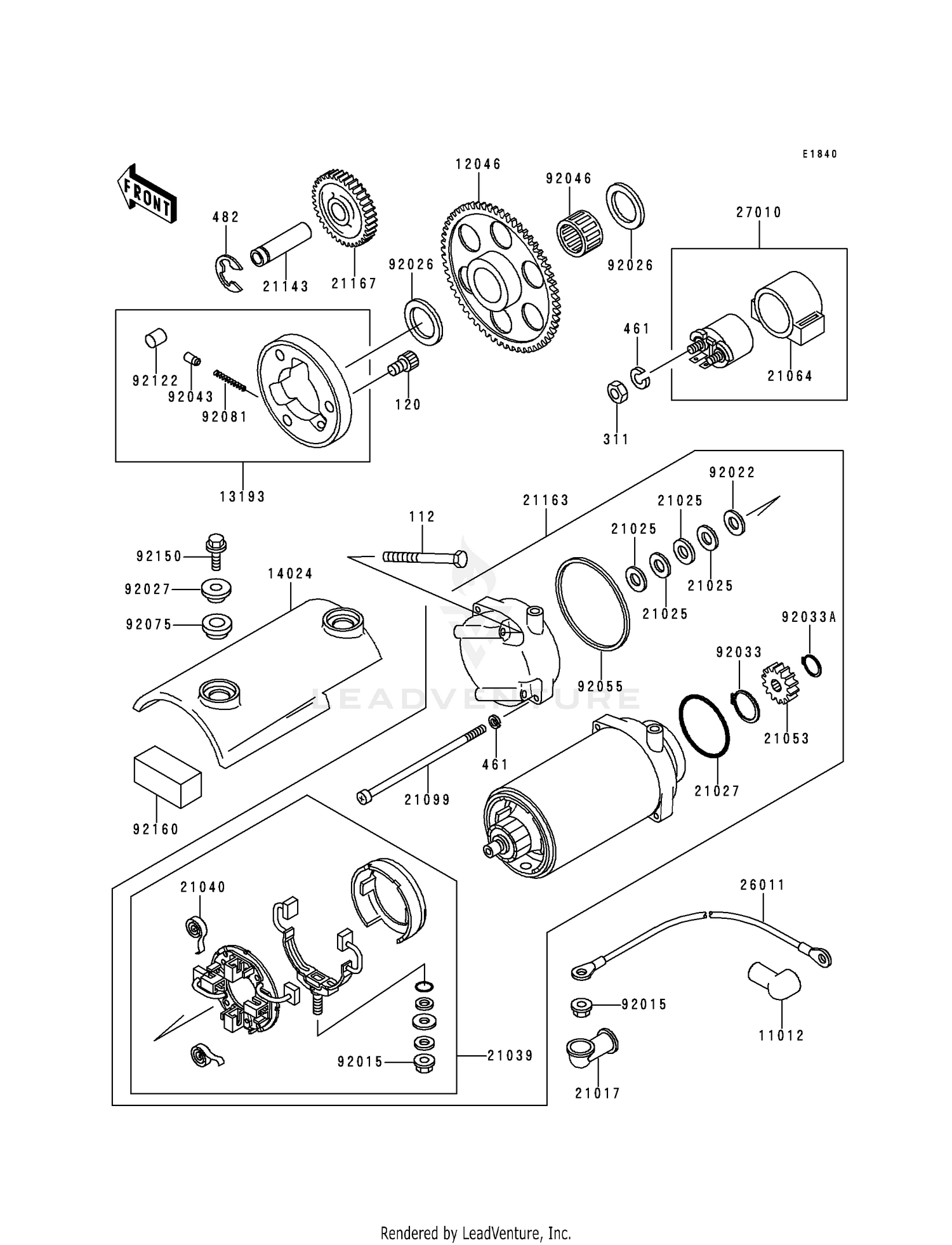

| Ref | Part Number | Description |
|---|
| 112 |
112BA0660 |
BOLT-UPSET This part replaces 112G0660. Price: $4.53 |
| 120 |
120CA0812 |
BOLT-SOCKET,8X12 This part replaces 120P0812. Price: $4.54 |
| 311 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 482 |
482J0200 |
CIRCLIP-TYPE-E,12MM Price: $3.92 |
| 11012 |
11012-1354 |
CAP,TERMINAL Price: $10.19 |
| 12046 |
12046-1032 |
SPROCKET,STARTER,58T Price: $104.98 |
| 13193 |
13193-1062 |
CLUTCH-ASSY-ONEWAY This part replaces 13193-1012. Price: $186.82 |
| 14024 |
14024-1972 |
COVER,STARTER MOTOR Price: $55.00 |
| 21017 |
21017-017 |
GROMMET,STARTER TERMINAL Price: $9.43 |
| 21025 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 21027 |
92055-1669 |
RING-O This part replaces 21027-008. Price: $12.48 |
| 21039 |
21039-1053 |
BRUSH,CARBON Price: $94.23 |
| 21040 |
21040-1003 |
SPRING-BRUSH Price: $9.41 |
| 21053 |
59051-1401 |
GEAR-SPUR This part replaces 21053-004. Price: $93.28 |
| 21064 |
92161-1722 |
DAMPER,MAGNETIC SWITCH This part replaces 21064-002. Price: $19.64 |
| 21099 |
21099-006 |
SCREW,PAN HEAD,6X130 Price: $8.31 |
| 21143 |
21143-003 |
SHAFT,IDLE GEAR Price: $14.64 |
| 21163 |
21163-1222 |
STARTER-ELECTRIC This part replaces 21163-1053. Price: $597.05 |
| 21167 |
21167-004 |
GEAR,IDLE,29T Price: $101.58 |
| 26011 |
26011-1135 |
WIRE-LEAD,START MOTOR Price: $74.28 |
| 27010 |
27010-1209 |
SWITCH,MAGNETIC Price: $124.94 |
| 92015 |
92015-1476 |
NUT,STARTER MOTOR Price: $4.31 |
| 92022 |
92022-1132 |
WASHER,9.1X18X0.8 Price: $6.22 |
| 92026 |
92026-1025 |
SPACER,25X36X3.2 Price: $6.16 |
| 92027 |
92027-1848 |
COLLAR,L=7.4 Price: $4.69 |
| 92033 |
92033-1326 |
RING-SNAP This part replaces 92033-034. Price: $10.44 |
| 92033A |
92033-037 |
CIRCLIP,13M/M Price: $9.80 |
| 92043 |
92043-087 |
PIN Price: $12.76 |
| 92046 |
92046-056 |
BRG,NEEDLE,K253017 Price: $23.42 |
| 92075 |
92075-1244 |
DAMPER,RUBBER Price: $4.78 |
| 92081 |
92081-110 |
SPRING Price: $4.76 |
| 92122 |
92122-004 |
ROLLER Price: $11.07 |
| 92150 |
92150-1235 |
BOLT,FLANGED,6X12 Price: $5.47 |
