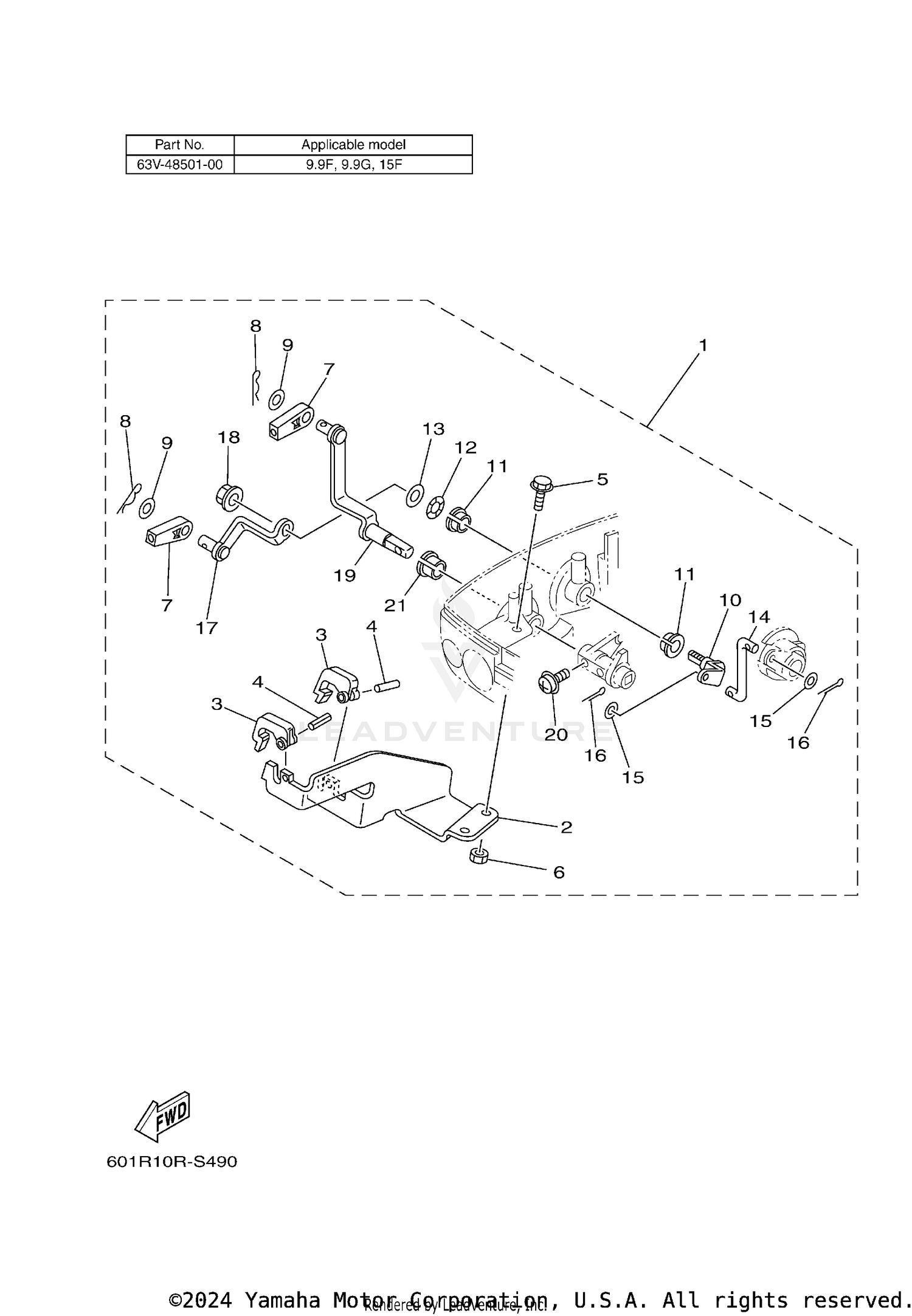

| Ref | Part Number | Description |
|---|
| 1 |
63V-48501-00-00 |
REMOTE CONT. ATTACHMENT ASSY. Price: $109.90 |
| 2 |
63V-48531-00-00 |
BRACKET, REMOTE CONTROL 1 Price: $79.45 |
| 3 |
682-48538-50-00 |
CLAMP, CABLE 1 Price: $14.75 |
| 4 |
91690-30012-00 |
PIN, SPRING Price: $5.55 |
| 5 |
97E95-06516-00 |
BOLT, HEXAGON W/W This part replaces 97595-06516-00. Price: $4.20 |
| 6 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 7 |
6FM-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $21.65 |
| 8 |
90468-18008-00 |
CLIP Price: $1.55 |
| 9 |
90201-08M12-00 |
WASHER, PLATE Price: $5.35 |
| 10 |
63V-42154-00-00 |
LEVER, THROTTLE CONTROL Price: $35.45 |
| 11 |
90386-10025-00 |
BUSH Price: $12.55 |
| 12 |
90206-10M04-00 |
WASHER, WAVE Price: $7.40 |
| 13 |
90201-10M02-00 |
WASHER, PLATE Price: $4.60 |
| 14 |
63V-42192-00-00 |
ROD 2 Price: $8.40 |
| 15 |
90201-044H9-00 |
WASHER, PLATE This part replaces 90201-04M06-00. Price: $9.49 |
| 16 |
91490-20010-00 |
PIN. COTTER Price: $1.99 |
| 17 |
63V-48534-00-00 |
THROTTLE LEVER, CONTROL Price: $25.95 |
| 18 |
95780-08300-00 |
NUT, FLANGE Price: $11.80 |
| 19 |
63V-48544-00-00 |
LEVER, SHIFTCONTROL Price: $64.00 |
| 20 |
97985-05212-00 |
SCREW, WITH WASHER This part replaces 90159-05M25-00. Price: $4.30 |
