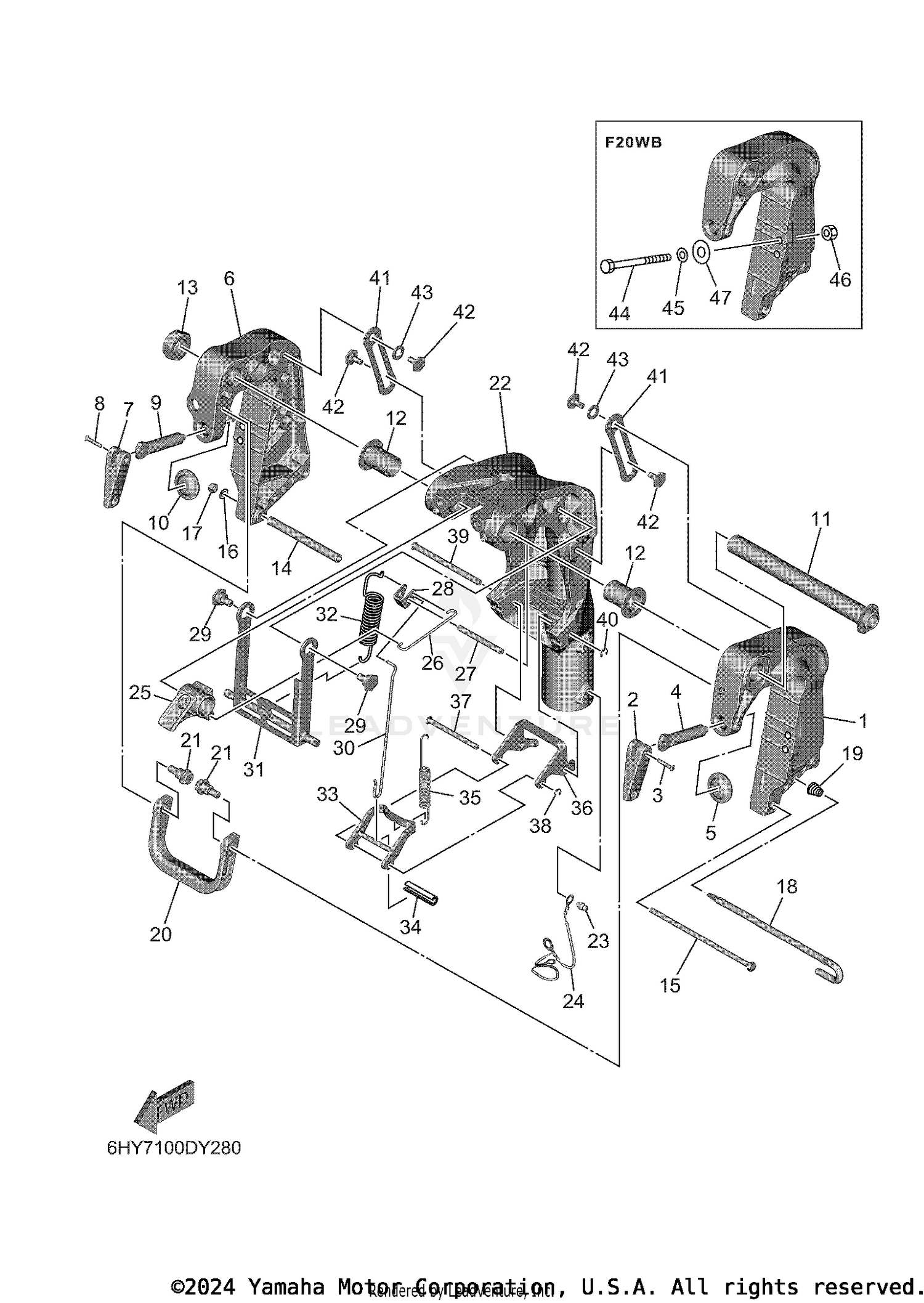

| Ref | Part Number | Description |
|---|
| 1 |
6FM-43111-00-8D |
BRACKET, CLAMP 1 Price: $138.55 |
| 2 |
6E0-43118-01-00 |
HANDLE, TRANSOM CLAMP Price: $8.95 |
| 3 |
90243-04M01-00 |
PIN Price: $5.95 |
| 4 |
6L2-43116-00-00 |
SCREW, TRANSOM CLAMP This part replaces 6E7-43116-00-00. Price: $38.10 |
| 5 |
648-43114-01-00 |
PAD, TRANSOM CLAMP Price: $14.20 |
| 6 |
6FM-43112-00-8D |
BRACKET, CLAMP 2 Price: $138.75 |
| 7 |
6E0-43118-01-00 |
HANDLE, TRANSOM CLAMP Price: $8.95 |
| 8 |
90243-04M01-00 |
PIN Price: $5.95 |
| 9 |
6L2-43116-00-00 |
SCREW, TRANSOM CLAMP This part replaces 6E7-43116-00-00. Price: $38.10 |
| 10 |
648-43114-01-00 |
PAD, TRANSOM CLAMP Price: $14.20 |
| 11 |
6FM-43131-00-00 |
BOLT, CLAMP BRACKET Price: $63.60 |
| 11 |
6FM-43131-10-00 |
BOLT, CLAMP BRACKET Price: $98.20 |
| 12 |
90386-22MA4-00 |
BUSH Price: $9.10 |
| 13 |
90185-22007-00 |
NUT, SELF-LOCKING This part replaces 90185-22043-00. Price: $23.95 |
| 14 |
90387-06369-00 |
COLLAR Price: $10.60 |
| 15 |
90119-06325-00 |
BOLT, WITH WASHER This part replaces 90101-06M18-00. Price: $51.75 |
| 16 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 17 |
95380-06700-00 |
NUT Price: $9.49 |
| 18 |
6L2-43160-01-00 |
TILT ROD ASSY Price: $52.50 |
| 19 |
90502-10M07-00 |
SPRING, CONICAL Price: $3.55 |
| 20 |
6FM-42731-00-00 |
CARRYING HANDLE Price: $17.15 |
| 21 |
90109-08043-00 |
BOLT Price: $4.49 |
| 23 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 24 |
6FM-82127-00-00 |
WIRE, LEAD 2 Price: $32.00 |
| 25 |
6FM-43631-00-00 |
LEVER, TILT Price: $6.70 |
| 26 |
6FM-43616-00-00 |
ROD, TILT LOCK Price: $3.15 |
| 27 |
6FM-43646-00-00 |
SHAFT, LEVER Price: $5.35 |
| 28 |
6FM-43641-00-00 |
LEVER, TILT Price: $5.00 |
| 29 |
90109-08M87-00 |
BOLT Price: $17.99 |
| 30 |
6FM-43617-00-00 |
ROD, TILT LOCK Price: $16.85 |
| 31 |
6FM-43350-00-00 |
RECEIVER ASSY Price: $102.70 |
| 32 |
6FM-43656-00-00 |
SPRING, REVERSE LOCK 1 Price: $11.70 |
| 33 |
6FM-43624-00-00 |
PLATE, TILT ROCK Price: $46.70 |
| 34 |
90387-06321-00 |
COLLAR Price: $4.50 |
| 35 |
6FM-43656-10-00 |
SPRING, REVERSE LOCK 1 Price: $6.95 |
| 36 |
6FM-43613-00-00 |
ARM, TILT LOCK Price: $54.15 |
| 37 |
6L2-43336-10-00 |
PIN Price: $9.30 |
| 38 |
99080-05600-00 |
CIRCLIP (93430-05027-00) Price: $9.49 |
| 39 |
6J8-43611-01-00 |
SHAFT, TILT LOCK Price: $11.55 |
| 40 |
99080-05600-00 |
CIRCLIP (93430-05027-00) Price: $9.49 |
| 41 |
6FM-43627-00-00 |
STOPPER Price: $6.60 |
| 42 |
90109-06M84-00 |
BOLT Price: $4.35 |
| 43 |
90206-10M24-00 |
WASHER, WAVE Price: $5.55 |
| 44 |
90101-08M88-00 |
BOLT Price: $17.99 |
| 45 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 46 |
95780-08300-00 |
NUT, FLANGE This part replaces 90185-08057-00. Price: $11.80 |
