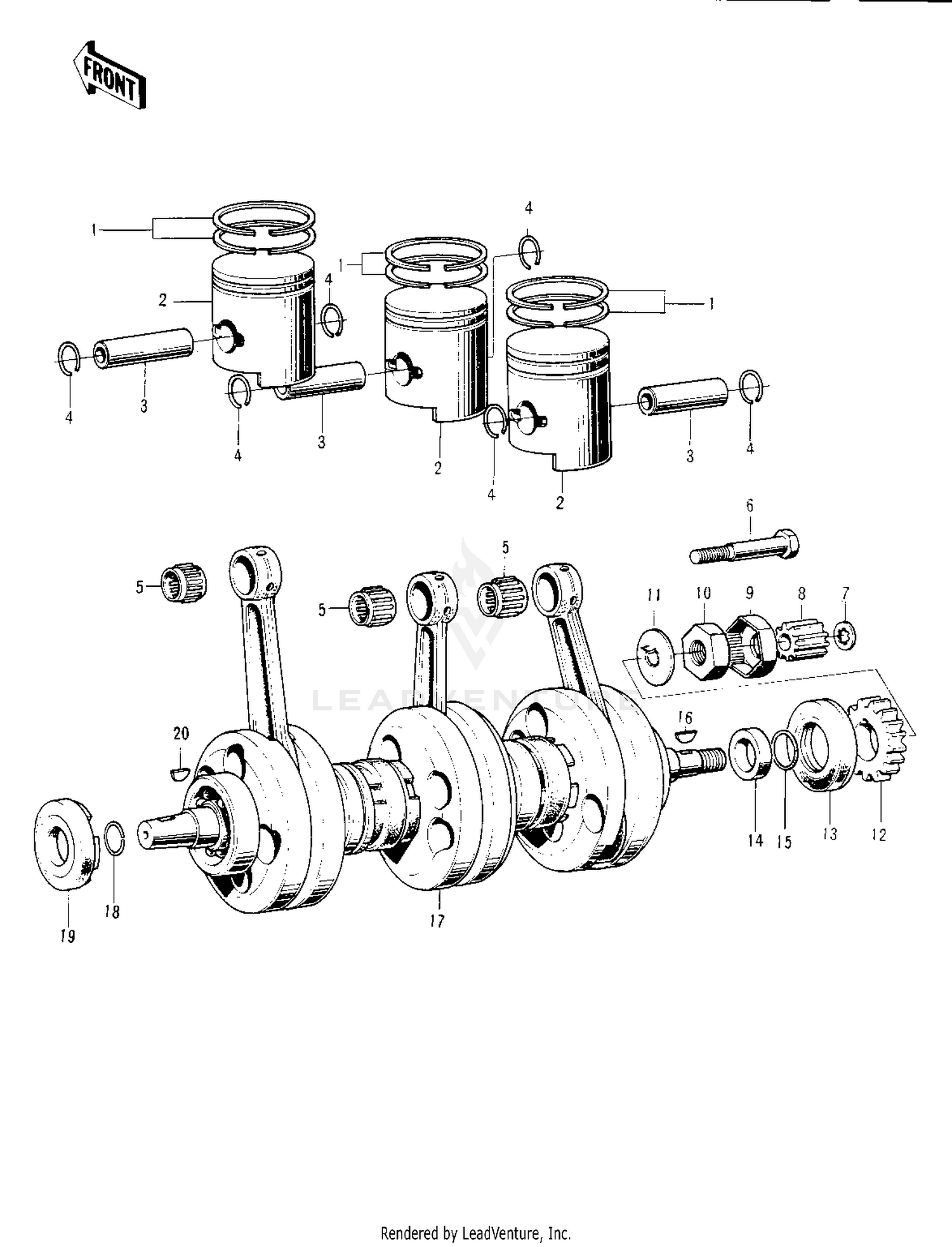

CRANKSHAFT/PISTONS
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13008-033 | RING SET,STD Price: $124.20 |
| 1 | 13024-041 | RING SET,0.040'O.S Price: $118.55 |
| 1 | 13025-038 | RING SET,0.020'O.S Price: $101.83 |
| 2 | 13001-056 | PISTON,STD Price: $153.37 |
| 2 | 13027-055 | PISTON,0.040'O.S Price: $146.34 |
| 2 | 13029-057 | PISTON,0.020' O.S Price: $139.68 |
| 3 | 13002-021 | PIN-PISTON Price: $19.22 |
| 4 | 92036-005 | RING-SNAP Price: $4.07 |
| 5 | 13033-007 | NEEDLE BEARING SM END Price: $67.03 |
| 6 | 92003-068 | BOLT-OIL PUMP GEAR Price: $5.93 |
| 7 | 463H0600 | WASHER LOCK 6MM Price: $0.81 |
| 8 | 16084-014 | PINION-OIL PUMP Price: $30.17 |
| 9 | 92024-021 | WASHER LOCK Price: $13.34 |
| 10 | 92015-019 | NUT 18MM Price: $7.22 |
| 11 | 92024-067 | WASHER,LOCK,18MM Price: $3.52 |
| 12 | 13121-021 | PINION-PRIMARY Price: $123.52 |
| 13 | 92050-052 | OIL SEAL,TC326210 Price: $49.06 |
| 14 | 92027-031 | COLLAR CRANK OIL SEAL Price: $31.08 |
| 16 | 92038-015 | WOODRUFF KEY Price: $5.21 |
| 17 | 13031-1008 | CRANK CONROD ASSY Price: $660.01 |
| 18 | 92036-013 | CIRCLIP Price: $3.38 |
| 19 | 92050-041 | OIL SEAL TCY256210 Price: $38.23 |
