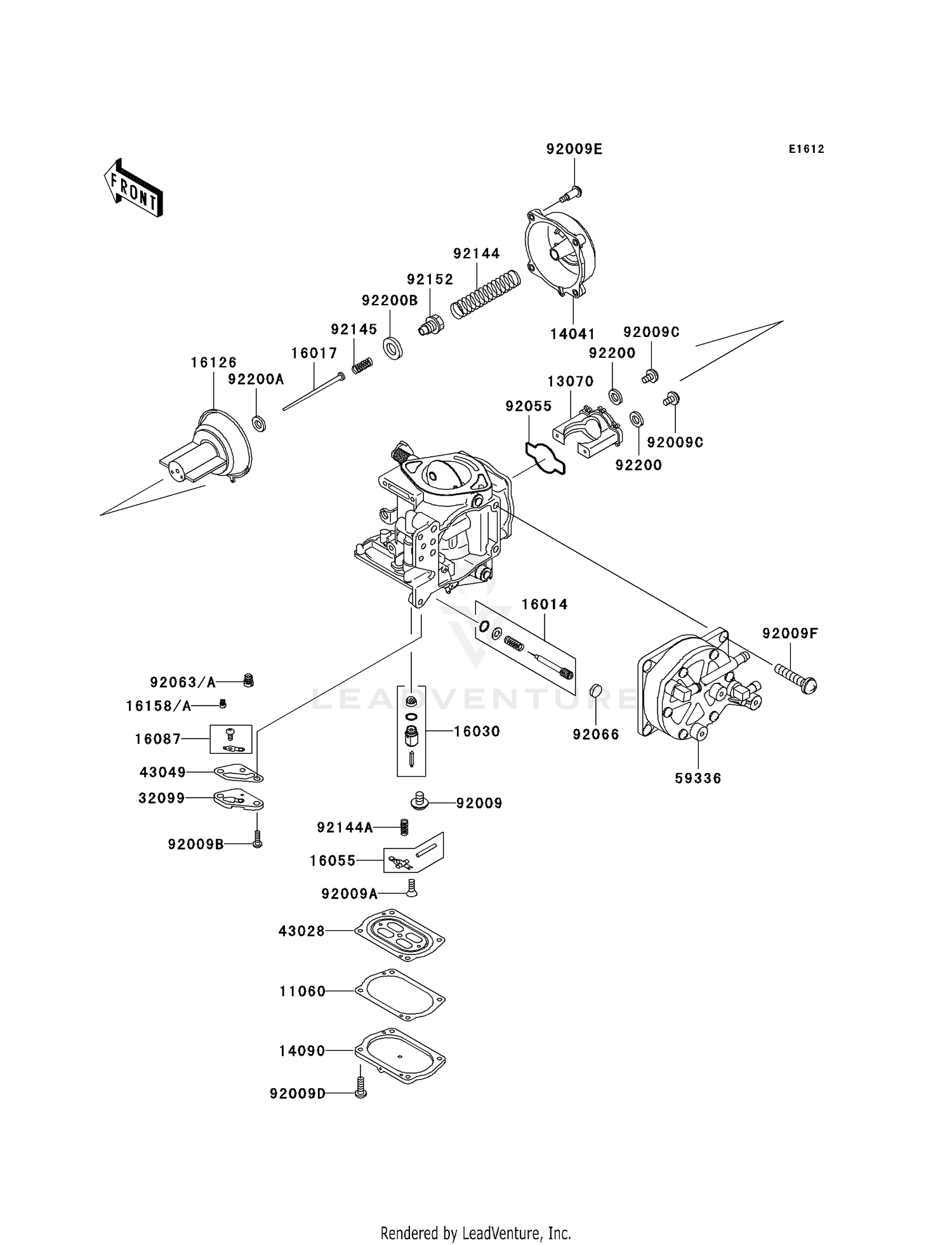

| Ref | Part Number | Description |
|---|
| 11060 |
11060-3789 |
GASKET,DIAPHRAGM COVE Price: $12.94 |
| 13070 |
13070-3726 |
GUIDE,VACUUM VALVE Price: $41.69 |
| 14041 |
14041-1100 |
COVER-COMP,MIXING Price: $86.95 |
| 14090 |
14090-3816 |
COVER,DIAPHRAGM Price: $35.87 |
| 16014 |
16014-3702 |
SCREW-PILOT AIR Price: $45.34 |
| 16017 |
16017-3707 |
JET-NEEDLE,N7FC Price: $46.47 |
| 16030 |
16030-3704 |
VALVE-FLOAT Price: $52.50 |
| 16055 |
16055-3702 |
ARM-FLOAT Price: $48.36 |
| 16087 |
16087-3706 |
VALVE-CHECK Price: $32.52 |
| 16126 |
16126-3705 |
VALVE,VACUUM Price: $207.51 |
| 16158A |
16158-3728 |
JET-SLOW,#38 Price: $25.69 |
| 32099 |
32099-3833 |
CASE,JET Price: $43.92 |
| 43028 |
43028-3711 |
DIAPHRAGM,CARBURETOR Price: $89.55 |
| 43049 |
43049-3713 |
PACKING Price: $10.51 |
| 59336 |
59336-3718 |
CASE-PUMP,DIAPHRAGM Price: $178.80 |
| 92009 |
92009-1771 |
SCREW Price: $6.61 |
| 92009A |
92009-3712 |
SCREW,3X6 Price: $2.38 |
| 92009B |
92009-3804 |
SCREW Price: $5.23 |
| 92009C |
92009-3839 |
SCREW,VALVE GUIDE Price: $9.47 |
| 92009D |
92009-3840 |
SCREW,DIAPHRAGM COVE Price: $2.97 |
| 92009E |
92009-3841 |
SCREW,MIXING COVER Price: $3.69 |
| 92009F |
92009-3865 |
SCREW,6X16 Price: $5.00 |
| 92055 |
92055-3749 |
RING-O,VACUUM VALVE G Price: $6.38 |
| 92063A |
92063-3725 |
JET-MAIN,#165 Price: $22.93 |
| 92066 |
92066-3769 |
PLUG,PILOT AIR SCREW Price: $4.28 |
| 92144 |
92144-1962 |
SPRING,VACUUM VALVE Price: $25.81 |
| 92144A |
92144-3764 |
SPRING,FLOAT ARM Price: $10.19 |
| 92145 |
92145-3719 |
SPRING,JET NEEDLE Price: $10.04 |
| 92152 |
92152-3706 |
COLLAR,JET NEEDLE Price: $27.16 |
| 92200 |
92200-3772 |
WASHER,VALVE GUIDE Price: $3.97 |
| 92200A |
92200-3773 |
WASHER,JET NEEDLE Price: $4.78 |
