Home / MARINE / ELECTRIC / 1977 / IGNITION/GENERATOR A1/A7

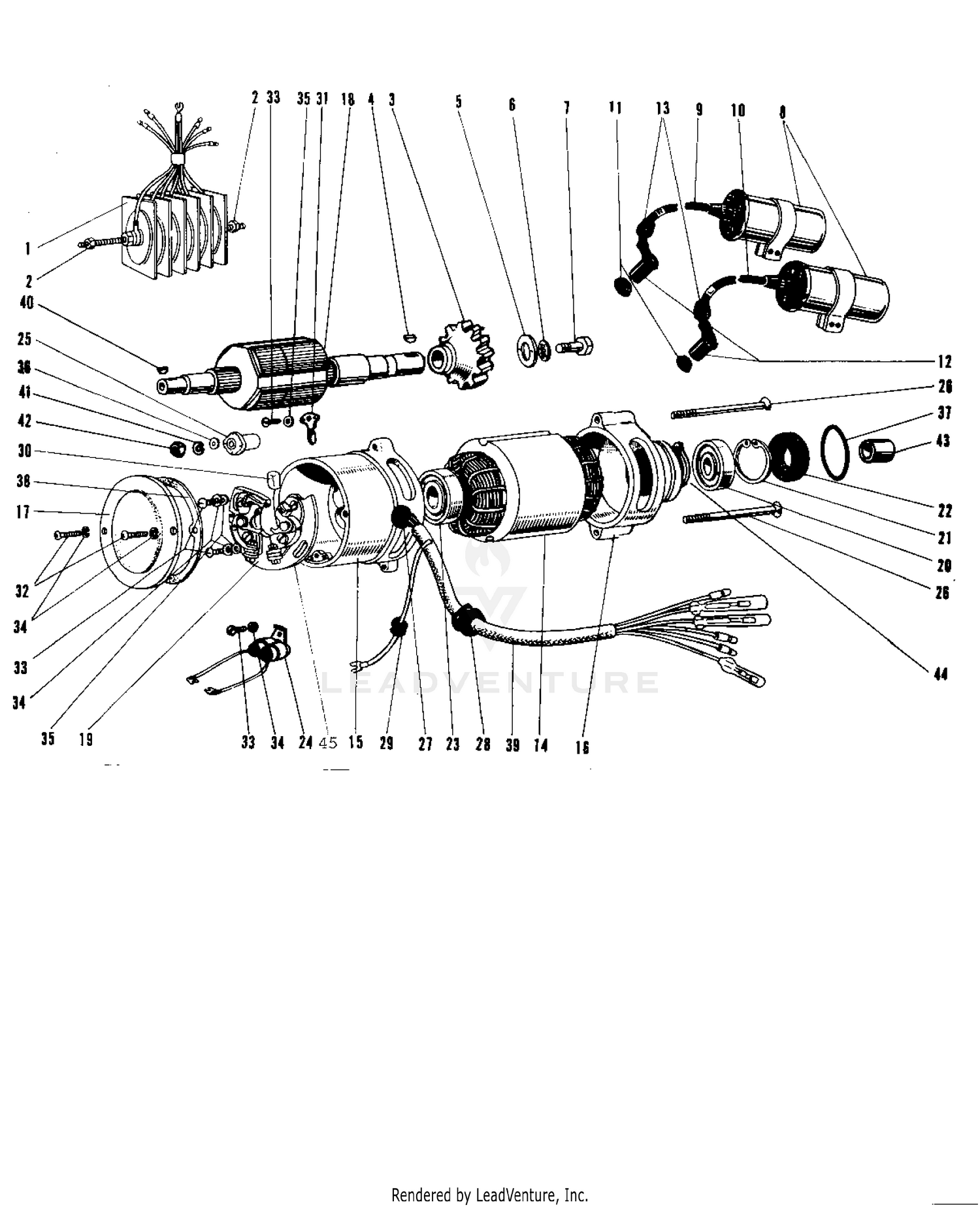

IGNITION/GENERATOR A1/A7

IGNITION/GENERATOR A1/A7

Parts (42)

RefPart NumberDescription
1 21061-005 RECTIFIER Price: $65.71
2 312AA0600 NUT-HEX This part replaces 312B0600. Price: $0.73
4 510A3100 KEY-WOODRUFF Price: $2.70
5 92022-079 WASHER PLAIN 8MM Price: $3.42
6 463EA0800 WASHER-LOCK,8MM This part replaces 463H0800. Price: $2.06
7 115BA0820 BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52
8 21121-015 COIL IGNITION Price: $76.55
9 21133-007 CORD HIGH TENSION R.H Price: $3.95
10 21133-008 CORD HIGH TENSION L.H Price: $6.65
11 21131-002 GROMMET PLUG CAP A Price: $0.71
12 21130-016 CAP-SPARK PLUG Price: $24.97
13 92071-517 GROMMET Price: $0.69
14 21003-003 STATOR Price: $131.03
15 21004-002 UNAVAILABLE IN PRICE BOOK Price: $48.19
16 21005-002 COVER FRONT Price: $32.01
17 21006-002 COVER CONTACT BREAKER Price: $7.27
18 21007-004 ROTOR Price: $138.50
19 21008-008 CONTACT BREAKER ASSY Price: $42.99
20 21009-001 BEARING BALL #6202 Price: $9.60
21 21010-002 CIRCLIP 35MM Price: $2.32
22 21011-002 OIL SEAL SB22357 Price: $5.54
23 21009-002 BEARING BALL #6201ZZ Price: $9.60
24 21013-008 CONDENSER Price: $21.60
25 21014-003 CAM Price: $10.13
26 21015-002 SCREW CNTSNK HD 6X80 Price: $1.15
27 21017-001 GROMMET WIRING HARN A Price: $2.98
28 21017-003 GROMMET WIRING HARN B Price: $2.98
29 21017-005 GROMMET WIRING HARN C Price: $3.61
30 21019-005 FELT OIL Price: $5.39
31 21020-001 POINTER IGN TIMING Price: $0.54
32 220AA0410 SCREW-PAN-CROS,4X10 This part replaces 220B0410. Price: $2.46
33 220AA0406 SCREW-PAN CROS,4X6 This part replaces 220B0406. Price: $1.67
34 461F0400 WASHER SPRING 4MM Price: $0.47
35 410AA0400 WASHER-PLAIN-SMALL,4MM This part replaces 410B0400. Price: $0.49
36 410AA0600 WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31
38 21028-002 GASKET CNTCT BRK COV Price: $1.88
39 21029-004 WIRING HARNESS DYNAMO Price: $10.82
40 21030-002 WOODRUFF KEY CAM Price: $0.42
41 461DA0800 WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40
42 21032-001 NUT 8MM Price: $2.48
43 21033-001 COLLER DYNAMO GEAR Price: $3.60
44 21034-001 WASHER WAVE 19MM Price: $2.13
