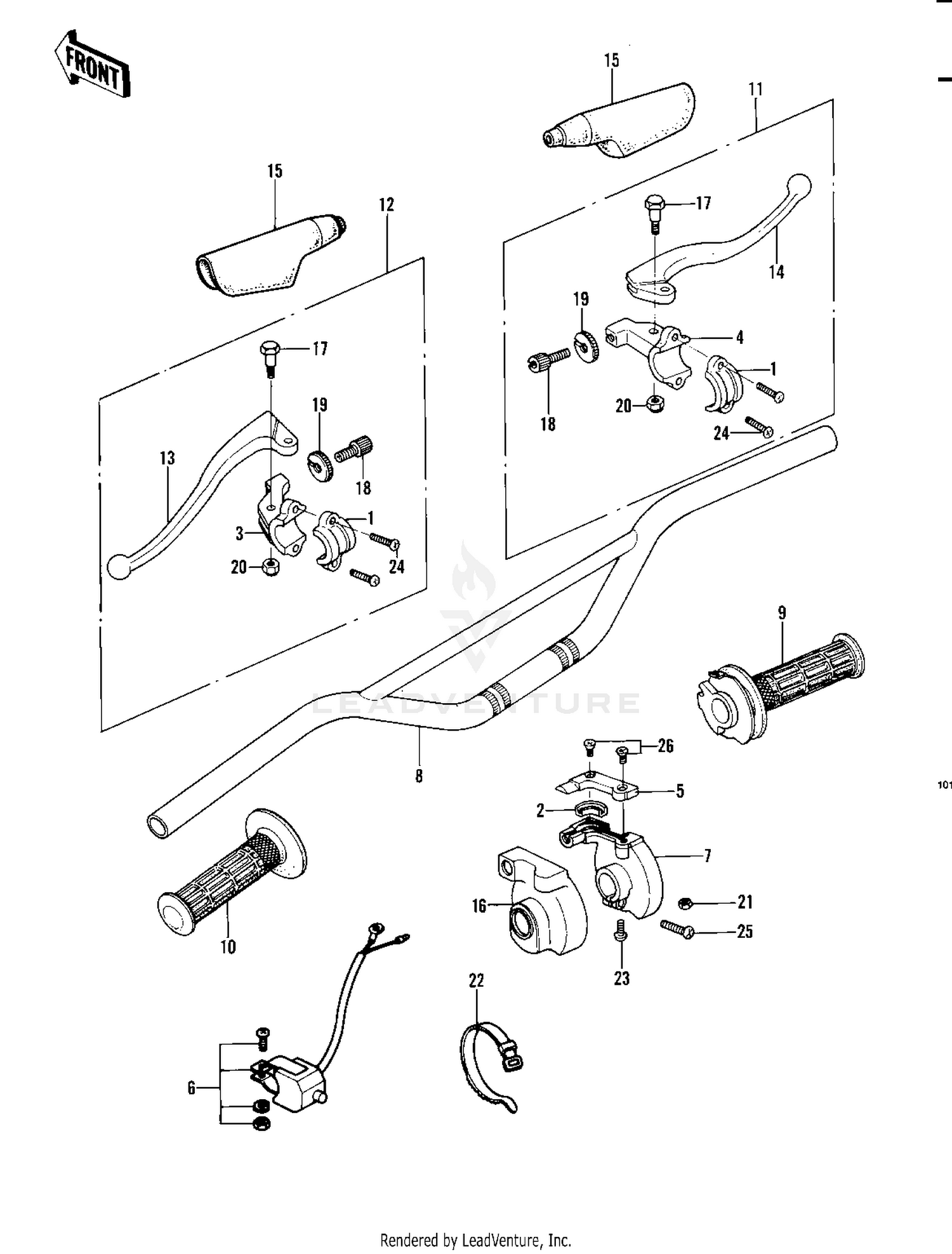

| Ref | Part Number | Description |
|---|
| 1 |
11058-2777 |
BRACKET,LEVER HOLDER This part replaces 11036-1297. Price: $16.90 |
| 2 |
13070-1053 |
GUIDE,THROTTLE PEACE Price: $5.51 |
| 3 |
13091-1131 |
HOLDER,CLUTCH LEVER Price: $46.92 |
| 4 |
13280-0354 |
HOLDER,BRAKE LEVER This part replaces 13091-1135. Price: $26.13 |
| 5 |
14025-1392 |
COVER,THROTTLE UPP,RH Price: $7.58 |
| 6 |
27010-1018 |
SWITCH,ASSY,ENG STOP Price: $70.86 |
| 7 |
32099-1024 |
CASE,THROTTLE LWR,RH Price: $41.86 |
| 8 |
46003-4001 |
HANDLEBAR Price: $57.42 |
| 9 |
46019-1020 |
GRIP-ASSY,THROTTLE Price: $87.16 |
| 10 |
46075-1024 |
GRIP,LH Price: $25.66 |
| 11 |
46076-1120 |
LEVER-ASSY-GRIP Price: $69.07 |
| 12 |
46076-1023 |
LEVER-ASSY-GRIP Price: $61.32 |
| 13 |
46092-0045 |
LEVER-GRIP,CLUTCH This part replaces 46092-1110. Price: $26.28 |
| 14 |
46092-1109 |
LEVER-GRIP,BRAKE Price: $30.07 |
| 15 |
46071-003 |
DUST COVER Price: $29.41 |
| 16 |
49006-1082 |
BOOT,THROTTLE CASE,RH Price: $29.95 |
| 17 |
92001-140 |
BOLT,HEX HEAD,6MM Price: $21.19 |
| 18 |
46055-009 |
SCREW,CABLE ADJUST Price: $19.07 |
| 19 |
46056-006 |
NUT,CABLE ADJUST LOCK Price: $8.94 |
| 20 |
92019-008 |
NUT,LOCK,6MM Price: $4.26 |
| 21 |
92019-008 |
NUT,LOCK,6MM Price: $4.26 |
| 22 |
92072-3505 |
BAND Price: $1.59 |
| 23 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 24 |
220AA0514 |
SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43 |
| 25 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520. Price: $0.68 |
