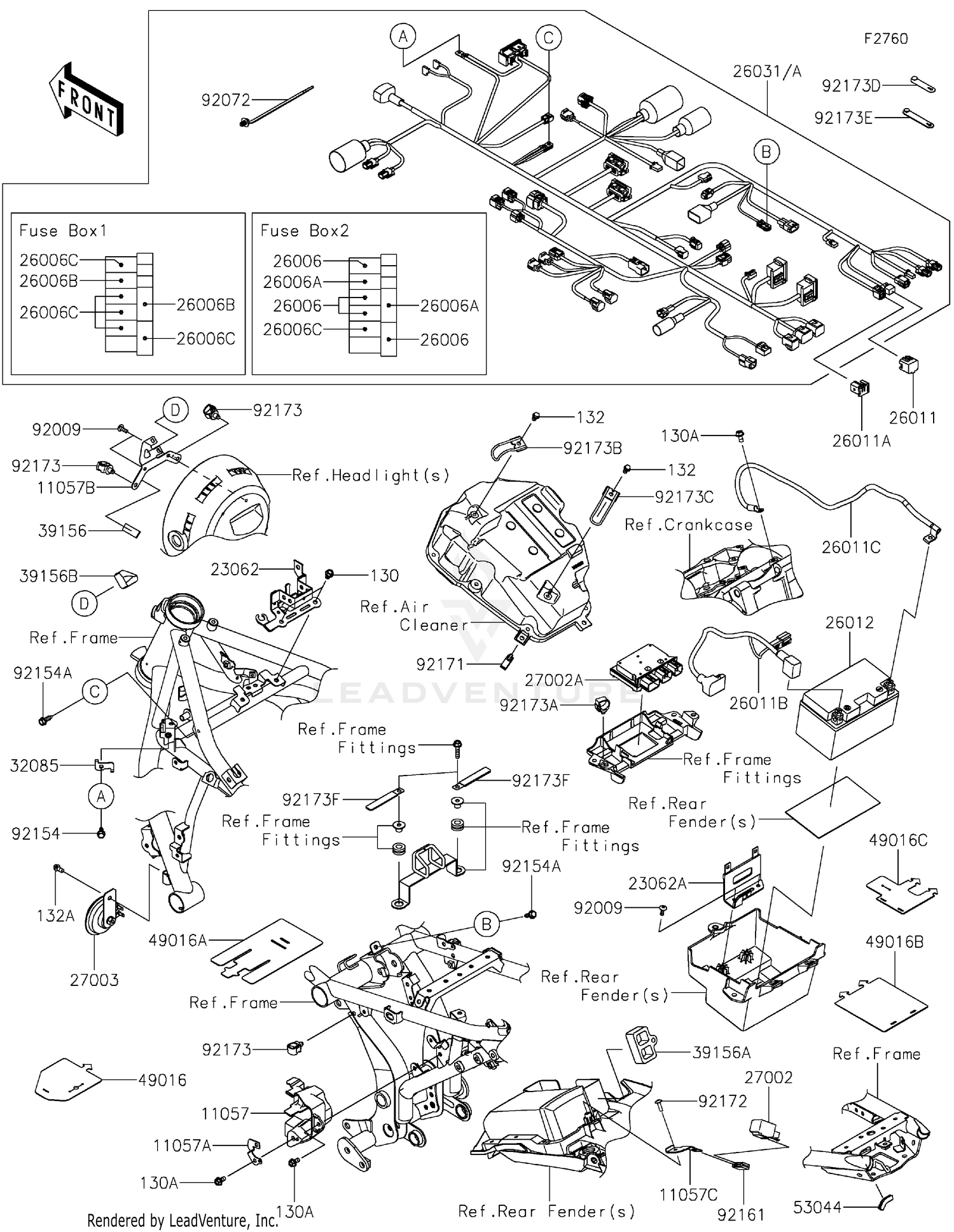

| Ref | Part Number | Description |
|---|
| 11057 |
11057-0137 |
BRACKET,MAGNETIC SW. Price: $7.93 |
| 11057A |
11057-0138 |
BRACKET,COUPLER Price: $2.70 |
| 11057B |
11057-7138 |
BRACKET,SIGNAL LAMP Price: $5.06 |
| 11057C |
11057-7590 |
BRACKET,RELAY Price: $3.53 |
| 23062 |
23062-1318 |
BRACKET-COMP Price: $13.34 |
| 23062A |
23062-1339 |
BRACKET-COMP,FUSE BOX Price: $9.22 |
| 26006 |
26006-0001 |
FUSE,MINI BLADE,15A,BLUE Price: $6.12 |
| 26006A |
26006-0020 |
FUSE,MINI BLADE,25A,NATURAL Price: $6.57 |
| 26006B |
26006-1077 |
FUSE,MINI BLADE,5A,TAN Price: $4.87 |
| 26006C |
26006-1078 |
FUSE,MINI BLADE,10A,RED Price: $4.87 |
| 26011 |
26011-0275 |
WIRE-LEAD,CONNECTOR COVER Price: $14.13 |
| 26011A |
26011-1901 |
WIRE-LEAD,DIAG CONNECTOR Price: $37.01 |
| 26011B |
26011-1947 |
WIRE-LEAD,BATTERY(+) Price: $45.49 |
| 26011C |
26011-1948 |
WIRE-LEAD,BATTERY(-) Price: $34.10 |
| 26012 |
26012-1606 |
BATTERY,YTZ10,12V 8.6AH This part replaces 26012-0689. Price: $236.49 |
| 26031 |
26031-3882 |
HARNESS,MAIN Price: $1,011.52 |
| 26031A |
26031-3883 |
HARNESS,MAIN Price: $1,011.52 |
| 27002 |
27002-0006 |
RELAY-ASSY,SIGNAL LAMP Price: $54.81 |
| 27002A |
27002-0050 |
RELAY-ASSY Price: $143.14 |
| 27003 |
27003-0158 |
HORN Price: $68.20 |
| 32085 |
32085-0890 |
STOPPER Price: $1.59 |
| 39156 |
39156-2336 |
PAD,12X32.8X2 Price: $1.27 |
| 39156A |
39156-2685 |
PAD,DIAGNOSTIC CONNECTOR Price: $7.64 |
| 39156B |
39156-2819 |
PAD Price: $3.30 |
| 49016 |
49016-0645 |
COVER-SEAL Price: $6.48 |
| 49016A |
49016-0672 |
COVER-SEAL,ECU CONNECTOR Price: $9.61 |
| 49016B |
49016-0699 |
COVER-SEAL,REAR LAMP Price: $5.17 |
| 49016C |
49016-0700 |
COVER-SEAL,FUEL-PUMP CONNECTOR Price: $4.07 |
| 53044 |
53044-0001 |
TRIM,L=30 Price: $2.80 |
| 92009 |
92009-1197 |
SCREW,TAPPING,5X14 Price: $3.92 |
| 92072 |
92072-1414 |
BAND,OS170-FT7(BLACK) Price: $3.74 |
| 92154 |
92154-0551 |
BOLT,FLANGED,6X16 Price: $1.63 |
| 92154A |
92154-4008 |
BOLT,FLANGED,6X18 Price: $1.37 |
| 92161 |
92161-1443 |
DAMPER,15X25X8.5 Price: $1.94 |
| 92171 |
92171-0316 |
CLAMP,BRAKE HOSE Price: $3.88 |
| 92172 |
92172-0742 |
SCREW,TAPPING,5X16 Price: $1.94 |
| 92173 |
92173-0736 |
CLAMP,12MM DIA. Price: $5.05 |
| 92173A |
92173-0868 |
CLAMP,HOLDER CLIP Price: $3.02 |
| 92173B |
92173-1586 |
CLAMP,A/C CASE,FR Price: $5.61 |
