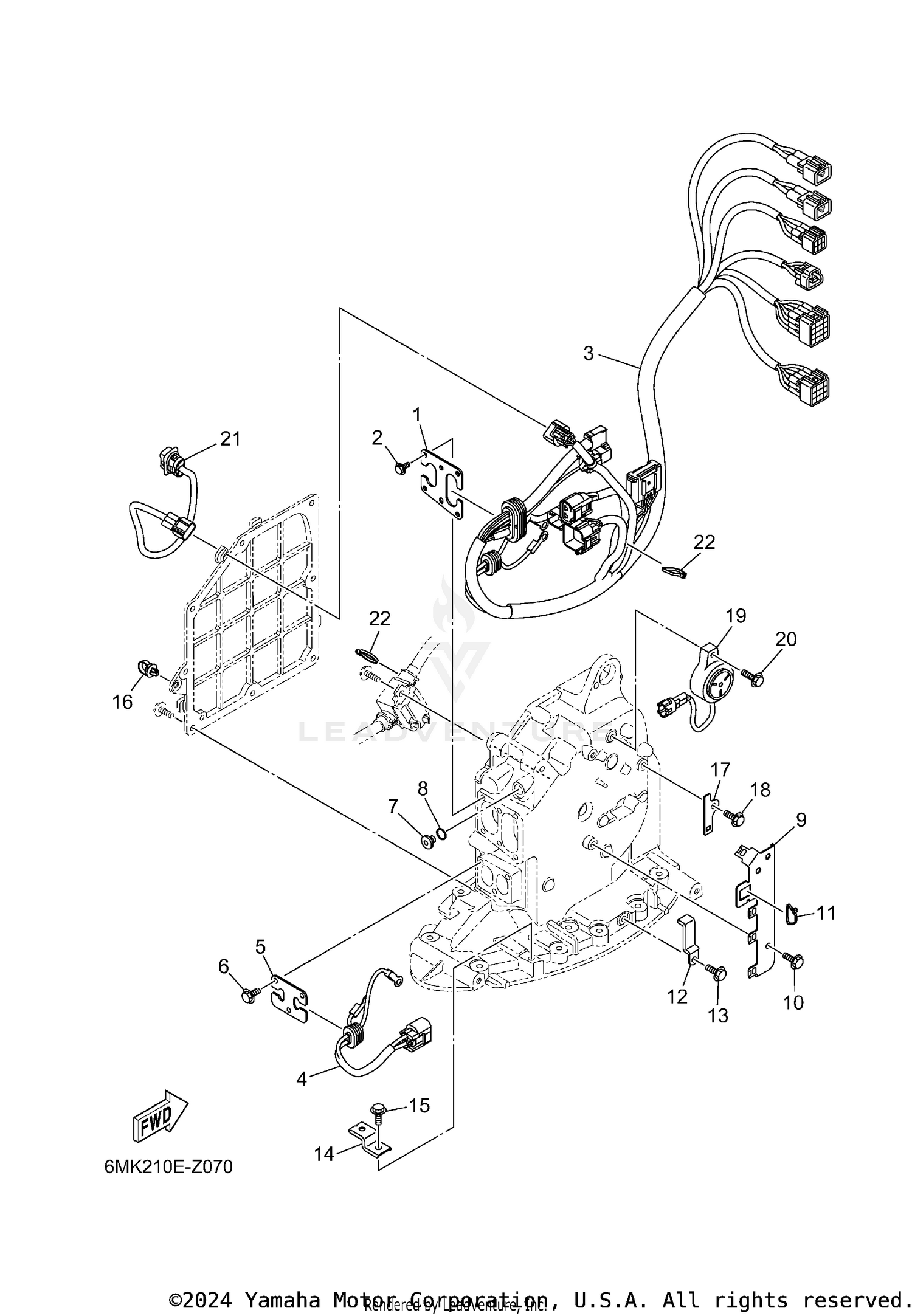

ELECTRICAL 2
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6MK-82388-10-00 | PLATE Price: $4.75 |
| 2 | 97595-05512-00 | BOLT, WITH WASHER Price: $1.40 |
| 3 | 6MK-82590-10-00 | WIRE HARNESS ASSY Price: $550.10 |
| 4 | 6MK-82553-00-00 | WIRE LEAD, EXTENSION Price: $48.70 |
| 5 | 6MK-82388-00-00 | PLATE Price: $4.25 |
| 6 | 97595-05512-00 | BOLT, WITH WASHER Price: $1.40 |
| 7 | 90340-08003-00 | PLUG, STRAIGHT SCREW Price: $4.40 |
| 8 | 93210-09350-00 | O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 9 | 6MK-68368-00-00 | CLAMP Price: $11.65 |
| 10 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 11 | 90465-11M59-00 | CLAMP Price: $7.10 |
| 12 | 90462-20005-00 | CLAMP Price: $15.40 |
| 13 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 14 | 6DA-82388-00-00 | PLATE Price: $4.20 |
| 15 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 16 | 90464-36007-00 | CLAMP Price: $0.40 |
| 17 | 6MK-67879-00-00 | STAY Price: $3.25 |
| 18 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 19 | 6KA-83383-01-00 | BUZZER Price: $54.15 |
| 20 | 90119-05M04-00 | BOLT, WITH WASHER Price: $8.15 |
| 21 | 6GR-82563-00-00 | TRIM & TILT SWITCH A Price: $72.55 |
