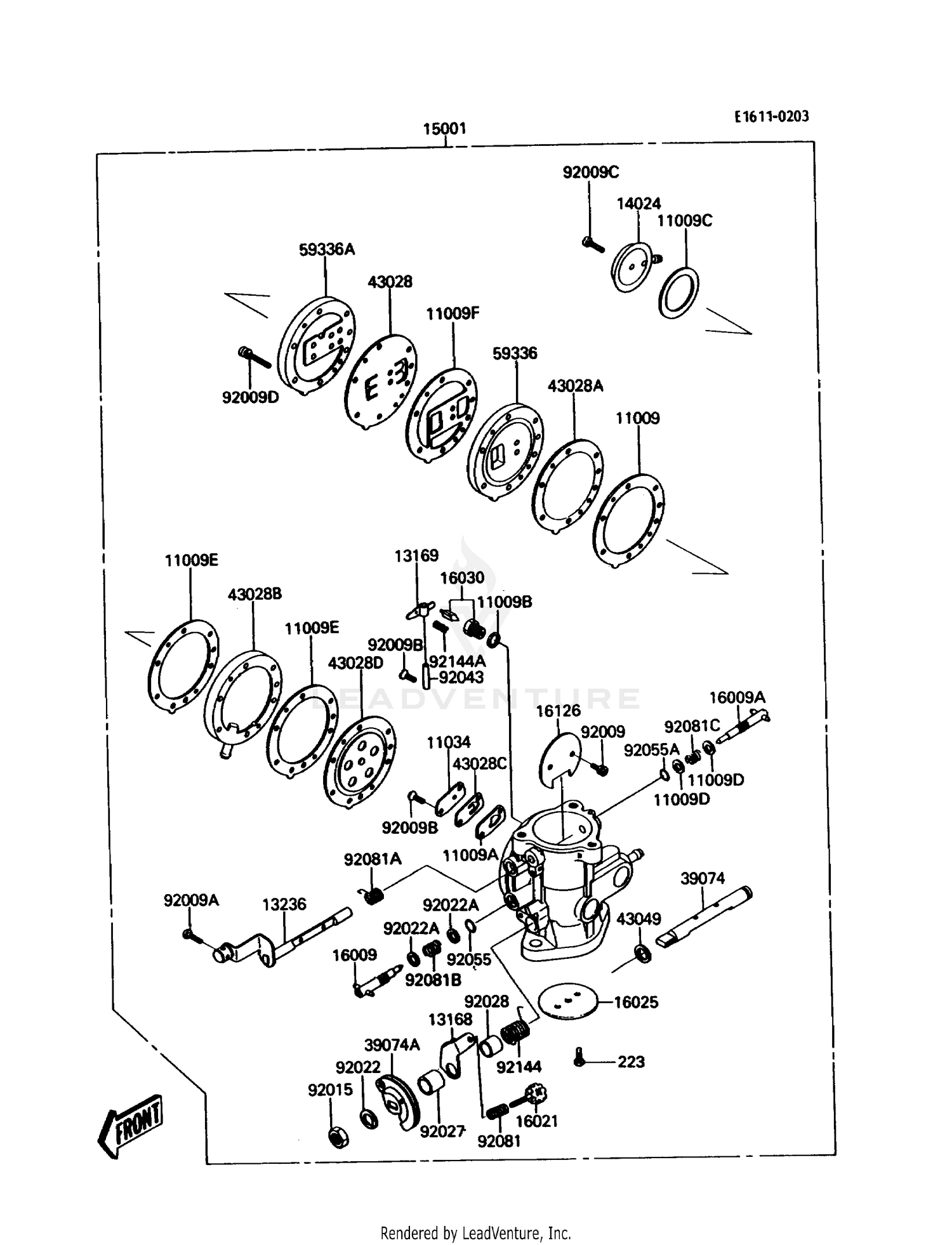

| Ref | Part Number | Description |
|---|
| 11009 |
11009-3036 |
GASKET Price: $10.83 |
| 11009A |
11060-3749 |
GASKET This part replaces 11009-3734. Price: $6.89 |
| 11009B |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 11009C |
92065-526 |
GASKET Price: $15.19 |
| 11009D |
92065-528 |
WASHER Price: $2.18 |
| 11009E |
11060-3704 |
GASKET This part replaces 92065-531. Price: $10.87 |
| 11009F |
11060-3705 |
GASKET This part replaces 92065-532. Price: $11.12 |
| 11034 |
59086-541 |
PLATE-CARB. SIDE Price: $14.92 |
| 13168 |
13168-3703 |
LEVER,THROTTLE SHAFT Price: $15.53 |
| 13169 |
59001-506 |
ARM Price: $17.93 |
| 13236 |
13236-3701 |
LEVER-COMP,CHOKE Price: $101.23 |
| 14024 |
14024-3721 |
COVER,CARBURETOR Price: $17.67 |
| 15001 |
15001-3728 |
CARBURETOR-ASSY This part replaces 15001-3703. Price: $312.78 |
| 16009 |
16009-2092 |
NEEDLE-JET,PILOT SCRE Price: $42.18 |
| 16009A |
16009-3002 |
SCREW,HIGH SPEED Price: $24.34 |
| 16021 |
13320-3701 |
LEVER-ASSY,THROTTLE This part replaces 16021-3701. Price: $64.53 |
| 16025 |
16025-3702 |
VALVE-THROTTLE,#140 Price: $20.97 |
| 16030 |
16030-3702 |
VALVE-FLOAT,#1.8 Price: $63.92 |
| 16126 |
16126-3701 |
VALVE,CHOKE Price: $15.55 |
| 39074 |
39074-3703 |
LEVER-ASSY-THROTTLE,S Price: $75.84 |
| 39074A |
39074-3704 |
LEVER-ASSY-THROTTLE,T Price: $45.84 |
| 43028 |
43028-3001 |
DIAPHRAGM,PUMP Price: $10.48 |
| 43028A |
43028-3002 |
DIAPHRAGM,PUMP Price: $10.48 |
| 43028B |
43028-3701 |
DIAPHRAGM,PUMP Price: $127.58 |
| 43028C |
51069-501 |
DIAPHRAGM,CHECK SEAT Price: $9.65 |
| 43028D |
51069-502 |
DIAPHRAGM,MAIN Price: $8.87 |
| 43049 |
43049-3702 |
PACKING Price: $6.48 |
| 59336 |
59336-3002 |
BODY,DIAPHRAGM(2) Price: $95.87 |
| 59336A |
59336-3003 |
BODY,DIAPHRAGM(3) Price: $77.43 |
| 92009 |
92009-3704 |
SCREW,CHOKE VALVE Price: $3.42 |
| 92009A |
92009-3705 |
SCREW,CHOKE LEVER Price: $3.34 |
| 92009B |
92009-3714 |
SCREW Price: $2.42 |
| 92009C |
92011-510 |
SCREW 4X12 Price: $7.65 |
| 92009D |
92011-515 |
SCREW 4X30 Price: $4.40 |
| 92015 |
92015-3717 |
NUT,THROTTLE LEVER Price: $6.41 |
| 92022 |
92022-3722 |
WASHER,THROTTLE LEVER Price: $4.18 |
| 92022A |
92022-537 |
WASHER Price: $4.53 |
| 92027 |
92027-3709 |
COLLAR,THROTTLE SHAFT Price: $29.41 |
| 92028 |
92028-514 |
BUSHING,THRTLE SHAFT Price: $26.24 |
| 92043 |
16032-006 |
FLOAT PIN Price: $7.29 |
| 92081 |
16040-022 |
SPRING,CABLE PULLY Price: $9.72 |
| 92081A |
92081-3705 |
SPRING,CHOKE SHAFT Price: $19.60 |
| 92081B |
92081-528 |
SPRING Price: $6.22 |
| 92081C |
92081-534 |
SPRING Price: $6.22 |
| 92144 |
99996-1116 |
SPRING/BUSHING SET This part replaces 92144-3707. Price: $32.28 |
| 92144A |
92144-3709 |
SPRING Price: $15.55 |
