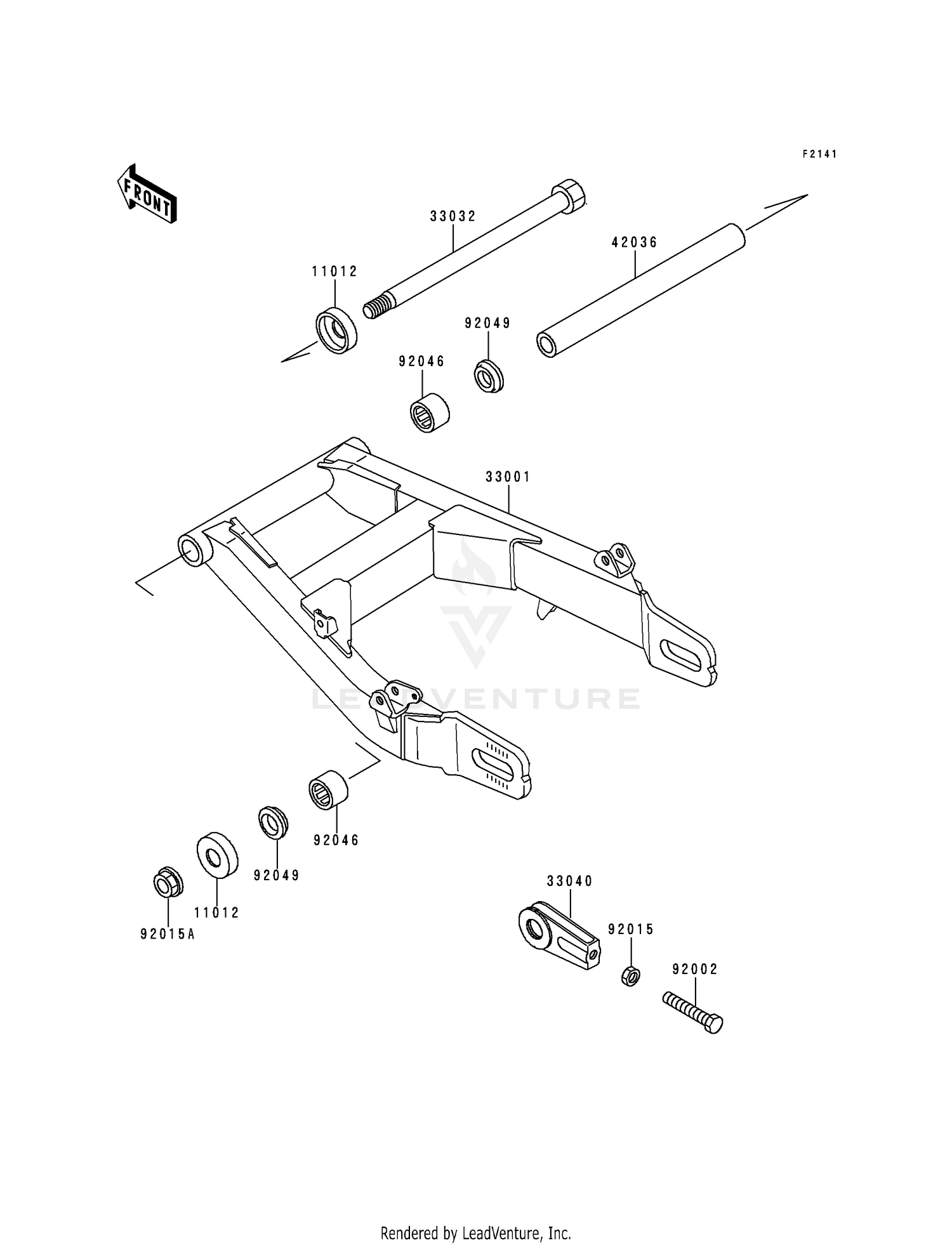

SWINGARM
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 11012-1029 | CAP,SWING ARM Price: $20.99 |
| 33001 | 33001-1352-10 | ARM-COMP-SWING,BLACK Price: $403.14 |
| 33032 | 33032-1113 | SHAFT-SWING ARM Price: $55.44 |
| 33040 | 33040-1004 | ADJUSTER-CHAIN This part replaces 33040-043. Price: $28.47 |
| 42036 | 42036-1018 | SLEEVE,SWING ARM Price: $52.33 |
| 92002 | 92002-1076 | BOLT,8X50 Price: $9.48 |
| 92015 | 92015-1364 | NUT,8MM Price: $3.92 |
| 92015A | 92015-1411 | NUT,14MM Price: $10.02 |
| 92046 | 92046-1115 | BEARING-NEEDLE,HK2216 Price: $20.02 |
