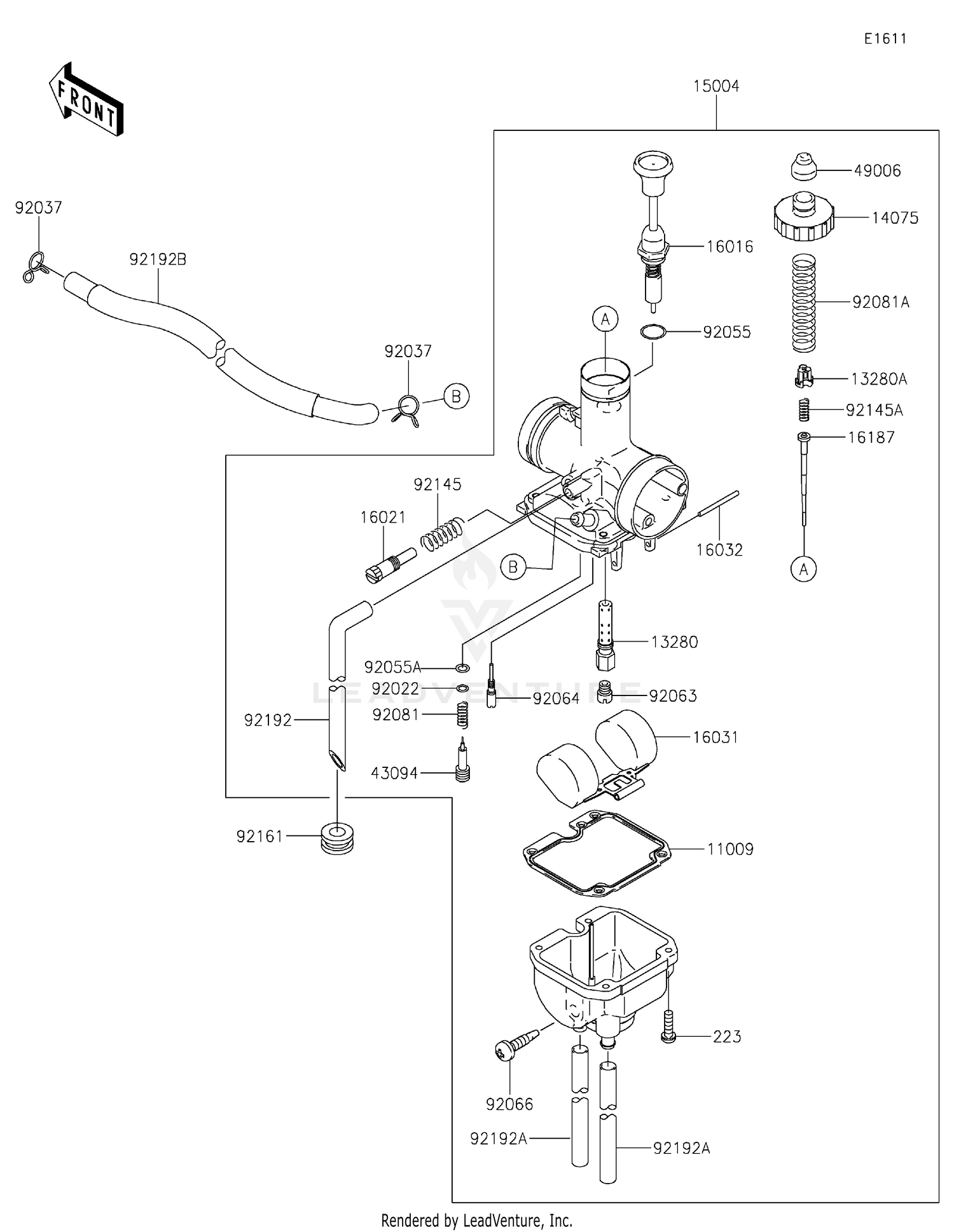

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1676 |
GASKET,FLOAT CHAMBER Price: $17.74 |
| 13280 |
13280-0065 |
HOLDER,JET Price: $19.26 |
| 13280A |
13280-0901 |
HOLDER Price: $2.68 |
| 14075 |
14075-0003 |
CAP-ASSY Price: $16.28 |
| 15004 |
15004-1055 |
CARBURETOR-ASSY This part replaces 15004-1000. Price: $606.30 |
| 16016 |
16016-0011 |
PLUNGER Price: $58.93 |
| 16021 |
16021-1126 |
SCREW-THROTTLE STOP Price: $16.18 |
| 16031 |
16031-1055 |
FLOAT Price: $53.59 |
| 16032 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 16187 |
16187-0578 |
NEEDLE-JET Price: $26.41 |
| 43094 |
43094-0001 |
ADJUSTER Price: $21.89 |
| 49006 |
49006-1203 |
BOOT,STARTER PLUNGER Price: $14.10 |
| 92022 |
92022-1187 |
WASHER,ADJUST SCREW Price: $6.22 |
| 92037 |
92037-1712 |
CLAMP Price: $5.00 |
| 92055 |
92055-1252 |
RING-O,STARTER PLUNGER Price: $5.29 |
| 92055A |
92055-1658 |
RING-O,AIR SCREW Price: $6.00 |
| 92063 |
92063-1031 |
JET-MAIN,#A95R Price: $14.34 |
| 92064 |
92064-0025 |
JET-PILOT Price: $39.54 |
| 92066 |
92066-0050 |
PLUG,DRAIN Price: $16.09 |
| 92081 |
92081-1690 |
SPRING,PILOT AIR SCREW Price: $6.16 |
| 92081A |
92081-1691 |
SPRING,THROTTLE VALVE Price: $14.10 |
| 92145 |
92145-1559 |
SPRING Price: $2.42 |
| 92145A |
92145-1786 |
SPRING Price: $1.93 |
| 92161 |
92161-0031 |
DAMPER Price: $0.67 |
| 92192 |
92192-1065 |
TUBE Price: $8.90 |
| 92192A |
92192-1066 |
TUBE Price: $8.90 |
| 92192B |
92192-1780 |
TUBE,TAP ASSY-CARBURETOR Price: $20.87 |
