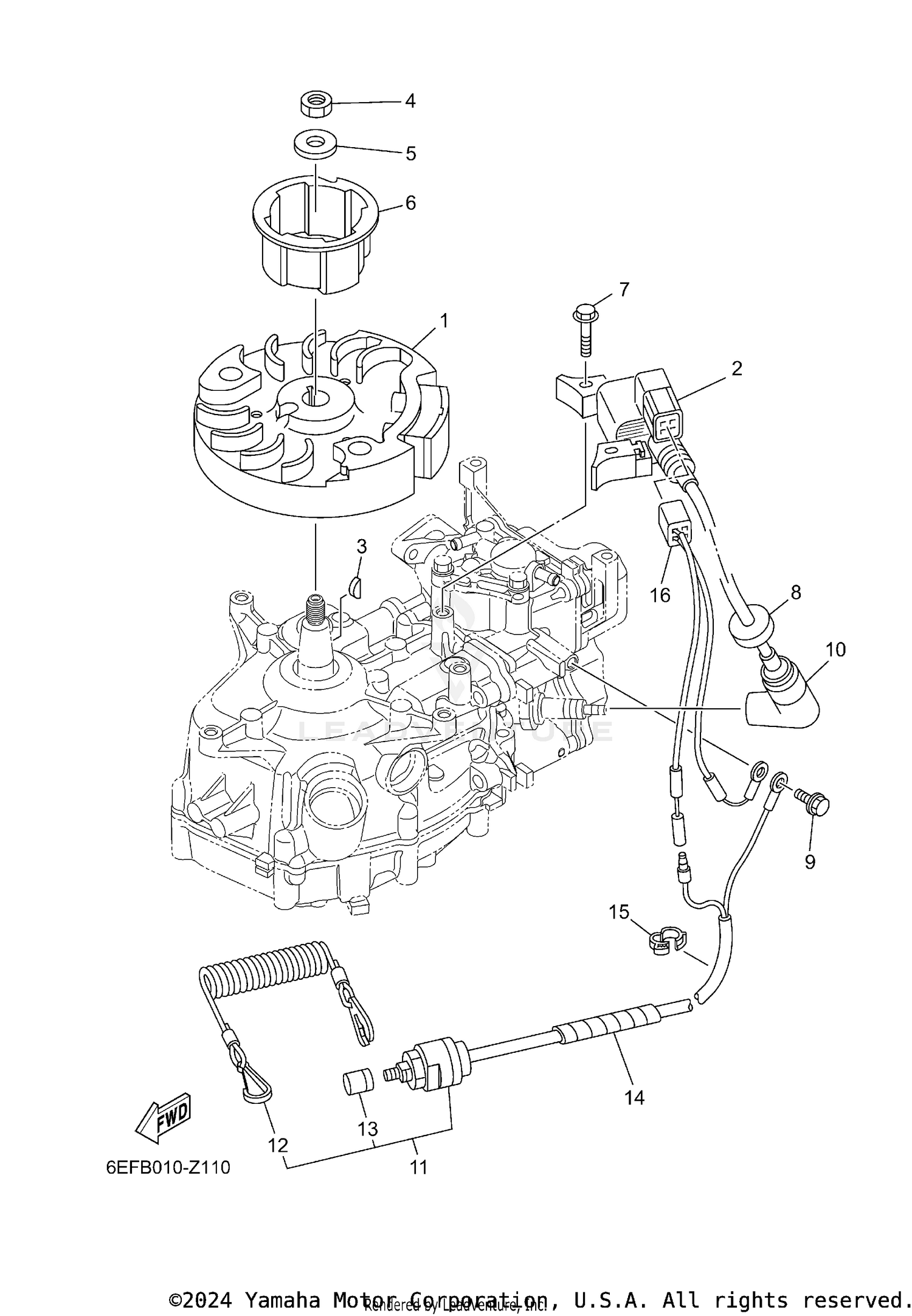

GENERATOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6EG-85550-00-00 | ROTOR ASSY Price: $214.15 |
| 2 | 6EG-85571-00-00 | IGNITION COIL WITH CDI UNIT Price: $441.50 |
| 3 | 90280-04M06-00 | KEY, WOODRUFF Price: $6.75 |
| 4 | 90170-10M33-00 | NUT Price: $3.65 |
| 5 | 90201-105A2-00 | WASHER, PLATE Price: $9.49 |
| 6 | 69M-15723-00-00 | PULLEY, STARTER Price: $13.25 |
| 7 | 90105-06M24-00 | BOLT, FLANGE Price: $2.30 |
| 8 | 90480-25161-00 | GROMMET Price: $5.35 |
| 9 | 97E95-06512-00 | BOLT, HEXAGON W/W Price: $2.05 |
| 10 | 6BX-82370-00-00 | PLUG CAP ASSY Price: $48.25 |
| 11 | 65W-82575-01-00 | ENGINE STOP SWITCH ASSY Price: $78.50 |
| 12 | 682-82556-00-00 | LANYARD, STOP SWITCH Price: $8.20 |
| 13 | 689-8257Y-00-00 | CAP Price: $9.05 |
| 14 | 90446-06M90-00 | HOSE (L120) Price: $6.60 |
| 15 | 90464-16003-00 | CLAMP Price: $7.60 |
