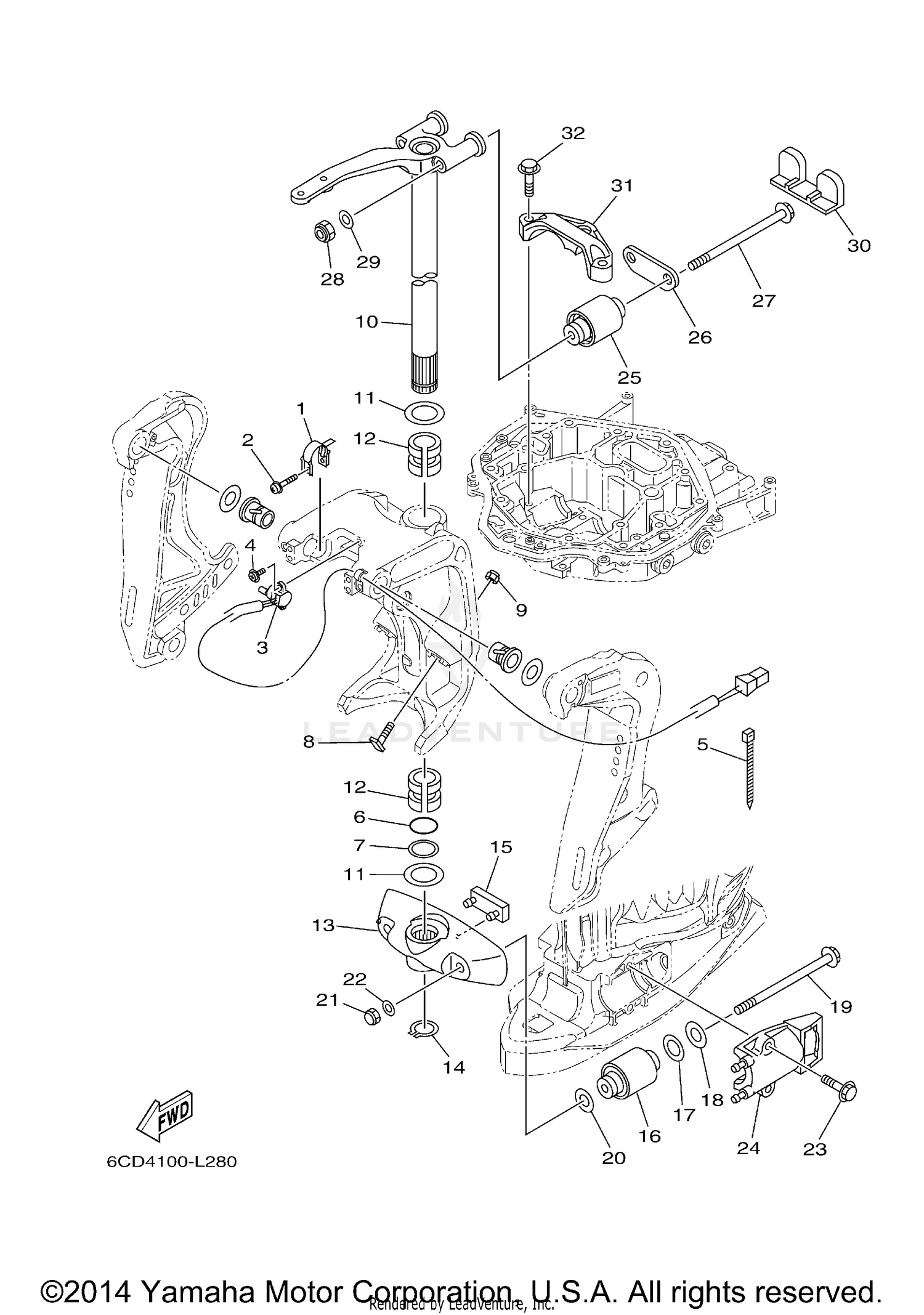

| Ref | Part Number | Description |
|---|
| 1 |
64E-43139-11-00 |
CAM, TRIM SENDER This part replaces 64E-43139-10-00. Price: $17.90 |
| 2 |
90159-05059-00 |
SCREW, WITH WASHER Price: $3.55 |
| 3 |
67H-83672-03-00 |
TRIM SENDER This part replaces 67H-83672-01-00. Price: $178.99 |
| 4 |
97985-06216-00 |
SCREW, WITH WASHER Price: $3.20 |
| 5 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 6 |
93210-37MH7-00 |
O-RING Price: $6.40 |
| 7 |
90202-40M47-00 |
WASHER, PLATE Price: $9.10 |
| 8 |
64E-43376-00-00 |
BOLT, THRUST RECEIVER Price: $40.25 |
| 9 |
95780-10300-00 |
NUT, FLANGE Price: $13.00 |
| 10 |
6CB-42510-00-8D |
STEERING BRACKET ASSY Price: $632.15 |
| 11 |
90201-38M60-00 |
WASHER, PLATE Price: $8.10 |
| 12 |
90386-38M89-00 |
BUSH Price: $46.25 |
| 13 |
6CB-44551-01-8D |
HOUSING, LOWER MOUNT RUBBER 1 Price: $206.30 |
| 14 |
93410-36102-00 |
CIRCLIP This part replaces 93410-37M04-00. Price: $10.40 |
| 15 |
6E5-44575-01-00 |
DAMPER, LOWER MOUNT RUBBER This part replaces 6E5-44575-00-00. Price: $6.60 |
| 16 |
60X-44555-00-00 |
MOUNT DAMPER, LOWER SIDE Price: $155.75 |
| 17 |
90202-32M19-00 |
WASHER, PLATE Price: $10.40 |
| 18 |
90201-16M55-00 |
WASHER, PLATE Price: $14.45 |
| 19 |
90105-14007-00 |
BOLT, FLANGE Price: $49.80 |
| 20 |
90201-15M58-00 |
WASHER, PLATE Price: $12.70 |
| 21 |
95380-14800-00 |
NUT Price: $13.75 |
| 22 |
92990-14600-00 |
WASHER This part replaces 92995-14600-00. Price: $7.20 |
| 23 |
90119-10024-00 |
BOLT, WITH WASHER Price: $10.40 |
| 24 |
61A-44552-01-CA |
HOUSING, LOWER MOUNT RUBBER 2 Price: $116.05 |
| 25 |
6CB-44514-00-00 |
MOUNT DAMPER, UPPER SIDE Price: $128.65 |
| 26 |
6CB-44526-00-00 |
PLATE Price: $15.05 |
| 27 |
90105-14007-00 |
BOLT, FLANGE Price: $49.80 |
| 28 |
90185-14M00-00 |
NUT, SELF-LOCKING Price: $18.45 |
| 29 |
92990-14600-00 |
WASHER This part replaces 92995-14600-00. Price: $7.20 |
| 30 |
6CB-44533-01-00 |
DAMPER, UPPER MOUNT RUBBER This part replaces 6CB-44533-00-00. Price: $20.80 |
| 31 |
6CB-44511-00-00 |
COVER, UPPER MOUNT Price: $89.60 |
