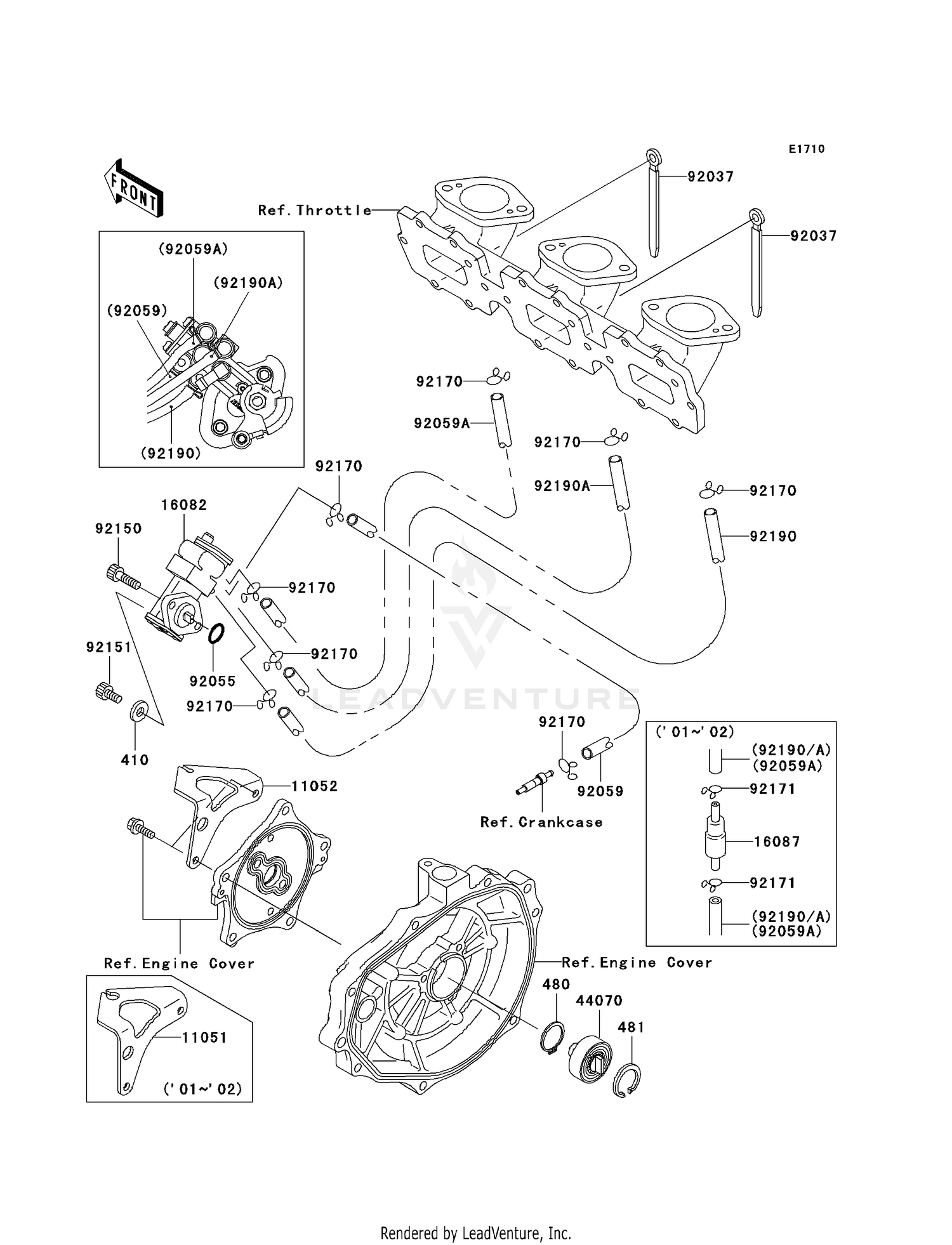

OIL PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 410 | 410S0500 | W-PLAIN-S,5MM Price: $1.59 |
| 480 | 480J1200 | CIRCLIP-TYPE-C,12MM Price: $0.62 |
| 481 | 481J3700 | CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 11052 | 11052-3764 | BRACKET,CABLE Price: $24.05 |
| 16082 | 16082-3730 | PUMP-ASSY-OIL Price: $364.36 |
| 44070 | 44070-3702 | DAMPER-ASSY Price: $201.61 |
| 92037 | 92037-3736 | CLAMP,L=100 Price: $5.52 |
| 92055 | 92055-055 | RING-O,19.5X1.5 Price: $4.31 |
| 92059 | 92059-3747 | TUBE Price: $8.41 |
| 92059A | 92190-3907 | TUBE This part replaces 92059-3755. Price: $25.81 |
| 92150 | 92150-3830 | BOLT,SOCKET,6X25 Price: $6.15 |
| 92151 | 92151-3772 | BOLT Price: $2.06 |
| 92170 | 92170-3750 | CLAMP Price: $4.78 |
| 92190 | 92190-3907 | TUBE Price: $25.81 |
