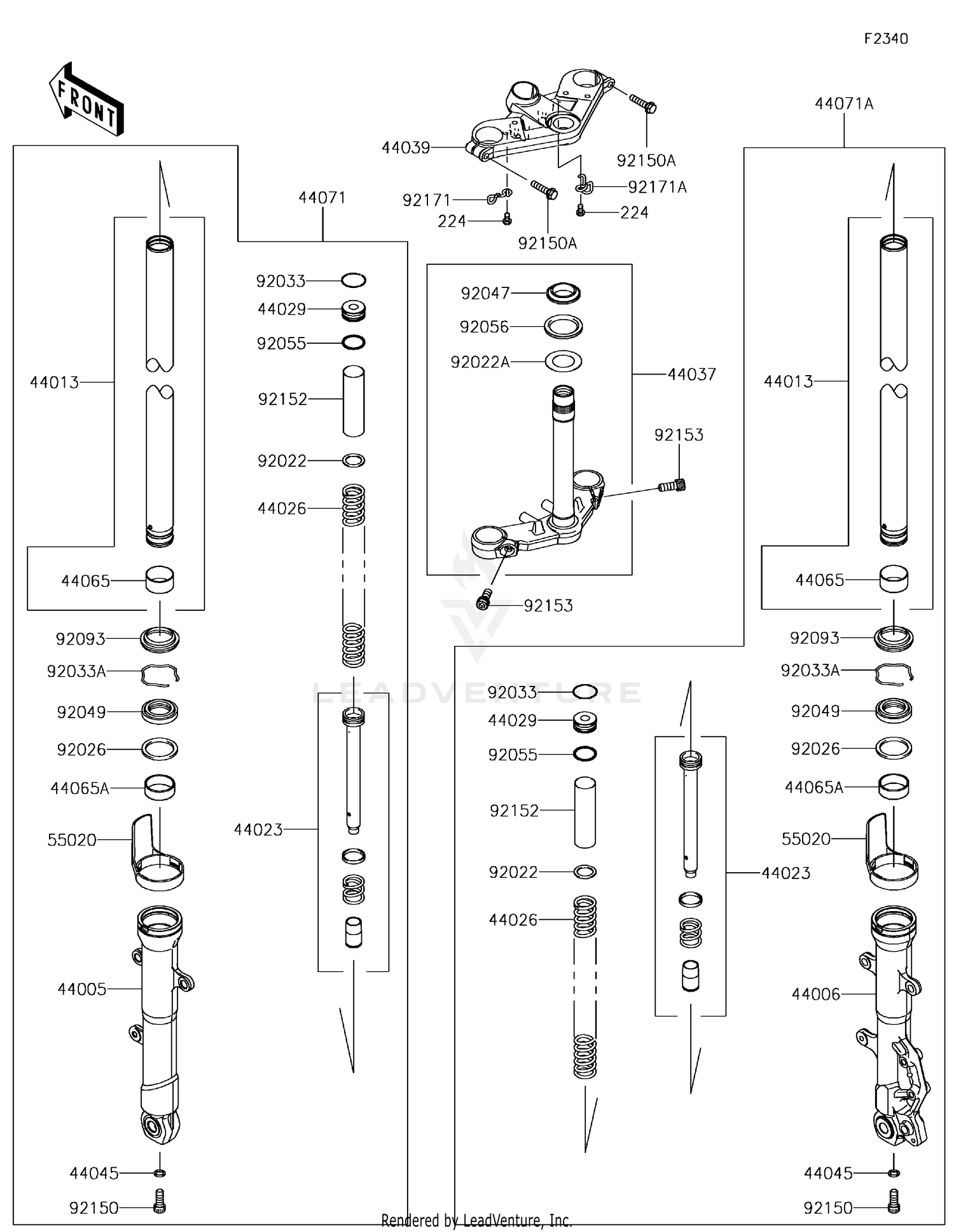

| Ref | Part Number | Description |
|---|
| 224 |
224AB0612 |
SCREW-PAN-WP-CROS,6X12 Price: $4.45 |
| 44005 |
44005-0102-18R |
PIPE-LEFT FORK OUTER, Price: $397.45 |
| 44006 |
44006-0103-18R |
PIPE-RIGHT FORK OUTER Price: $397.45 |
| 44013 |
44013-0248 |
PIPE-FORK INNER Price: $261.61 |
| 44023 |
44023-0123 |
CYLINDER-SET-FORK Price: $111.96 |
| 44026 |
44026-0126 |
SPRING-FRONT FORK Price: $39.80 |
| 44029 |
44029-1127 |
SEAT-FORK SPRING Price: $44.15 |
| 44037 |
44037-0154-21 |
HOLDER-FORK UNDER,F.B Price: $266.92 |
| 44039 |
44039-0056-18R |
HOLDER-FORK UPPER,BLA Price: $268.79 |
| 44045 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 44065 |
44065-0070 |
BUSHING-FRONT FORK This part replaces 44065-0057. Price: $12.18 |
| 44065A |
44065-0058 |
BUSHING-FRONT FORK Price: $25.48 |
| 44071 |
44071-1073-18R |
DAMPER-ASSY,LH,F.S.BL Price: $707.88 |
| 44071A |
44071-1075-18R |
DAMPER-ASSY,RH,F.S.BL Price: $707.88 |
| 55020 |
55020-0929 |
GUARD,INNER TUBE Price: $30.76 |
| 92022 |
92022-1879 |
WASHER Price: $5.00 |
| 92022A |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 92026 |
92026-1443 |
SPACER,FORK Price: $8.58 |
| 92033 |
92033-1236 |
RING-SNAP Price: $7.38 |
| 92033A |
92033-1286 |
RING-SNAP Price: $8.03 |
| 92047 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 92049 |
92049-0734 |
SEAL-OIL Price: $21.20 |
| 92055 |
92055-1384 |
RING-O,FORK SPRING SE Price: $5.00 |
| 92056 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 92093 |
92093-1367 |
SEAL,FORK OUTER Price: $21.57 |
| 92150 |
92150-1432 |
BOLT,SOCKET,8X18 Price: $9.91 |
| 92150A |
92150-1610 |
BOLT Price: $8.58 |
| 92152 |
92152-1957 |
COLLAR,SPG Price: $18.06 |
| 92153 |
92153-0301 |
BOLT,SOCKET,10X25 Price: $3.26 |
| 92171 |
92171-1857 |
CLAMP,LH Price: $3.90 |
