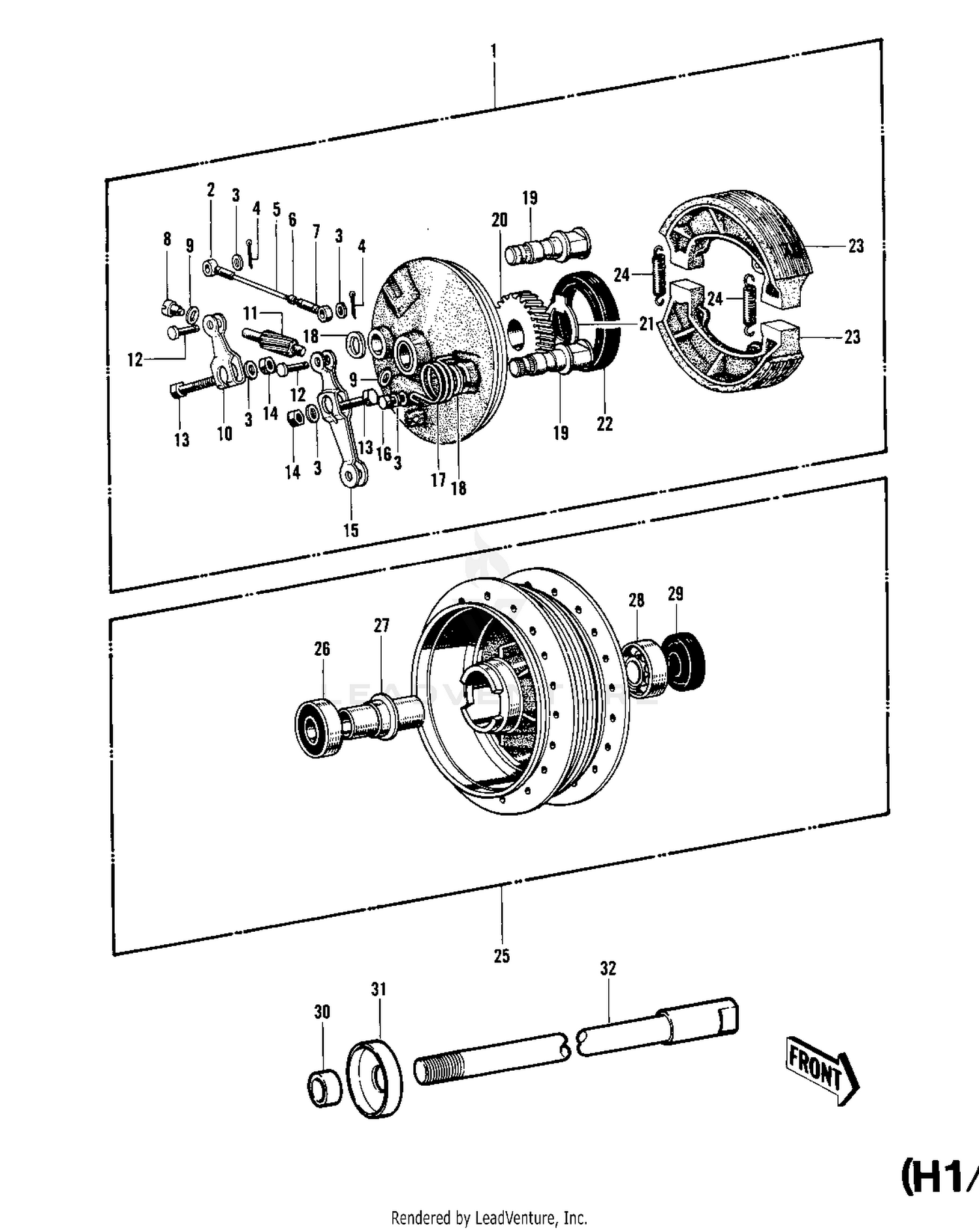

| Ref | Part Number | Description |
|---|
| 1 |
41035-018 |
PANEL-ASY,FR BRK Price: $183.25 |
| 2 |
41058-009 |
ROD END,BRK CONNECT Price: $14.49 |
| 3 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 4 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 5 |
41057-011 |
ROD BRK CAM LEV CONCT Price: $13.98 |
| 6 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
| 7 |
41058-008 |
ROD END,BRK CONNECT Price: $13.82 |
| 9 |
41063-003 |
WASHER PINION THRUST Price: $4.64 |
| 10 |
41053-012 |
LEVER FRT BRK CAM 2ND Price: $21.88 |
| 11 |
41060-009 |
PINION SPEEDOMETER Price: $24.82 |
| 12 |
41055-003 |
PIN BRAKE CONNECT ROD Price: $9.02 |
| 13 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 14 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 15 |
41053-011 |
LEVER FRT BRK CAM 1ST Price: $30.73 |
| 16 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 17 |
41056-003 |
SPRING BRAKE CAM LEV Price: $8.42 |
| 18 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 19 |
41050-007 |
CAM SHAFT FRONT BRAKE Price: $44.03 |
| 21 |
41064-005 |
RECIEVER SPEED GEAR Price: $7.19 |
| 22 |
92050-026 |
OIL SEAL Price: $19.23 |
| 23 |
41048-007 |
SHOE BRAKE Price: $60.44 |
| 24 |
41049-012 |
SPRING,BRAKE SHOE Price: $9.49 |
| 25 |
41034-013 |
DRUM-ASSY,FR BRK Price: $161.31 |
| 26 |
601B6303Z |
BEARING BALL #6303Z Price: $24.50 |
| 27 |
41039-015 |
SPACER FR HUB BEARING Price: $15.95 |
| 28 |
601B6303 |
BEARING-BALL,#6303C3 Price: $8.29 |
| 29 |
654A254708 |
OIL SEAL FRONT AXLE Price: $29.28 |
| 30 |
41069-009 |
COLLAR AXLE OIL SEAL Price: $10.17 |
| 31 |
41042-005 |
DUST SHIELD FRONT HUB Price: $3.65 |
