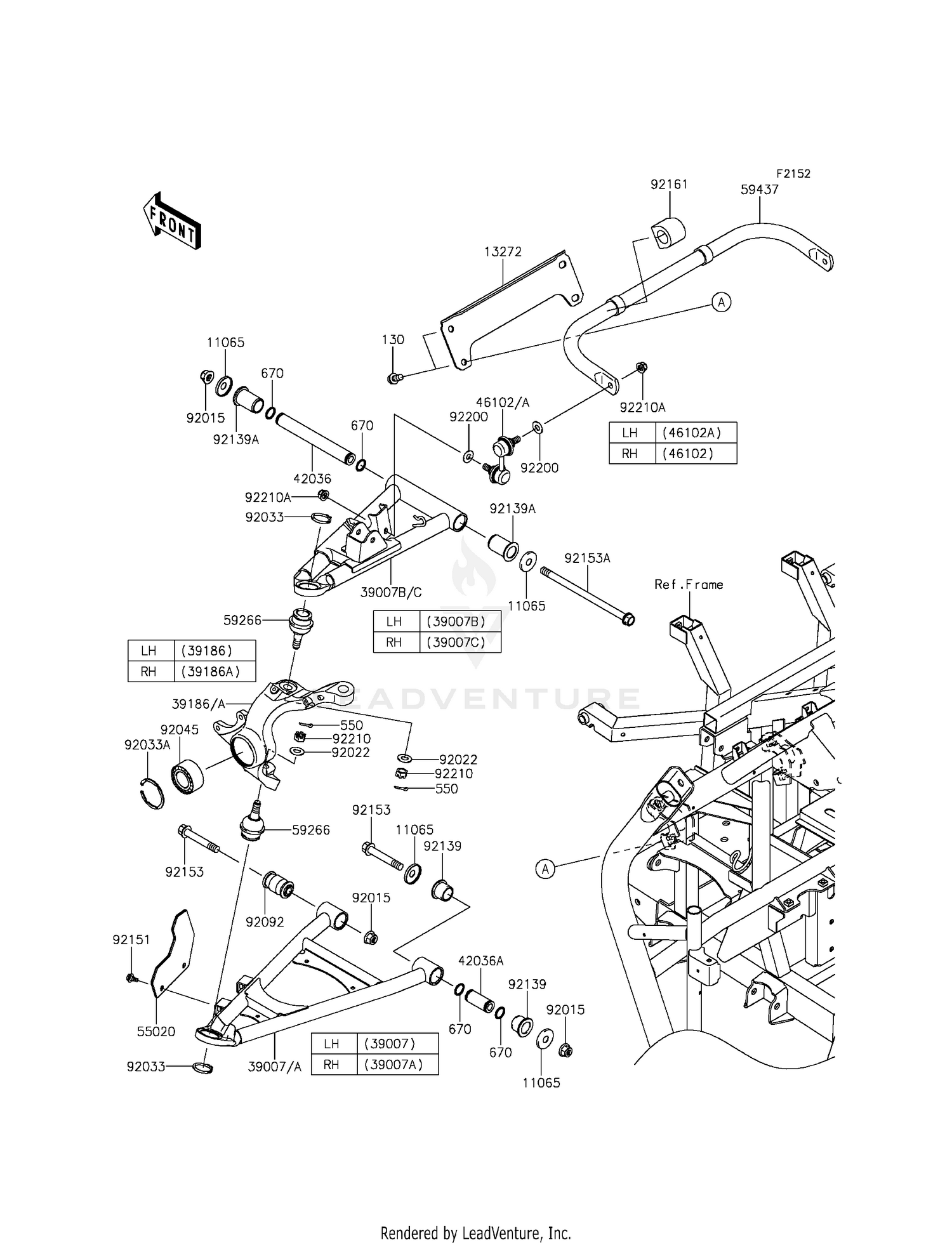

| Ref | Part Number | Description |
|---|
| 130 |
130CA1016 |
BOLT-FLANGED,10X16 Price: $3.35 |
| 550 |
550AA3025 |
PIN-COTTER,3.0X25 Price: $0.62 |
| 670 |
670B2018 |
O RING,18MM Price: $1.42 |
| 11065 |
11065-0253 |
CAP Price: $3.87 |
| 13272 |
13272-1650 |
PLATE Price: $48.88 |
| 39007 |
39007-0389-10 |
ARM-SUSP,FR,LWR,LH,BLACK This part replaces 39007-0364-10. Price: $115.46 |
| 39007A |
39007-0390-10 |
ARM-SUSP,FR,LWR,RH,BLACK This part replaces 39007-0365-10. Price: $115.46 |
| 39007B |
39007-0367-10 |
ARM-SUSP,FR,UPP,LH,BLACK Price: $139.74 |
| 39007C |
39007-0368-10 |
ARM-SUSP,FR,UPP,RH,BLACK Price: $139.74 |
| 39186 |
39186-0311 |
KNUCKLE,FR,LH Price: $190.27 |
| 39186A |
39186-0312 |
KNUCKLE,FR,RH Price: $190.27 |
| 42036 |
42036-0061 |
SLEEVE Price: $46.79 |
| 42036A |
42036-0062 |
SLEEVE Price: $23.84 |
| 46102 |
46102-0100 |
ROD,STABILIZER Price: $48.58 |
| 46102A |
46102-0101 |
ROD,STABILIZER,LH Price: $48.58 |
| 55020 |
55020-0839 |
GUARD,FRONT ARM Price: $14.43 |
| 59266 |
59266-0014 |
JOINT-BALL Price: $72.37 |
| 59437 |
59437-0032 |
STABILIZER,FR This part replaces 59437-0010. Price: $112.69 |
| 92015 |
92015-1433 |
NUT,LOCK,FLANGED,12MM Price: $8.86 |
| 92022 |
92022-1831 |
WASHER Price: $5.52 |
| 92033 |
92033-1262 |
RING-SNAP,C-TYPE,32MM Price: $6.41 |
| 92033A |
92033-1274 |
RING-SNAP,55MM Price: $9.43 |
| 92045 |
92045-0800 |
BEARING-BALL,30X55X32 This part replaces 92045-0123. Price: $34.89 |
| 92092 |
92092-0555 |
BUSHING-RUBBER Price: $19.13 |
| 92139 |
92139-0231 |
BUSHING Price: $7.69 |
| 92139A |
92139-0806 |
BUSHING,22.4X28.2X46 Price: $8.22 |
| 92151 |
92151-1703 |
BOLT,FLANGED,6X13 Price: $3.94 |
| 92153 |
92153-1733 |
BOLT,FLANGED,12X76.5 Price: $7.75 |
| 92153A |
92153-1958 |
BOLT,FLANGED,12X213 Price: $20.37 |
| 92161 |
92161-1508 |
DAMPER Price: $5.10 |
| 92200 |
92200-2009 |
WASHER,10.3X23X1.6 Price: $1.35 |
| 92210 |
92210-0395 |
NUT,CASTLE,12MM Price: $3.86 |
