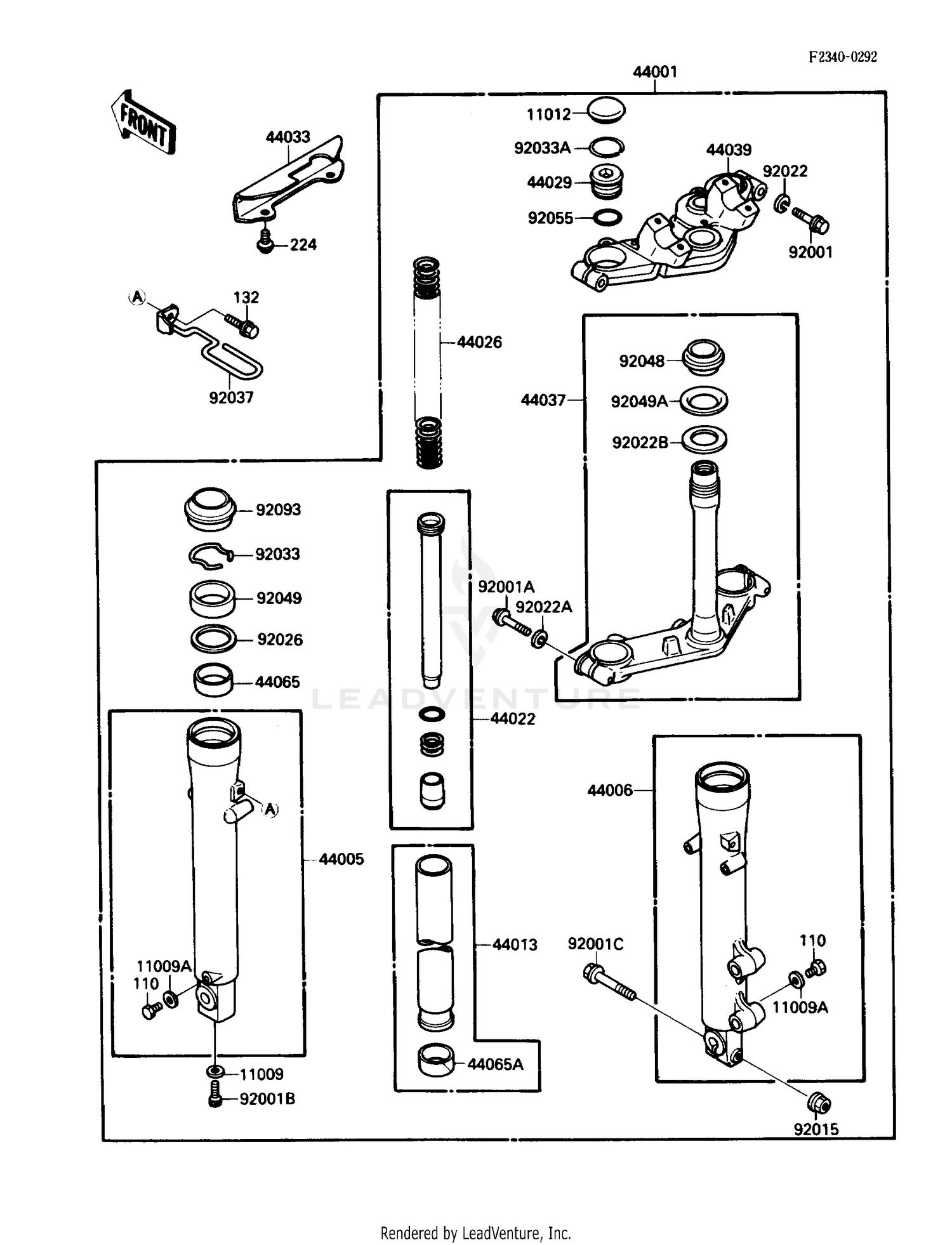

| Ref | Part Number | Description |
|---|
| 110 |
110B0608 |
BOLT HEX HEAD 6X8 Price: $0.34 |
| 132 |
132E0610 |
BOLT-FLANGED-SMALL Price: $4.69 |
| 11009 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11009A |
44045-052 |
GASKET,DRAIN PLUG Price: $6.10 |
| 11012 |
11012-1620 |
CAP,FORK TOP Price: $9.55 |
| 44001 |
44001-1676 |
FORK-FRONT Price: $1,444.16 |
| 44005 |
44005-1266 |
PIPE-LEFT FORK OUTER Price: $315.55 |
| 44006 |
44006-1263 |
PIPE-RIGHT FORK OUTER Price: $345.81 |
| 44013 |
44013-1270 |
PIPE-FORK INNER Price: $248.02 |
| 44022 |
44022-1217 |
CYLINDER-FORK Price: $93.15 |
| 44026 |
44026-1374 |
SPRING-FRONT FORK Price: $32.51 |
| 44029 |
44029-1124 |
SEAT-FORK SPRING Price: $41.44 |
| 44033 |
44033-1177 |
COVER-FORK,UNDER BRAC Price: $19.90 |
| 44037 |
44037-1244 |
HOLDER-FORK UNDER This part replaces 44037-1222. Price: $295.24 |
| 44039 |
44039-1165 |
HOLDER-FORK UPPER Price: $212.70 |
| 44065 |
44065-1068 |
BUSHING-FRONT FORK Price: $24.34 |
| 44065A |
44065-1069 |
BUSHING-FRONT FORK,IN Price: $26.65 |
| 92001 |
92001-1063 |
BOLT,HEX HEAD,8X40 Price: $9.63 |
| 92001A |
92001-1454 |
BOLT Price: $9.63 |
| 92001B |
92001-1464 |
BOLT,FORK CYLINDER Price: $6.22 |
| 92001C |
92001-1486 |
BOLT,FLANGED,8X50 Price: $11.49 |
| 92015 |
92015-1398 |
NUT,8MM This part replaces 92015-1055. Price: $4.80 |
| 92022 |
92022-1703 |
WASHER,SPRING,8MM Price: $3.42 |
| 92022A |
92022-1704 |
WASHER,SPRING,10MM Price: $3.42 |
| 92022B |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 92026 |
92026-1038 |
SPACER,FORK Price: $9.58 |
| 92033 |
92033-1193 |
RING-SNAP,FORK This part replaces 92033-1219. Price: $6.33 |
| 92033A |
92033-1220 |
RING-SNAP,FORK TOP Price: $9.24 |
| 92037 |
92037-1922 |
CLAMP,CABLE Price: $18.13 |
| 92048 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 92049 |
92049-1226 |
SEAL-OIL,FORK Price: $22.14 |
| 92049A |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 92055 |
92055-1359 |
RING-O,FORK SPRING SE Price: $9.33 |
| 92093 |
92093-1196 |
SEAL,FORK Price: $24.34 |
