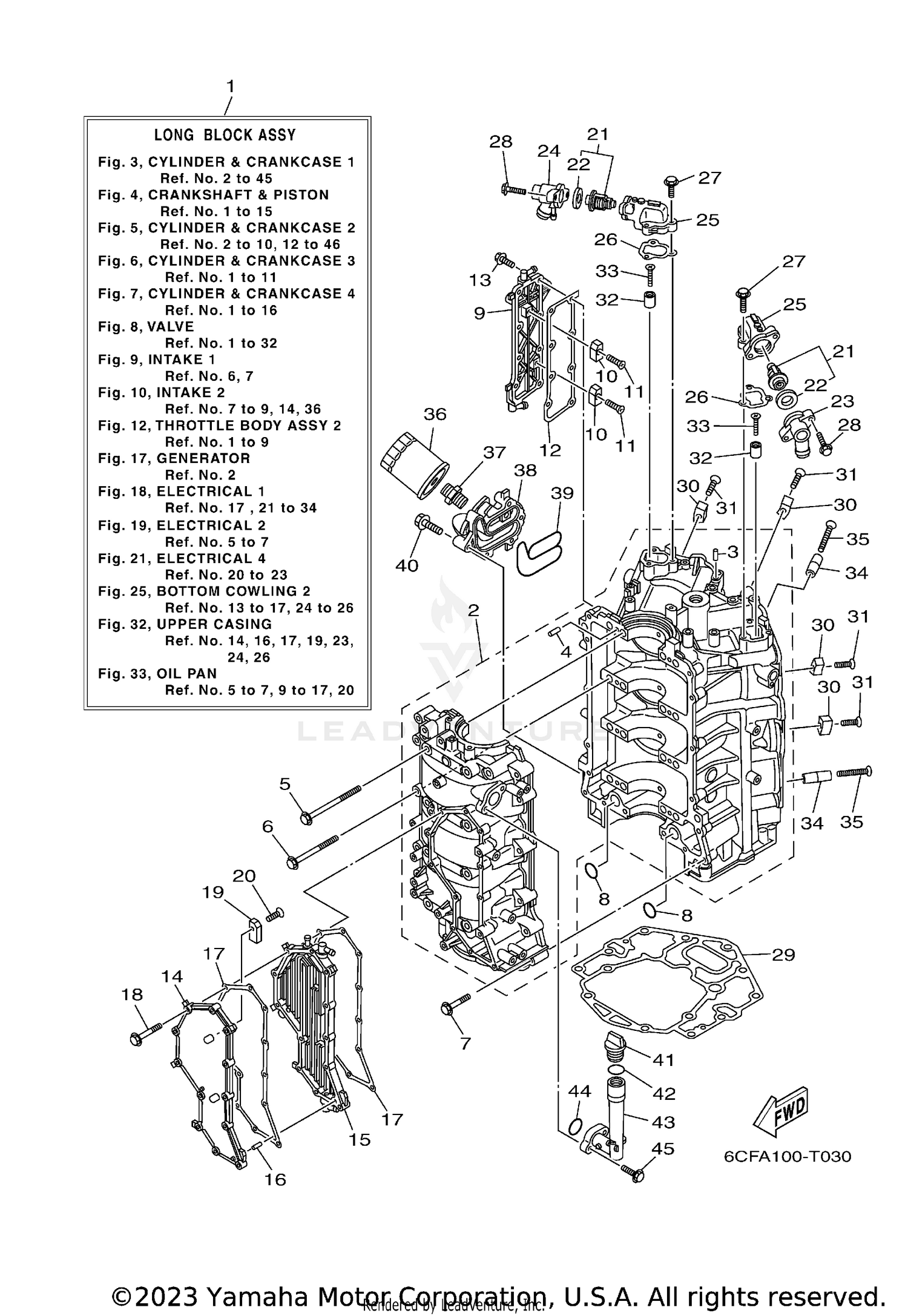

| Ref | Part Number | Description |
|---|
| 1 |
6KA-11000-01-00 |
LONG BLOCK ASSY This part replaces 6CE-11000-03-00. Price: $15,443.20 |
| 2 |
99999-04121-00 |
CRANKCASE & PLATE SE This part replaces 6CE-15100-10-00. Price: $4,385.20 |
| 3 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 4 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 5 |
6CB-15187-00-00 |
BOLT Price: $11.90 |
| 6 |
6CB-15481-00-00 |
BOLT 1 Price: $13.00 |
| 7 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 8 |
93210-26658-00 |
O-RING Price: $8.49 |
| 9 |
6CE-1131C-00-9S |
COVER, JOINT Price: $89.40 |
| 10 |
63P-11325-01-00 |
ANODE Price: $10.55 |
| 11 |
90151-06M02-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 13 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 14 |
6CE-15411-00-9S |
COVER, CRANKCASE 1 Price: $148.75 |
| 15 |
6CE-15421-10-9S |
COVER, CRANKCASE 2 Price: $187.35 |
| 16 |
91690-40010-00 |
PIN, SPRING Price: $5.50 |
| 17 |
6CB-15451-01-00 |
GASKET, CRANKCASE CO Price: $31.80 |
| 18 |
90105-06151-00 |
BOLT, FLANGE Price: $4.60 |
| 19 |
63P-11325-01-00 |
ANODE Price: $10.55 |
| 20 |
90151-06M02-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 21 |
6CE-12411-00-00 |
THERMOSTAT Price: $52.40 |
| 22 |
67F-12412-00-00 |
SEAL, THERMOSTAT Price: $8.20 |
| 23 |
6CE-12413-G0-9S |
COVER , THERMOSTAT This part replaces 6CE-12413-B0-9S. Price: $42.99 |
| 24 |
6CE-12413-F0-9S |
COVER, THERMOSTAT This part replaces 6CE-12413-A0-9S. Price: $54.99 |
| 25 |
6CB-12422-10-9S |
COVER, HOUSING Price: $75.40 |
| 26 |
6CB-12427-11-00 |
GASKET, HOUSING COVE Price: $5.95 |
| 27 |
95027-06025-00 |
BOLT, FLANGE Price: $4.16 |
| 28 |
90105-06037-00 |
BOLT, FLANGE Price: $3.20 |
| 29 |
6KA-11351-00-00 |
GASKET, CYLINDER This part replaces 6CB-11351-00-00. Price: $113.50 |
| 30 |
6AW-1132P-00-00 |
ANODE 5 Price: $31.80 |
| 31 |
98780-06530-00 |
SCREW, FLAT HEAD Price: $6.49 |
| 32 |
68T-11325-00-00 |
ANODE Price: $11.50 |
| 33 |
90151-05M05-00 |
SCREW, COUNTERSUNK Price: $3.20 |
| 34 |
6AW-1132N-01-00 |
ANODE 4 Price: $32.75 |
| 35 |
98780-06550-00 |
SCREW, FLAT HEAD Price: $3.65 |
| 36 |
N26-13440-04-00 |
ELEMENT ASSY, OIL This part replaces N26-13440-02-00. Price: $26.90 |
| 37 |
90401-19001-00 |
BOLT, UNION Price: $21.85 |
| 38 |
6CE-13446-10-9S |
CONNECTOR Price: $147.85 |
| 39 |
6CB-13477-00-00 |
GASKET Price: $14.75 |
| 40 |
90105-06151-00 |
BOLT, FLANGE Price: $4.60 |
| 41 |
6G8-15363-00-00 |
PLUG, OIL Price: $13.50 |
| 42 |
93210-24235-00 |
O-RING This part replaces 93210-24M79-00. Price: $8.49 |
| 43 |
6CB-15319-00-00 |
JOINT Price: $50.35 |
| 44 |
93210-27778-00 |
O-RING This part replaces 93210-27370-00. Price: $9.49 |
