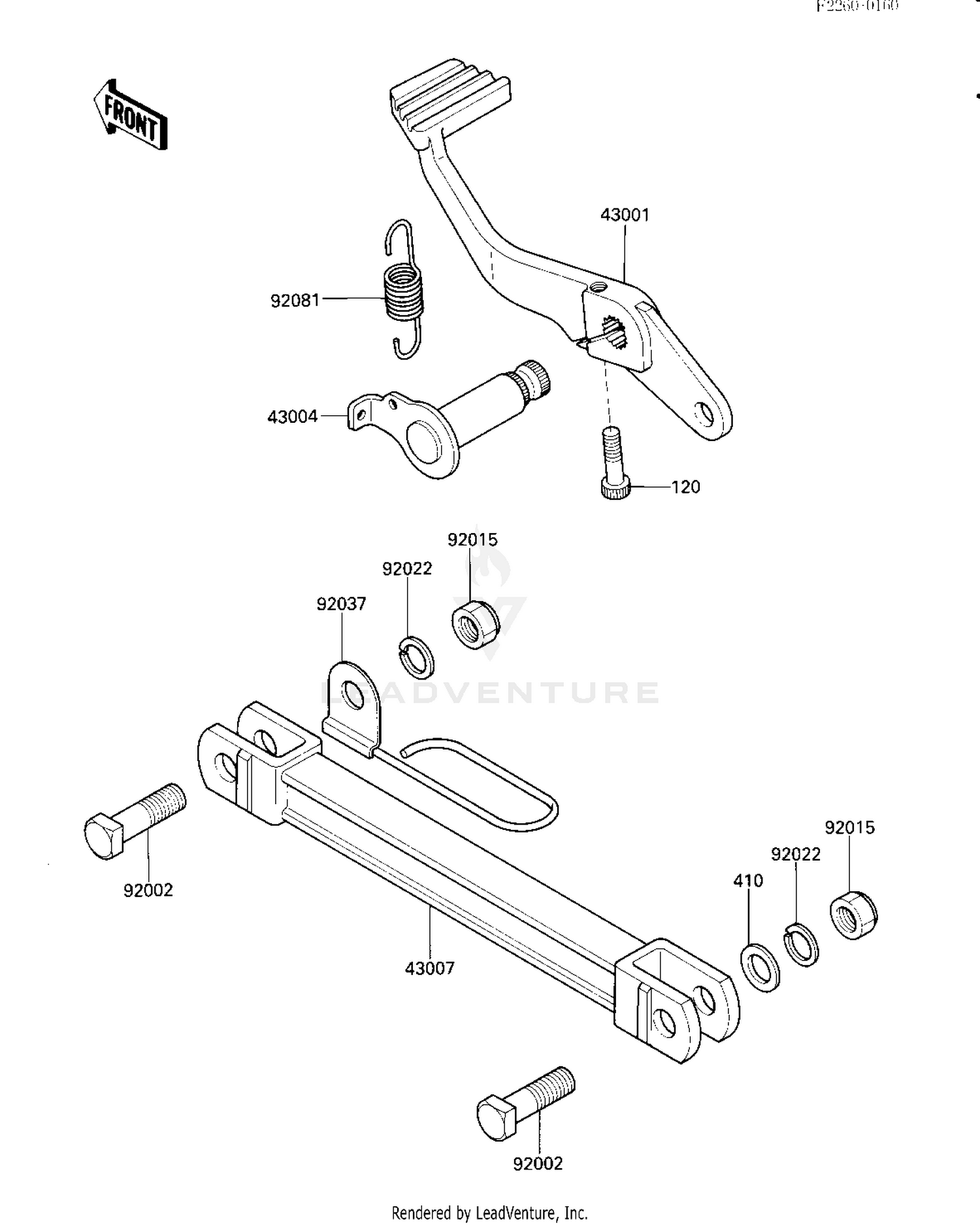

BRAKE PEDAL/TORQUE LINK
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 120CA0625 | BOLT-SOCKET,6X25 This part replaces 120P0625. Price: $2.06 |
| 43001 | 43001-1182 | LEVER-BRAKE,PEDAL Price: $153.09 |
| 43004 | 43004-1112 | SHAFT-BRAKE Price: $38.03 |
| 43007 | 43007-1117 | ROD-TORQUE Price: $130.21 |
| 92002 | 92002-1494 | BOLT,10X40 Price: $6.30 |
| 92015 | 92015-1429 | NUT,LOCK,10MM Price: $6.88 |
| 92022 | 92022-1540 | WASHER,SPRING,10MM Price: $4.11 |
| 92037 | 92037-1709 | CLAMP,HOSE Price: $13.12 |
| 92081 | 92081-1947 | SPRING,STEP RETURN Price: $5.88 |
