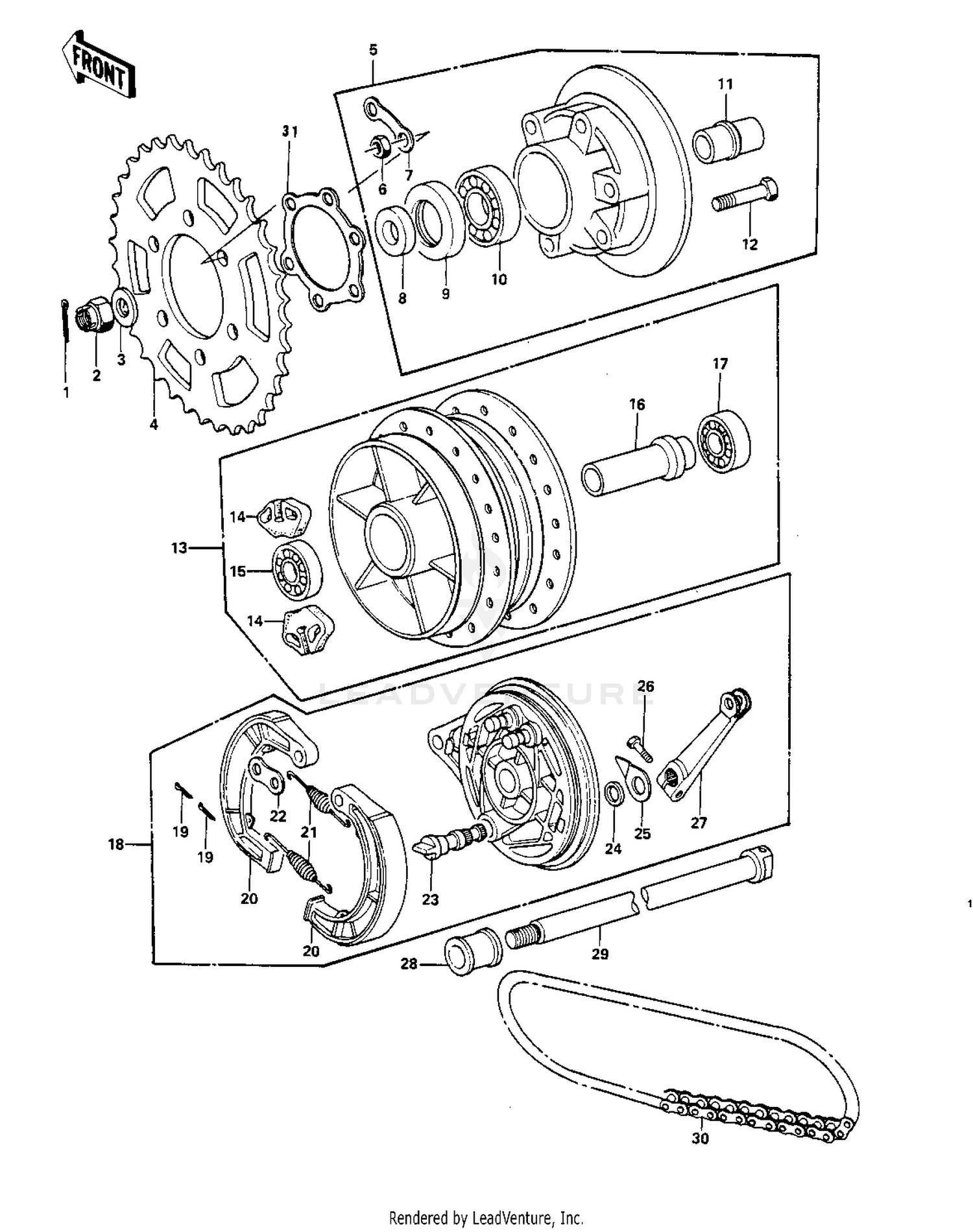

| Ref | Part Number | Description |
|---|
| 1 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 2 |
42045-018 |
NUT,CASTLE,18MM Price: $9.23 |
| 3 |
92022-248 |
WASHER,PLAIN,20MM Price: $11.60 |
| 3 |
92022-249 |
WASHER,PLAIN,20MM Price: $6.49 |
| 4 |
42041-118 |
REAR SPROCKET 35T Price: $161.07 |
| 5 |
42008-013 |
COUPLING ASSY,RR BRAK Price: $162.73 |
| 5 |
42008-029 |
COUPLING ASSY,RR HUB Price: $234.97 |
| 6 |
42045-005 |
NUT 10MM Price: $7.98 |
| 7 |
92088-013 |
WASHER-LOCK Price: $25.60 |
| 8 |
42037-023 |
COLLAR,RR HUB COUPLNG Price: $56.78 |
| 9 |
92050-027 |
SEAL-OIL,AJN40627 Price: $20.96 |
| 10 |
92045-0110 |
BEARING-BALL,6206-9C3 This part replaces 601B6206. Price: $25.69 |
| 11 |
42036-015 |
SLEEV,RR HUB CUPLING Price: $37.56 |
| 12 |
92003-087 |
BOLT-REAR SPROCKET Price: $10.11 |
| 13 |
42005-030 |
DRUM ASSY,REAR BRAKE Price: $570.95 |
| 14 |
42014-021 |
SHOCK DAMPER Price: $53.68 |
| 15 |
601B6304 |
BEARING BALL #6304 Price: $36.85 |
| 16 |
42010-021 |
SPACER-RR HUB BEARING Price: $7.69 |
| 17 |
601B6304Z |
BALL BEARING,#6304Z Price: $28.90 |
| 18 |
42006-062 |
PANEL-ASY,RR BRK Price: $304.63 |
| 19 |
550AA3025 |
PIN-COTTER,3.0X25 This part replaces 550D3025. Price: $0.62 |
| 20 |
41048-1092 |
SHOE-BRAKE This part replaces 41048-016. Price: $111.63 |
| 21 |
41049-012 |
SPRING,BRAKE SHOE Price: $9.49 |
| 22 |
41045-006 |
WASHER-BRAKE SHOE Price: $7.22 |
| 23 |
41050-017 |
CAM SHAFT,BRAKE Price: $35.39 |
| 24 |
41051-003 |
DUST SHIELD-BRAKE CAM Price: $4.26 |
| 25 |
41085-004 |
INDICATOR,BRAKE SHOE Price: $14.51 |
| 26 |
115BA0825 |
BOLT-SMALL-UPSET,8X25 This part replaces 115G0825. Price: $5.42 |
| 27 |
42029-033 |
LEVER,REAR BRAKE CAM Price: $110.91 |
| 28 |
42032-037 |
COLLAR,REAR AXLE Price: $7.53 |
| 29 |
42031-034 |
AXLE,REAR Price: $141.87 |
