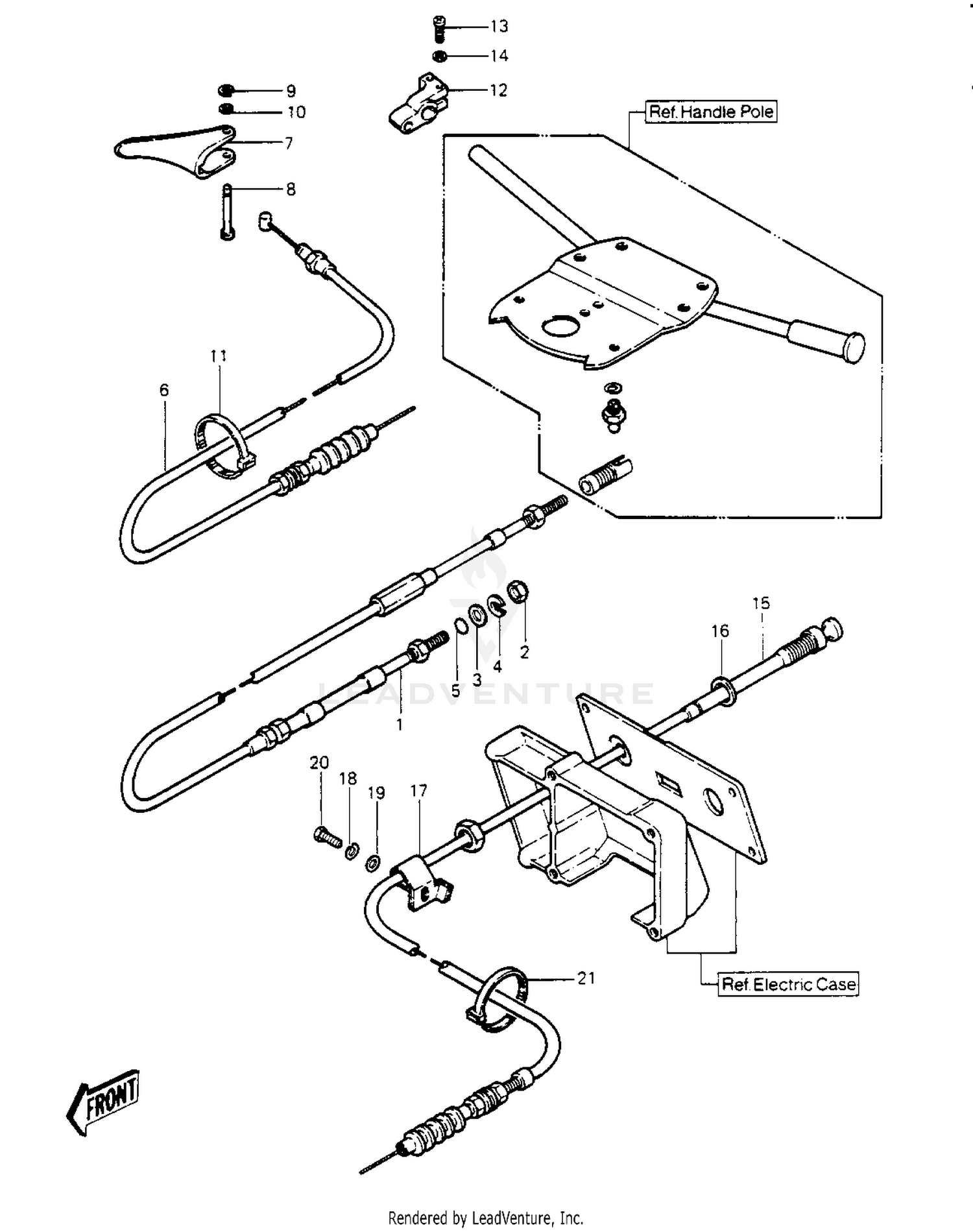

| Ref | Part Number | Description |
|---|
| 1 |
59406-3001 |
CABLE,STEERING Price: $350.44 |
| 2 |
92015-526 |
NUT,20MM Price: $29.72 |
| 3 |
92022-535 |
WASHER Price: $7.34 |
| 4 |
92033-3737 |
RING-SNAP,7.7X17.5X3.0 This part replaces 92036-501. Price: $6.89 |
| 5 |
670B2011 |
O RING,11MM Price: $1.28 |
| 6 |
54012-3001 |
CABLE,THROTTLE Price: $147.64 |
| 7 |
59126-509 |
LEVER,THROTTLE Price: $18.70 |
| 8 |
92043-3003 |
PIN,THROTTLE Price: $12.01 |
| 9 |
92036-518 |
RING-SNAP Price: $1.56 |
| 10 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 11 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 12 |
11034-3009 |
BRACKET,THROTTLE LEV Price: $36.83 |
| 13 |
220R0625 |
SCREW,PAN HEAD,6X25 Price: $4.73 |
| 14 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 15 |
59401-3001 |
CABLE,CHOKE Price: $68.09 |
| 16 |
11060-3746 |
GASKET This part replaces 92065-538. Price: $1.82 |
| 17 |
92037-544 |
CLAMP,CHOKE CABLE Price: $5.94 |
| 18 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
| 19 |
411S0600 |
WASHER-PLAIN,6MM Price: $2.06 |
| 20 |
110R0612 |
BOLT,6X12 Price: $2.28 |
