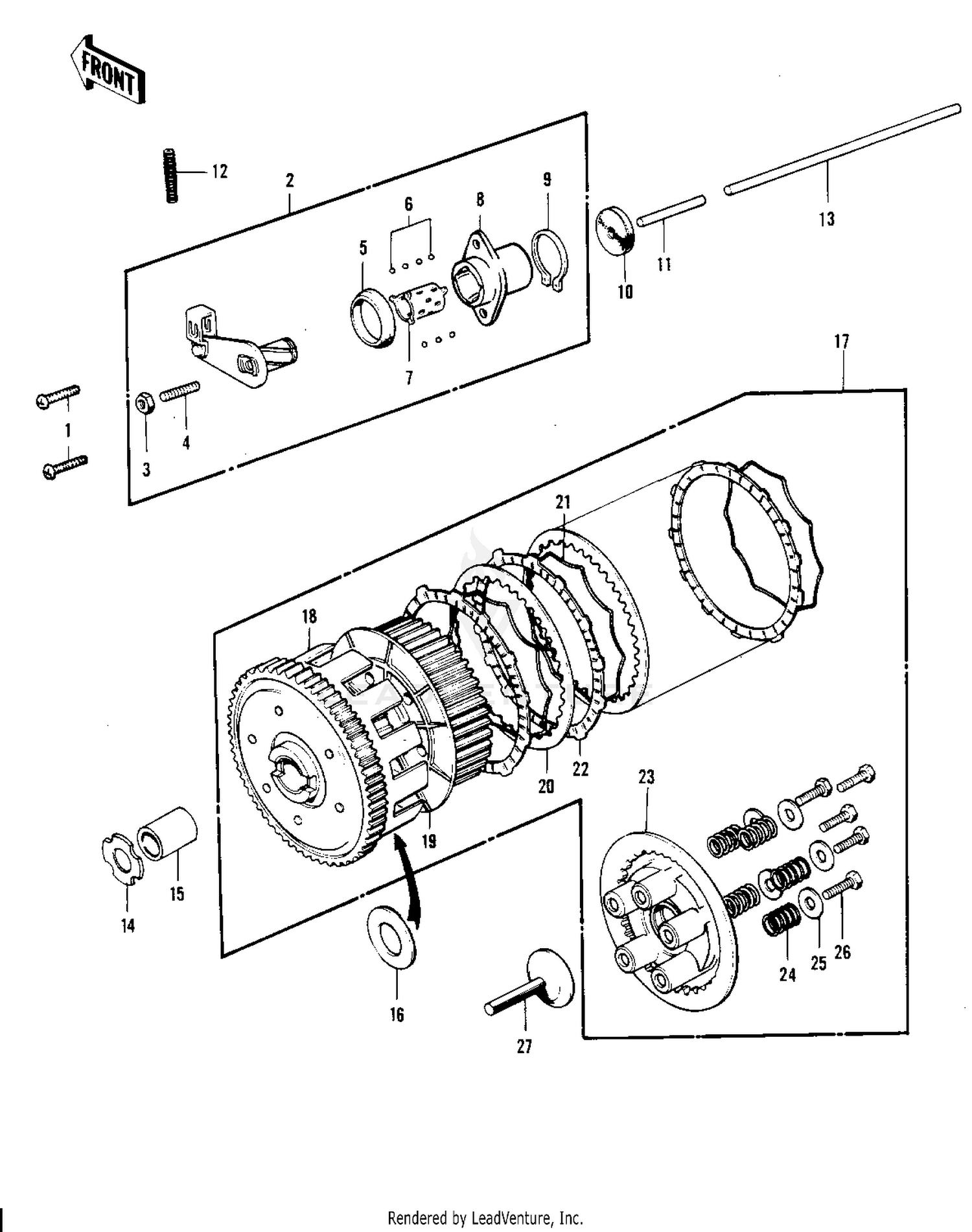

| Ref | Part Number | Description |
|---|
| 1 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 2 |
13231-1001 |
RELEASE ASSY,CLUTCH Price: $48.43 |
| 3 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 4 |
291Z0625 |
SCREW SLOTTED Price: $5.73 |
| 5 |
92056-007 |
OIL SEAL Price: $9.19 |
| 6 |
600A0400 |
BALL,STEEL,1/8" Price: $1.96 |
| 7 |
13197-006 |
RETAINER Price: $7.55 |
| 8 |
13118-015 |
OUTER,CLUTCH RELEASE Price: $24.87 |
| 9 |
480J1500 |
CIRCLIP-TYPE-C,15MM Price: $2.31 |
| 10 |
92050-040 |
OIL SEAL TC7297 Price: $27.69 |
| 11 |
13116-010 |
ROD CLUTCH PUSH SHORT Price: $14.45 |
| 12 |
92081-096 |
SPRING-CLUTCH RELEASE Price: $5.54 |
| 13 |
13116-019 |
ROD-CLUTCH PUSH,LONG Price: $11.43 |
| 14 |
92022-119 |
WASHER THRUST Price: $7.58 |
| 15 |
92028-045 |
BUSH CLUTCH Price: $8.26 |
| 16 |
92022-189 |
WASHER-PLAIN,20MM Price: $6.92 |
| 17 |
13081-1070 |
CLUTCH-ASSY Price: $362.87 |
| 18 |
13095-1040 |
HOUSING-COMP-CLUTCH Price: $273.20 |
| 19 |
13087-036 |
HUB,CLUTCH Price: $79.74 |
| 20 |
13089-003 |
PLATE CLUTCH STEEL Price: $14.22 |
| 21 |
13229-002 |
RING-CLUTCH STEEL Price: $13.58 |
| 22 |
13088-1015 |
PLATE-FRICTION Price: $20.55 |
| 23 |
13187-004 |
PLATE-CLUTCH SPRING Price: $41.41 |
| 24 |
92081-095 |
SPRING-CLUTCH Price: $18.10 |
| 25 |
92022-167 |
WASHER-PLAIN,5MM Price: $2.74 |
| 26 |
92003-078 |
BOLT,5X18 Price: $4.78 |
