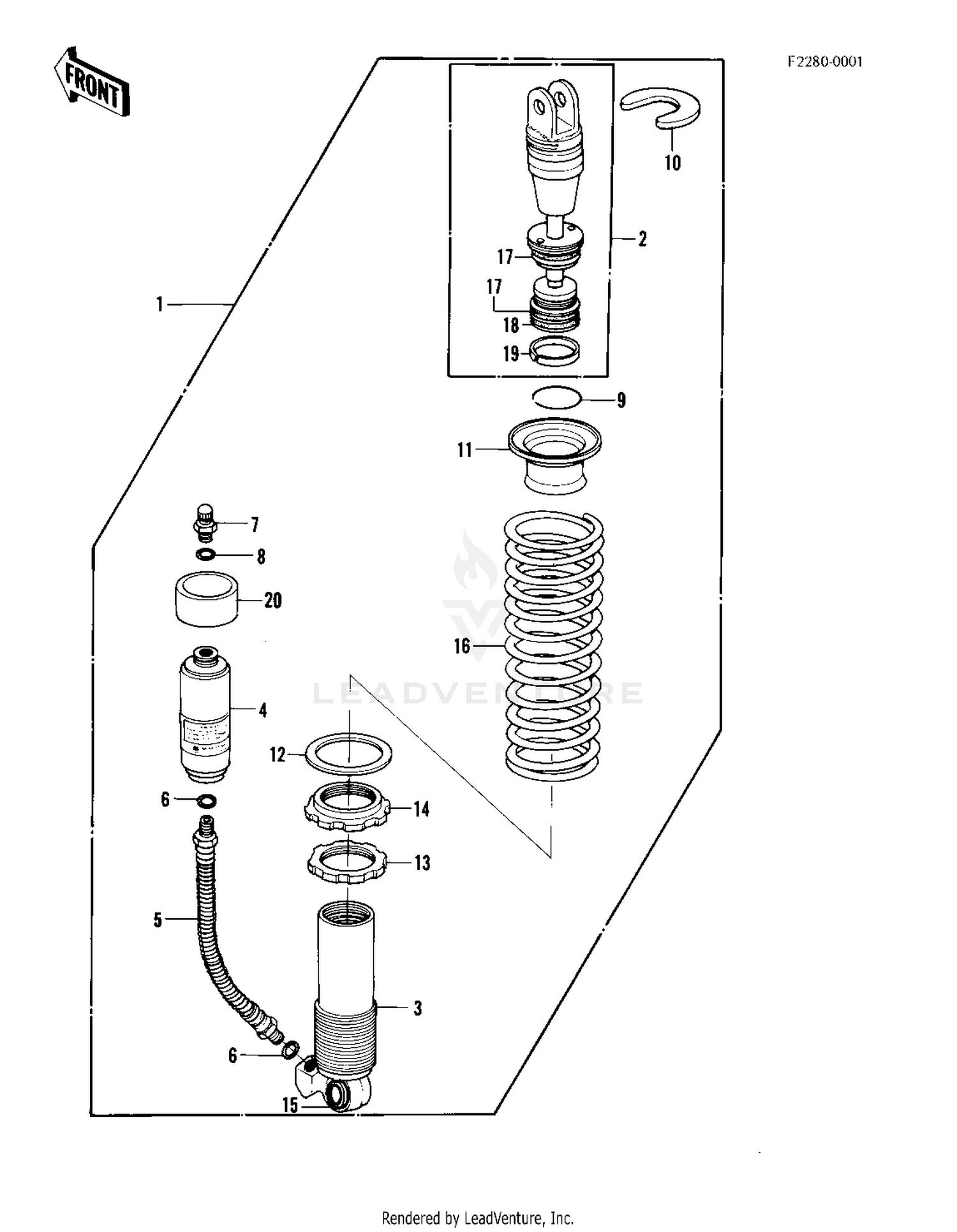

| Ref | Part Number | Description |
|---|
| 1 |
45014-1116 |
SHOCK ABSBR RR Price: $574.80 |
| 3 |
43089-1022 |
CYLINDER-SHOCKABSORBE Price: $278.00 |
| 4 |
52001-1012 |
TANK-OIL,SHOCKABSORBR Price: $146.86 |
| 5 |
39093-1053 |
PIPE-COMP-SUSP Price: $101.68 |
| 7 |
16126-1003 |
VALVE ASSY,AIR Price: $41.71 |
| 9 |
92033-1061 |
RING-SNAP,AIR VALVE Price: $3.80 |
| 10 |
13070-1041 |
GUIDE,SPRING Price: $12.19 |
| 11 |
13070-1042 |
GUIDE,SPRING Price: $11.58 |
| 12 |
92022-1235 |
WASHER,SPRING Price: $10.34 |
| 13 |
92015-1139 |
NUT,SPRING ADJUST Price: $30.21 |
| 14 |
92015-1140 |
NUT,SPRING ADJUST Price: $26.45 |
| 15 |
92092-1054 |
BUSHING-RUBBER,SHOCKA This part replaces 92092-1008. Price: $34.49 |
| 16 |
92081-1372 |
SPRING,RR SHOCK,STD Price: $223.38 |
| 17 |
92055-1333 |
RING-O,FORK,AIR TUBE This part replaces 92055-1102. Price: $6.00 |
| 19 |
92028-1127 |
BUSHING,REAR SHOCK Price: $13.70 |
