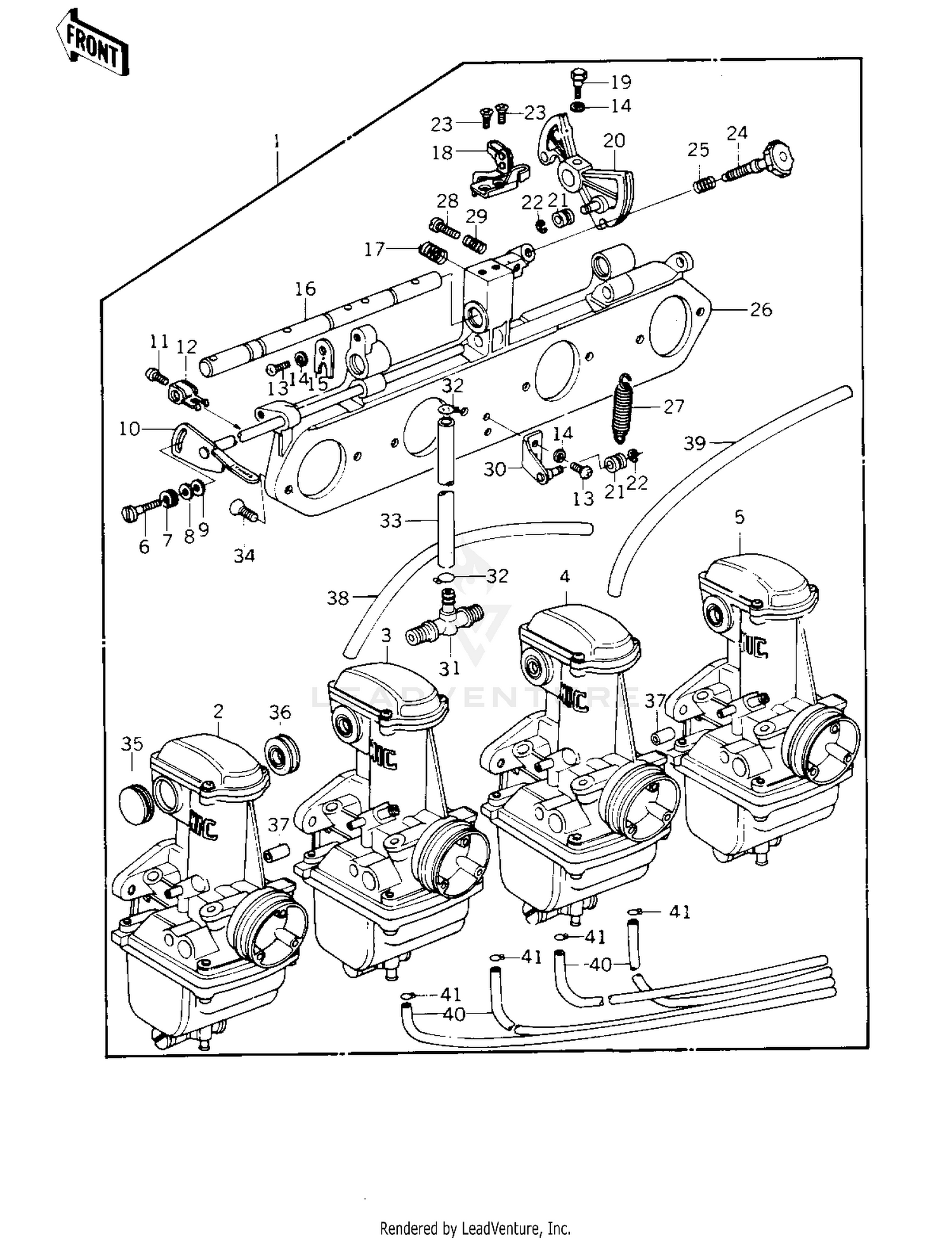

| Ref | Part Number | Description |
|---|
| 1 |
16001-1017 |
CARBURETOR,ASSY Price: $1,175.93 |
| 2 |
16001-1034 |
CARBURETOR,L.H OUTSID Price: $343.11 |
| 3 |
16001-1035 |
CARBURETOR,L.H INSIDE Price: $349.30 |
| 4 |
16001-1036 |
CARBURETOR,R.H INSIDE Price: $343.11 |
| 5 |
16001-1037 |
CARBURETOR,L.H OUTSID Price: $349.30 |
| 6 |
16046-005 |
SCREW Price: $6.83 |
| 7 |
16040-009 |
SPRING,F Price: $11.55 |
| 10 |
16041-021 |
SHAFT,STARTER PLUNGER Price: $54.54 |
| 11 |
16046-007 |
SCREW,PAN HEAD,5X7 Price: $11.39 |
| 12 |
13168-1026 |
LEVER,STARTER PLUNGER Price: $25.35 |
| 13 |
220AA0514 |
SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43 |
| 14 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 15 |
16055-012 |
PLATE,SHAFT STOPPER Price: $10.89 |
| 16 |
16041-017 |
SHAFT,CARB CONNECTION Price: $68.79 |
| 17 |
16040-022 |
SPRING,CABLE PULLY Price: $9.72 |
| 18 |
16077-017 |
BRACKET,THROTTLE CABL Price: $59.26 |
| 19 |
16067-006 |
BOLT,HEX HEAD,5X14 Price: $18.26 |
| 20 |
16068-015 |
PULLEY,THROTTLE CABLE Price: $66.67 |
| 21 |
16073-016 |
RING Price: $10.43 |
| 22 |
482K3000 |
CIRCLIP 3MM Price: $2.76 |
| 23 |
221AA0510 |
SCREW-CSK-CROS,5X10 This part replaces 221B0510A. Price: $3.67 |
| 24 |
16021-1010 |
SCREW,THROTTLE STOP Price: $32.19 |
| 25 |
16022-017 |
SPRING,THROTTLE STOP Price: $6.47 |
| 26 |
16065-049 |
HOLDER,CARBURETOR Price: $114.50 |
| 27 |
92081-1028 |
SPRING,THROTTLE PULLY Price: $76.59 |
| 28 |
16021-032 |
SCREW Price: $6.77 |
| 29 |
16022-010 |
SPRING,THROTTLE ADJST Price: $9.44 |
| 30 |
16077-016 |
BRACKET,THROTTLE CABL Price: $15.67 |
| 31 |
16046-002 |
JOINT,FUEL PIPE Price: $49.81 |
| 32 |
92037-056 |
CLAMP,CARB CONECT HOS Price: $6.60 |
| 33 |
92059-144 |
HOSE,FUEL Price: $97.88 |
| 34 |
16033-029 |
SCREW,6X14 Price: $4.87 |
| 35 |
16039-042 |
CAP,RUBBER Price: $17.78 |
| 36 |
92071-104 |
GROMMET,CARBURETOR Price: $33.00 |
| 37 |
92059-141 |
HOSE,6X11.5X16 Price: $17.97 |
| 38 |
92059-1028 |
HOSE,AIR VENT,5X8X550 Price: $25.52 |
| 39 |
92059-1028 |
HOSE,AIR VENT,5X8X550 Price: $25.52 |
| 40 |
92059-147 |
HOSE,FUEL OVERFLOW Price: $36.17 |
