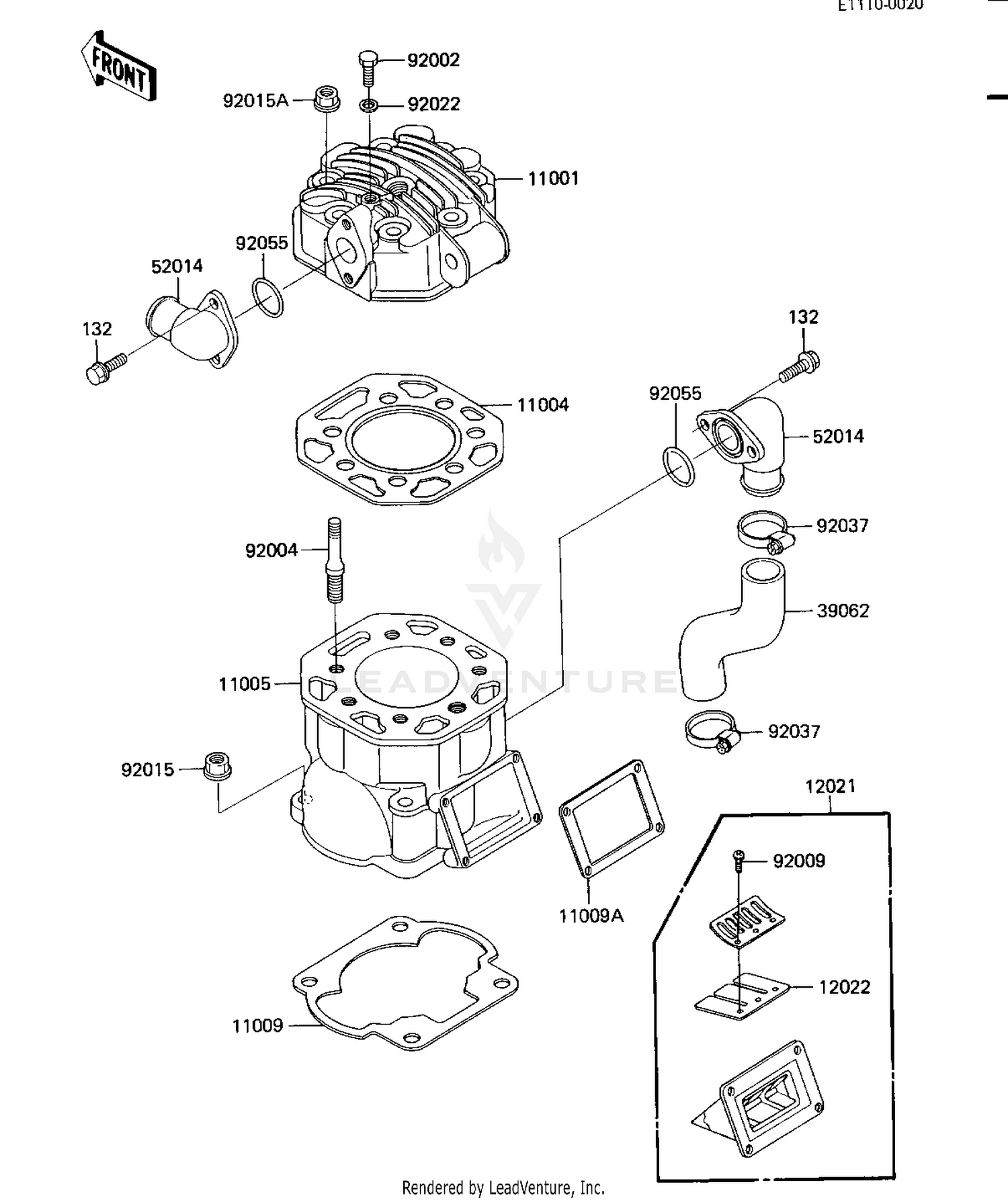

| Ref | Part Number | Description |
|---|
| 11001 |
11001-1189 |
HEAD-CYLINDER Price: $245.48 |
| 11004 |
11004-1127 |
GASKET-HEAD,CYLINDER Price: $64.73 |
| 11005 |
11005-1416 |
CYLINDER-ENGINE Price: $1,092.27 |
| 11009 |
11060-1454 |
GASKET, CYLINDER BASE This part replaces 11009-1288. Price: $12.61 |
| 11009A |
11009-1360 |
GASKET,REED VALVE Price: $9.46 |
| 12021 |
12021-1057 |
VALVE-ASSY-REED Price: $156.92 |
| 12022 |
12022-1051 |
VALVE-REED Price: $16.46 |
| 39062 |
39062-1097 |
HOSE-COOLING Price: $18.50 |
| 52014 |
52014-0005 |
ELBOW This part replaces 52014-1004. Price: $32.45 |
| 92002 |
92002-1222 |
BOLT,6X10 Price: $8.10 |
| 92004 |
92004-1022 |
STUD,CYLINDER Price: $9.26 |
| 92009 |
92009-1014 |
SCREW,REED VALVE Price: $2.49 |
| 92015 |
92015-1415 |
NUT,FLANGED,10MM Price: $4.69 |
| 92015A |
92015-1014 |
NUT,FLANGED,8MM Price: $0.65 |
| 92022 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 92037 |
92037-1589 |
CLAMP,COOLING HOSE Price: $18.57 |
| 92055 |
92055-055 |
RING-O,19.5X1.5 Price: $4.31 |
