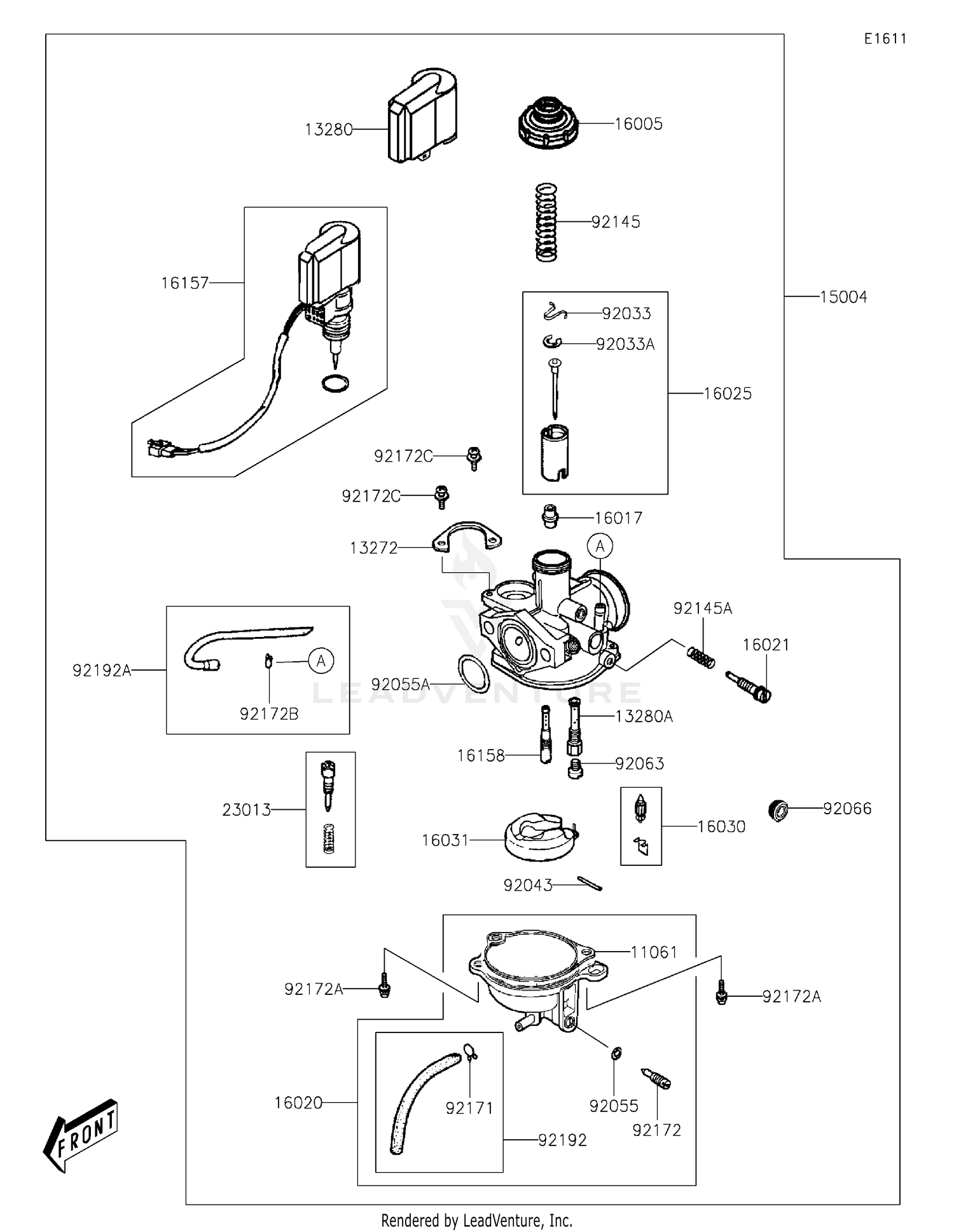

Carburetor
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 11061 | 11061-Y021 | GASKET,FLOAT CHAMBER Price: $3.94 |
| 13272 | 13272-Y011 | PLATE Price: $2.02 |
| 13280 | 13280-Y008 | HOLDER,CAP Price: $1.90 |
| 13280A | 13280-Y012 | HOLDER,NEEDLE JET Price: $55.86 |
| 15004 | 15004-Y011 | CARBURETOR-ASSY Price: $306.26 |
| 16005 | 16005-Y001 | TOP-CHAMBER Price: $29.48 |
| 16017 | 16017-Y001 | JET-NEEDLE Price: $33.66 |
| 16020 | 16020-Y001 | CHAMBER-FLOAT Price: $101.58 |
| 16021 | 16021-Y001 | SCREW-THROTTLE STOP Price: $3.54 |
| 16025 | 16025-Y006 | VALVE-THROTTLE Price: $127.98 |
| 16030 | 16030-Y002 | VALVE-FLOAT,ASSY Price: $18.69 |
| 16031 | 16031-Y003 | FLOAT Price: $46.88 |
| 16157 | 16157-Y001 | JET-STARTER Price: $115.97 |
| 16158 | 16158-Y001 | JET-SLOW Price: $14.87 |
| 23013 | 23013-Y001 | SCREW-ASSY,ADJUST Price: $3.55 |
| 92033 | 92033-Y002 | RING-SNAP Price: $4.33 |
| 92033A | 92033-Y003 | RING-SNAP Price: $1.87 |
| 92043 | 92043-Y002 | PIN Price: $1.76 |
| 92055 | 92055-Y001 | RING-O Price: $1.71 |
| 92055A | 92055-Y016 | RING-O Price: $1.76 |
| 92063 | 92063-Y001 | JET-MAIN Price: $21.43 |
| 92066 | 92066-Y008 | PLUG Price: $1.48 |
| 92145 | 92145-Y002 | SPRING Price: $2.30 |
| 92145A | 92145-Y004 | SPRING Price: $0.79 |
| 92171 | 92171-Y010 | CLAMP Price: $0.79 |
| 92172 | 92172-Y001 | SCREW,DRAIN Price: $4.66 |
| 92172A | 92172-Y013 | SCREW Price: $0.71 |
| 92172B | 92172-Y023 | CLAMP Price: $1.29 |
| 92172C | 92172-Y065 | SCREW,4X8 Price: $2.31 |
| 92192 | 92192-Y006 | TUBE,ASSY Price: $3.12 |
