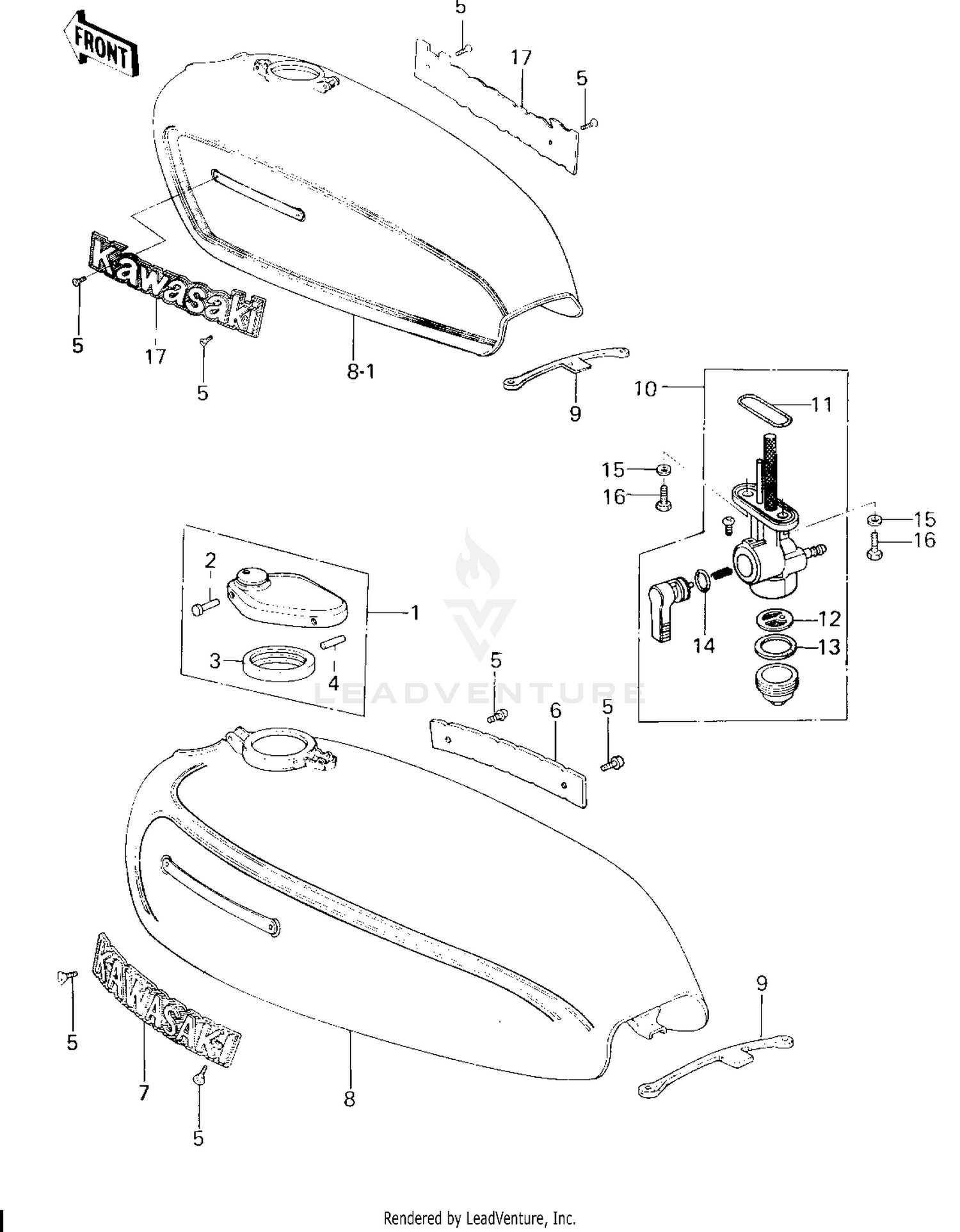

FUEL TANK
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51048-012 | CAP,FUEL TANK Price: $124.89 |
| 2 | 92043-126 | PIN,HOOK Price: $4.78 |
| 3 | 51059-008 | GASKET-FUEL TANK CAP Price: $10.97 |
| 4 | 92043-127 | PIN,CAP HINGE Price: $5.24 |
| 5 | 221AB0306 | SCREW-CSK-CROS This part replaces 221C0306. Price: $0.74 |
| 9 | 92072-042 | BAND,FUEL TANK Price: $15.19 |
| 10 | 51023-1051 | TAP ASSY FUEL Price: $73.59 |
| 11 | 51039-003 | O RING Price: $6.27 |
| 12 | 14043-1002 | STRINER,FUEL TAP Price: $4.53 |
| 13 | 11009-1013 | GASKET,FUEL TAP CUP Price: $5.42 |
| 14 | 670B2010 | O RING,10MM Price: $1.50 |
| 15 | 92022-183 | WASHER,6.2X11X1.5 Price: $3.92 |
| 16 | 92001-114 | BOLT-HEX HEAD,6X16 Price: $4.37 |
