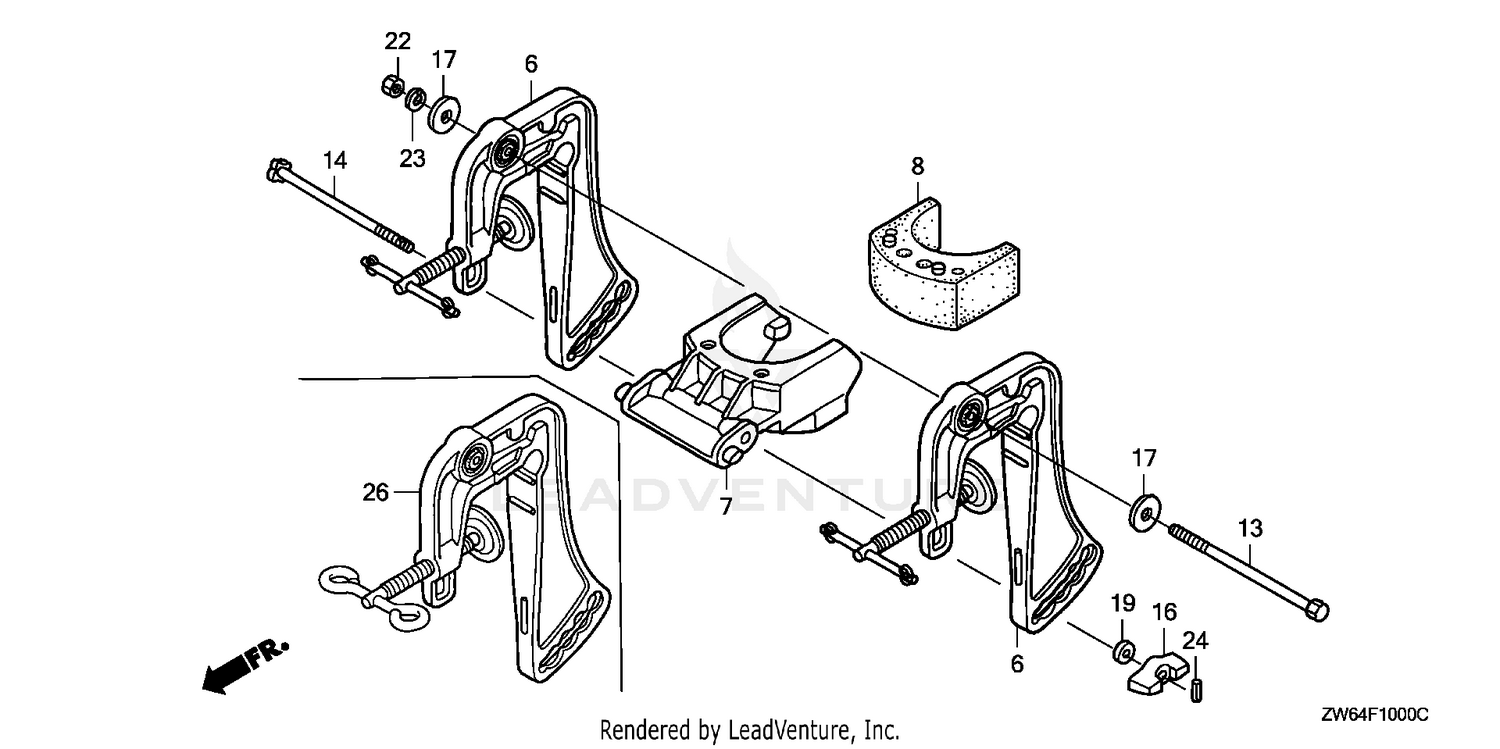

| Ref | Part Number | Description |
|---|
| 7 |
50302-ZVA-000 |
SEE PART DETAILS - PRI; RECEIVER, THRUST Price: $22.86 |
| 8 |
50303-ZVA-000 |
RUBBER, THRUST This part replaces 50303-ZV0-000. Price: $18.98 |
| 10 |
506152709 |
Handle Bar, Non Dyed Clear Anodizing Price: $84.99 |
| 13 |
90107-ZV0-000 |
BOLT, HEX. (8X110) Price: $7.12 |
| 14 |
90108-ZV0-000 |
BOLT, DIAMOND (6X110) Price: $7.14 |
| 16 |
90301-ZVA-000 |
SEE PART DETAILS - PRI; WINGNUT Price: $8.80 |
| 17 |
90501-ZVA-000 |
WASHER, PLAIN (8MM) This part replaces 90501-ZV0-000. Price: $4.54 |
| 19 |
90512-ZV0-000 |
WASHER, PLAIN (6MM) Price: $4.20 |
| 20 |
506152560 |
Grip 148mm Price: $16.99 |
| 22 |
94001-08490-0S |
SEE PART DETAILS - PRI; NUT, HEX. (8MM) Price: $3.32 |
| 24 |
90751-ZW6-000 |
PIN, SPRING (2.5X8) Price: $1.82 |
| 25 |
506152798 |
Heating Element 32 Watt 3 Wires Price: $53.99 |
| 26 |
50300-ZVA-000ZA |
SEE PART DETAILS - PRI; BRACKET, STERN *NH246* (LOOSY GRAY) Price: $259.44 |
| 35 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership Price: $40.99 |
| 50 |
506153176 |
Thermal Insulation This part replaces 506152548. Price: $6.19 |
| 400 |
860200821 |
Extension Kit ( 205mm ) Price: $86.99 |
| 405 |
506152751 |
Steering Support This part replaces 506152750. Price: $14.49 |
| 410 |
506152751 |
Steering Support Price: $14.49 |
| 420 |
250000852 |
Hex. Flange Screw M8 X 1.25 x 40 Price: $2.19 |
| 430 |
250000852 |
Hex. Flange Screw M8 X 1.25 x 40 Price: $2.19 |
| 500 |
506152541 |
Deep Black, Steering Pad Price: $42.99 |
| 520 |
506152460 |
Moulding Strap Price: $69.99 |
| 530 |
506152703 |
Black Support Plate Price: $16.99 |
| 535 |
719000049 |
Clamps Price: $14.83 |
| 540 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip Price: $2.19 |
| 545 |
250000447 |
Hex. Flange Screw M6 X 25 Price: $2.19 |
| 1000 |
506152962 |
Steering Column Price: $204.99 |
| 1010 |
506152508 |
Upper Half-Housing Price: $9.23 |
| 1012 |
506152217 |
Lower Half-Housing Price: $7.62 |
| 1014 |
506152509 |
Upper Anti-Vibration Gasket Price: $4.89 |
| 1016 |
506152518 |
Lower Vibration Ring Price: $4.89 |
| 1020 |
506152297 |
Housing Bushing Price: $13.49 |
| 1021 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. Price: $4.49 |
| 1022 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 1030 |
506152297 |
Housing Bushing Price: $13.49 |
| 1031 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. Price: $4.49 |
| 1032 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 1040 |
506152297 |
Housing Bushing Price: $13.49 |
| 1041 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. Price: $4.49 |
| 1042 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 1050 |
506152297 |
Housing Bushing Price: $13.49 |
| 1051 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. Price: $4.49 |
| 1052 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 1060 |
506152163 |
Plate Price: $13.49 |
| 1220 |
207004034 |
Hex. Screw M10 X 1.5 X 40 Price: $2.19 |
| 1230 |
233601466 |
Elastic Locking Nut M10 Price: $2.19 |
| 1250a |
506152482 |
Tie-Rod Price: $38.99 |
| 1250b |
506152081 |
LH Thread Ball Joint Price: $41.49 |
| 1250c |
250100016 |
LH Threaded Hex. Jam Nut M10 Price: $0.76 |
| 1250d |
506152019 |
RH Threaded Ball Joint Price: $41.49 |
| 1250e |
732610010 |
RH Threaded Hex. Jam Nut M10 Price: $0.76 |
| 1280 |
506152582 |
Washer Price: $4.69 |
| 1290 |
207005554 |
Hex Screw M10 X 1.5 X 55 Price: $7.69 |
| 1300 |
233201464 |
Hex. Flange Elastic M10 x 1.5 Price: $7.69 |
| 1310 |
506152521 |
Bushing Price: $15.79 |
