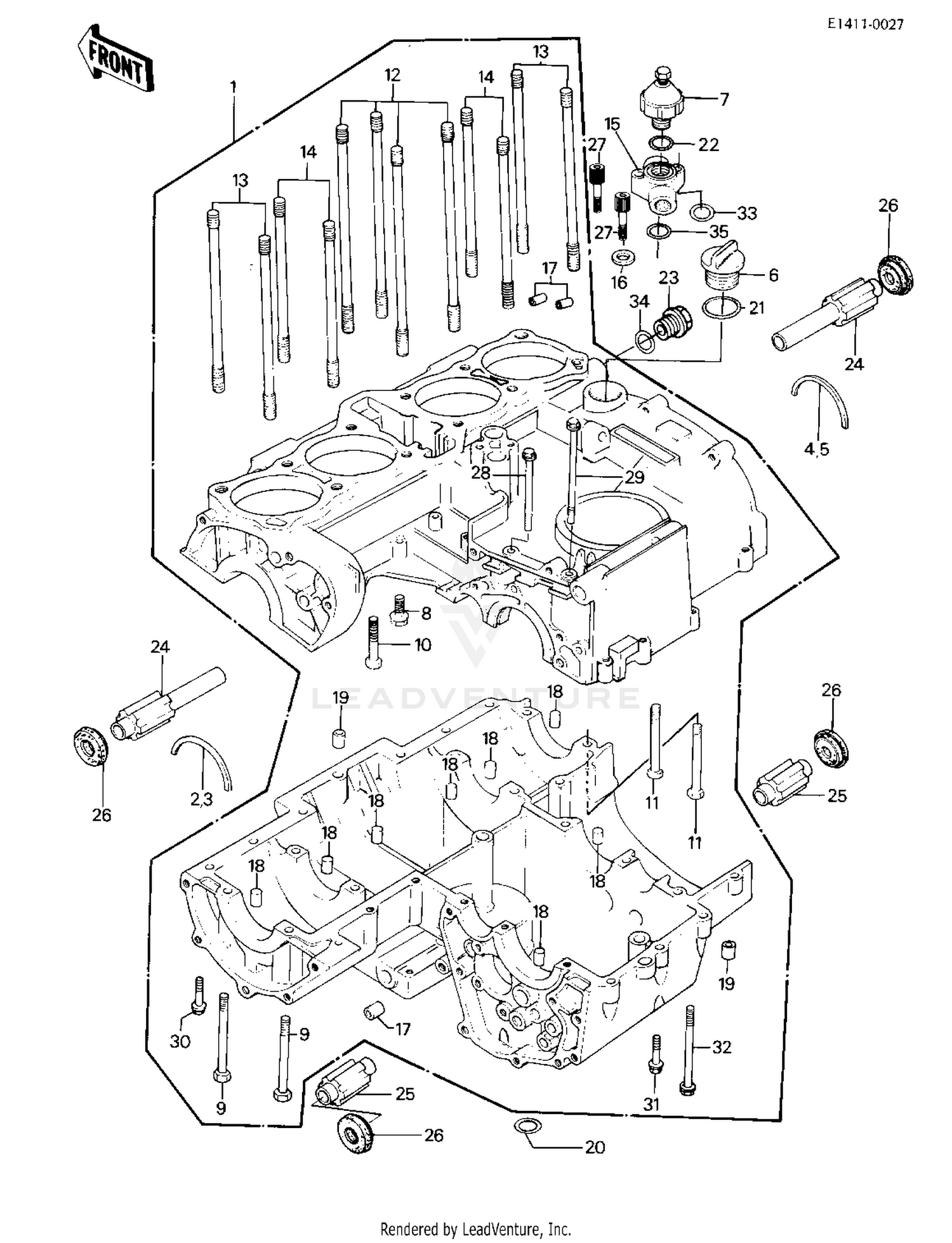

| Ref | Part Number | Description |
|---|
| 1 |
14001-5099 |
SET-CRANKCASE,SILVER Price: $2,228.51 |
| 2 |
14013-013 |
RING-BEARING SET Price: $12.39 |
| 3 |
14013-1004 |
RING-POSITION,T=1.98 Price: $4.96 |
| 4 |
14013-1005 |
RING-POSITION,T=1.98 Price: $4.96 |
| 5 |
14013-1006 |
RING-POSITION Price: $6.09 |
| 6 |
16115-1062 |
CAP-OIL FILLER This part replaces 16115-013. Price: $19.96 |
| 7 |
27010-1013 |
SWITCH,OIL PRESSURE Price: $39.96 |
| 8 |
92001-1349 |
BOLT,FLANGED,8X16 Price: $5.72 |
| 12 |
92004-1002 |
STUD,10X167 Price: $15.20 |
| 13 |
92004-1040 |
STUD,10X158 This part replaces 92004-1003. Price: $15.20 |
| 14 |
92004-1231 |
STUD This part replaces 92004-1004. Price: $15.96 |
| 15 |
92005-1030 |
FITTING,OIL PRESSURE Price: $68.90 |
| 16 |
92022-1086 |
WASHER,8.2X16X1 Price: $3.92 |
| 17 |
92042-007 |
PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 18 |
92043-1690 |
PIN,6X16 This part replaces 92042-016. Price: $5.00 |
| 19 |
92043-1037 |
PIN,DOWEL,10X14 Price: $0.74 |
| 20 |
92055-048 |
O RING,0.D=18MM Price: $4.80 |
| 21 |
92055-049 |
RING-O,31.5X2.6 Price: $4.31 |
| 22 |
92055-055 |
RING-O,19.5X1.5 Price: $4.31 |
| 23 |
92066-021 |
PLUG Price: $22.10 |
| 24 |
92075-1272 |
DAMPER Price: $44.98 |
| 25 |
92075-1273 |
DAMPER Price: $28.97 |
| 26 |
92075-1274 |
DAMPER,ENGINE MOUNT,SIDE Price: $17.60 |
| 31 |
130BD0655 |
BOLT-FLANGED This part replaces 130Y0655. Price: $4.83 |
| 32 |
130BD0695 |
BOLT-FLANGED This part replaces 130Y0695. Price: $5.59 |
| 33 |
670B1509 |
O RING,9MM Price: $3.65 |
| 34 |
670B2015 |
O RING,15MM Price: $1.42 |
