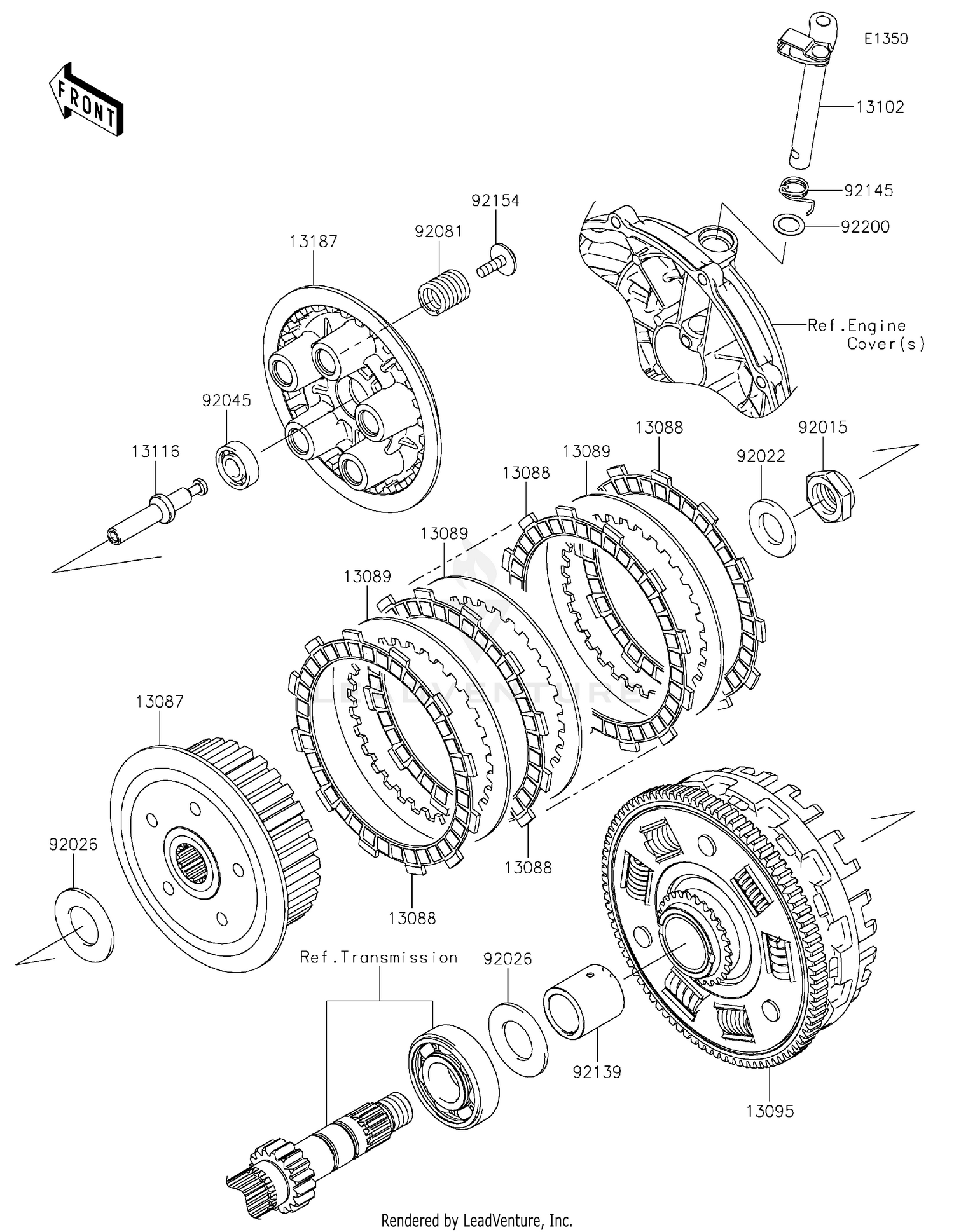

Clutch
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 13087 | 13087-0046 | HUB-CLUTCH Price: $146.22 |
| 13088 | 13088-1105 | PLATE-FRICTION Price: $15.50 |
| 13089 | 13089-0016 | PLATE-CLUTCH,T=2.3 Price: $12.75 |
| 13095 | 13095-0559 | HOUSING-COMP-CLUTCH Price: $426.07 |
| 13102 | 13102-0037 | RELEASE-COMP-CLUTCH Price: $45.06 |
| 13116 | 13116-0035 | ROD-PUSH Price: $22.01 |
| 13187 | 13187-0017 | PLATE-CLUTCH OPERATING Price: $80.58 |
| 92015 | 92015-1555 | NUT,20MM Price: $13.08 |
| 92022 | 92022-1868 | WASHER,20.3X36X3.7 Price: $9.51 |
| 92026 | 92026-0716 | SPACER,25.5X47X2.5 Price: $11.16 |
| 92045 | 92045-1235 | BEARING-BALL,6001C3ML01 Price: $16.25 |
| 92081 | 92081-1033 | SPRING,CLUTCH Price: $7.38 |
| 92139 | 92139-0710 | BUSHING Price: $29.82 |
| 92145 | 92145-0066 | SPRING,CLUTCH RELEASE Price: $7.56 |
| 92154 | 92154-0079 | BOLT,UPSET-WP,6X20 Price: $5.54 |
