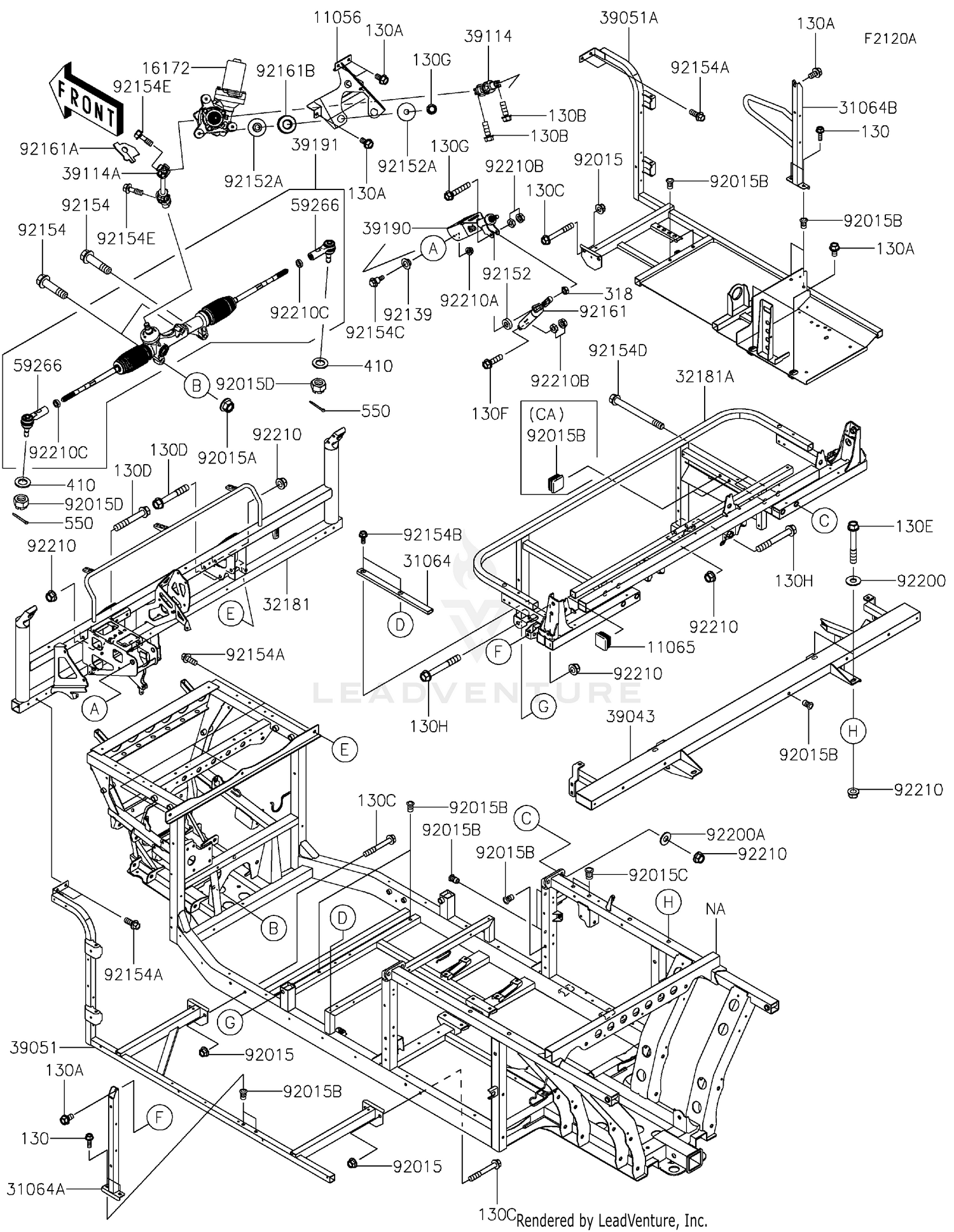

| Ref | Part Number | Description |
|---|
| 11056 |
11056-2838 |
BRACKET Price: $60.98 |
| 11065 |
11065-0901 |
CAP Price: $2.94 |
| 16172 |
16172-0557 |
ACTUATOR,EPS Price: $1,812.19 |
| 31064 |
31064-0691 |
PIPE-COMP,STORAGE BOX,LH Price: $23.97 |
| 31064A |
31064-0706 |
PIPE-COMP,SEAT SIDE,LH Price: $40.49 |
| 31064B |
31064-0707 |
PIPE-COMP,SEAT SIDE,RH Price: $55.90 |
| 32181 |
32181-0048 |
FRAME-SUB-COMP,DASH PANEL This part replaces 32181-0011. Price: $758.80 |
| 32181A |
32181-0016 |
FRAME-SUB-COMP,SEAT Price: $872.39 |
| 39043 |
39043-0029 |
CROSSMEMBER-COMP Price: $475.04 |
| 39051 |
39051-0015 |
FRAME-COMP-SIDE,LH Price: $321.01 |
| 39051A |
39051-0016 |
FRAME-COMP-SIDE,RH Price: $613.37 |
| 39114 |
39114-0019 |
SHAFT-COMP-STRG Price: $96.23 |
| 39114A |
39114-0045 |
SHAFT-COMP-STRG Price: $158.69 |
| 39190 |
39190-0022 |
SHAFT-ASSY-STEERING This part replaces 39190-0006. Price: $231.78 |
| 39191 |
39191-0050 |
GEAR-ASSY-STEERING This part replaces 39191-0039. Price: $1,063.37 |
| 59266 |
59266-0771 |
JOINT-BALL Price: $86.80 |
| 92015 |
92015-1432 |
NUT,8MM Price: $6.57 |
| 92015A |
92015-1433 |
NUT,LOCK,FLANGED,12MM Price: $8.86 |
| 92015C |
92015-1793 |
NUT,POP,8MM,L=16.5 Price: $5.00 |
| 92015D |
92015-1841 |
NUT,CASTLE,14MM Price: $8.38 |
| 92139 |
92139-0230 |
BUSHING Price: $4.61 |
| 92152 |
92152-1848 |
COLLAR,8.2X18X5 Price: $5.69 |
| 92152A |
92152-2149 |
COLLAR,8.5X30X10.6 Price: $5.04 |
| 92154 |
92154-1008 |
BOLT,FLANGED,12X50 Price: $7.85 |
| 92154A |
92154-1226 |
BOLT,FLANGED,8X20 Price: $1.02 |
| 92154B |
92154-1250 |
BOLT,6X15.6 Price: $0.82 |
| 92154C |
92154-1320 |
BOLT,6X21.5 Price: $2.49 |
| 92154D |
92154-1353 |
BOLT,FLANGED,10X110 Price: $4.92 |
| 92154E |
92154-4224 |
BOLT Price: $3.97 |
| 92161 |
92161-1825 |
DAMPER,GAS SPRING Price: $51.50 |
| 92161A |
92161-2492 |
DAMPER Price: $2.72 |
| 92161B |
92161-7517 |
DAMPER,ACTUATOR Price: $3.35 |
| 92200 |
92200-1595 |
WASHER,10.5X25X1.6 Price: $6.18 |
| 92200A |
92200-2009 |
WASHER,10.3X23X1.6 Price: $1.35 |
| 92210 |
92210-0276 |
NUT,LOCK,FLANGED,10MM Price: $2.61 |
| 92210A |
92210-0303 |
NUT,LOCK,FLANGED,6MM Price: $1.34 |
