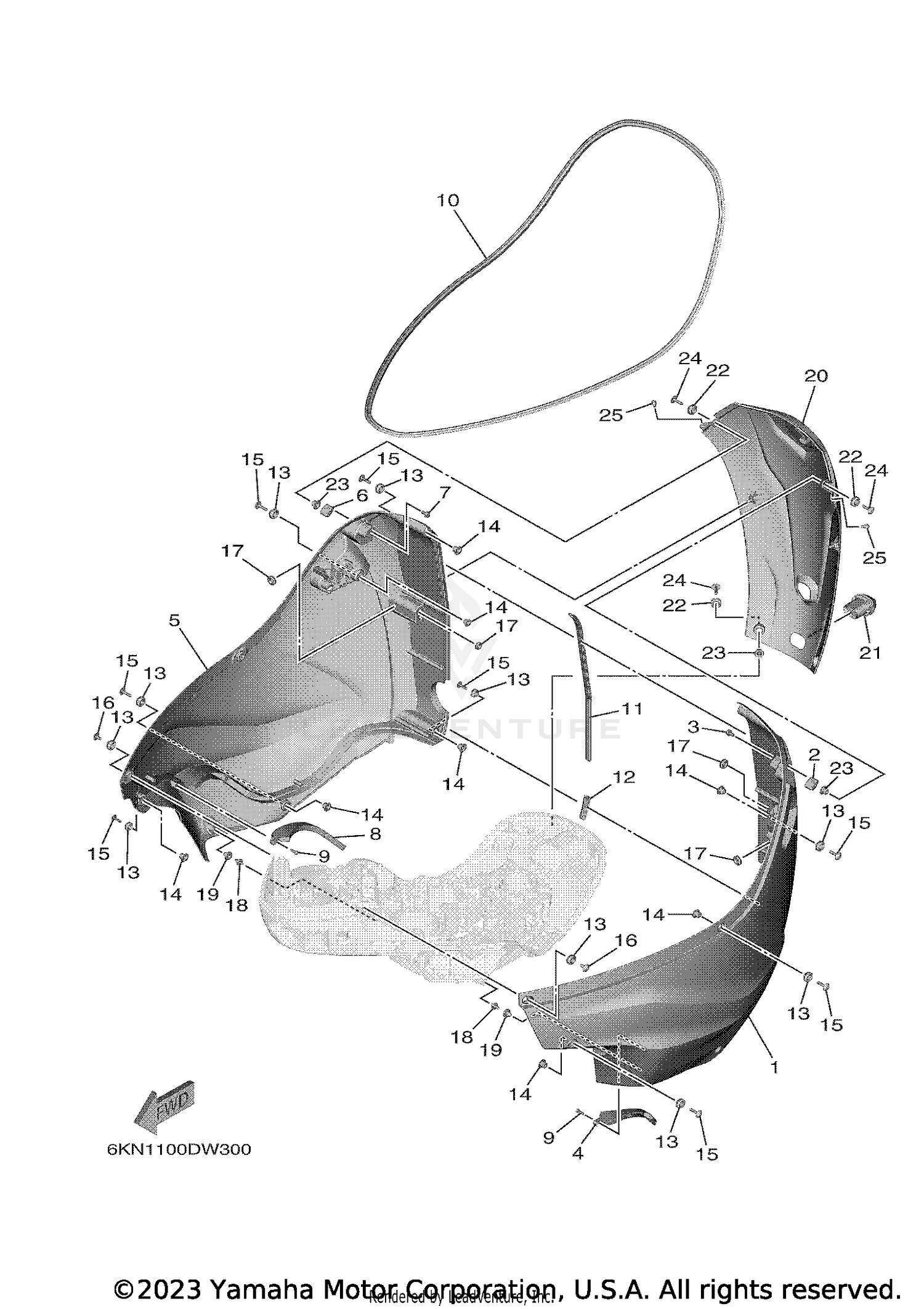

BOTTOM COWLING 2
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 6GR-42744-00-00 | STAY Price: $28.25 |
| 3 | 95D95-06012-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 4 | 6GR-42622-01-00 | DAMPER Price: $9.05 |
| 6 | 6GR-42744-00-00 | STAY Price: $28.25 |
| 7 | 95D95-06012-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 8 | 6GR-42623-01-00 | SIDE, MOLE COWLING 2 Price: $9.05 |
| 9 | 90167-05017-00 | SCREW, TAPPING Price: $1.55 |
| 10 | 6GR-42615-00-00 | SEAL Price: $144.15 |
| 11 | 6KN-42769-00-00 | SEAL, RUBBER Price: $31.35 |
| 12 | 6KN-44522-00-00 | SEAL Price: $21.60 |
| 13 | 90480-16015-00 | GROMMET Price: $2.50 |
| 14 | 6GR-42758-00-00 | COLLAR Price: $10.00 |
| 15 | 90111-06175-00 | BOLT,HEX. SOCKET BUT Price: $6.40 |
| 16 | 90111-06176-00 | BOLT,HEX. SOCKET BUT Price: $4.20 |
| 17 | 90480-13034-00 | GROMMET Price: $5.45 |
| 18 | 69J-42774-10-00 | STAY, APRON 1 Price: $29.15 |
| 19 | 6GR-42768-01-00 | DAMPER Price: $4.60 |
| 21 | 6GR-42748-01-00 | GROMMET Price: $12.70 |
| 22 | 90480-16015-00 | GROMMET Price: $2.50 |
| 23 | 6GR-42758-00-00 | COLLAR Price: $10.00 |
| 24 | 90111-06175-00 | BOLT,HEX. SOCKET BUT Price: $6.40 |
