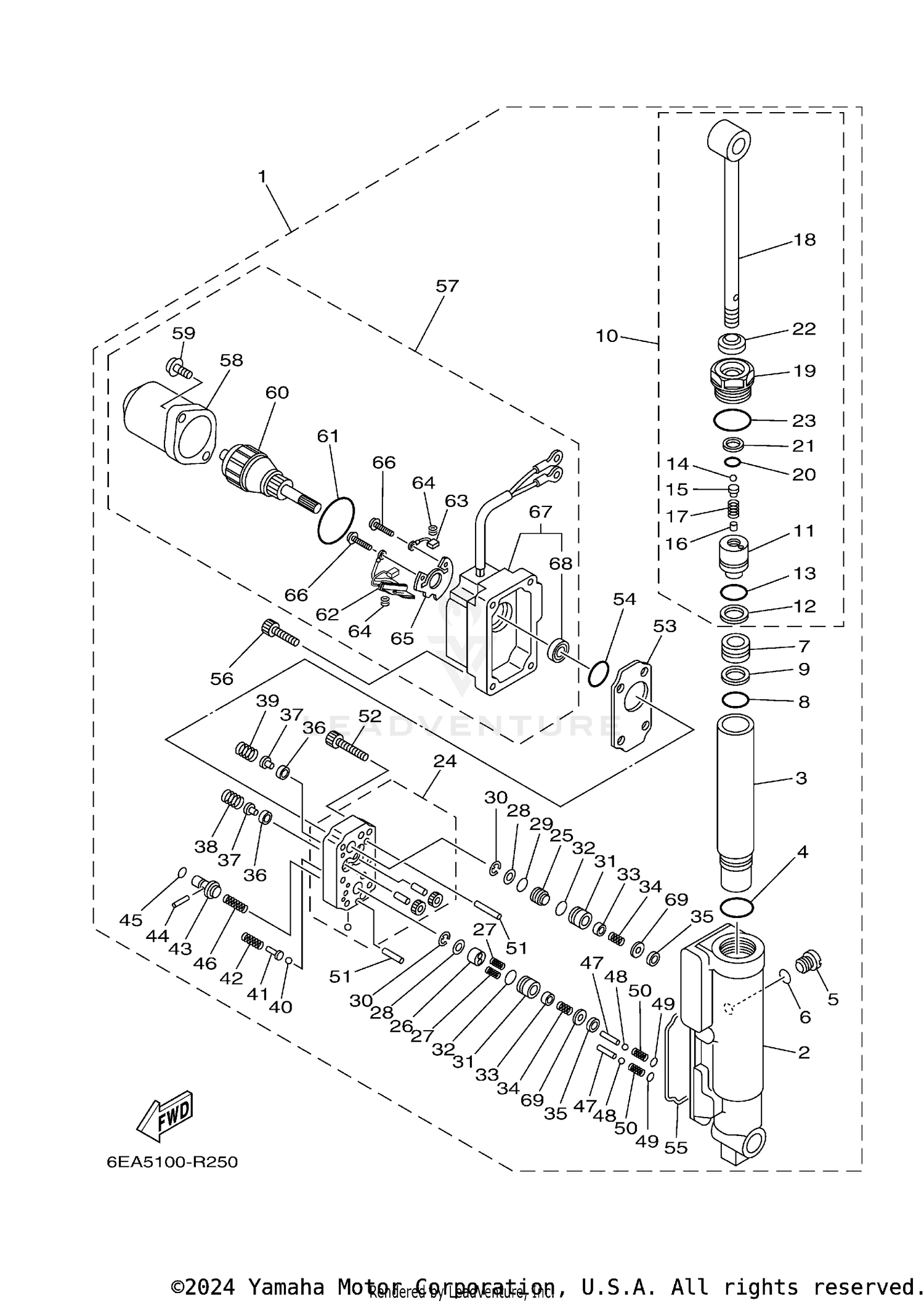

| Ref | Part Number | Description |
|---|
| 1 |
69G-43840-03-8D |
POWER TILT ASSY Price: $1,374.75 |
| 2 |
69A-4380K-00-00 |
CYLINDER, TILT SUB ASSY Price: $554.10 |
| 3 |
69A-22471-00-00 |
CASE, CYLINDER Price: $61.40 |
| 4 |
93210-27666-00 |
O-RING Price: $8.49 |
| 5 |
6H1-4388E-11-00 |
PLUG, TAPER SCREW Price: $6.60 |
| 6 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 7 |
69A-43814-00-00 |
PISTON, FREE Price: $19.90 |
| 8 |
93210-21001-00 |
O-RING This part replaces 93210-21276-00. Price: $6.49 |
| 9 |
69A-43872-00-00 |
RING, BACK UP Price: $14.20 |
| 10 |
69A-43810-00-00 |
TILT PISTON SUB ASSY Price: $489.65 |
| 11 |
69A-4380D-00-00 |
PISTON COMP. Price: $118.30 |
| 12 |
93210-21001-00 |
O-RING This part replaces 93210-21276-00. Price: $6.49 |
| 13 |
69A-43872-00-00 |
RING, BACK UP Price: $14.20 |
| 14 |
93505-32038-00 |
BALL Price: $0.50 |
| 15 |
65W-4386A-00-00 |
PIN, ABSORBER VALVE Price: $6.40 |
| 16 |
93604-06136-00 |
PIN, DOWEL Price: $2.55 |
| 17 |
69A-43857-00-00 |
SPRING, ABSORBER VALVE Price: $7.30 |
| 18 |
69A-43801-00-00 |
ROD Price: $288.05 |
| 19 |
69A-43811-01-00 |
SCREW, CYLINDER END Price: $111.20 |
| 20 |
6H1-43866-01-00 |
O-RING Price: $3.00 |
| 21 |
69A-43871-00-00 |
RING, BACK UP Price: $7.40 |
| 22 |
69A-43812-00-00 |
SEAL, DUST Price: $27.05 |
| 23 |
69A-43869-00-00 |
O-RING Price: $6.25 |
| 24 |
69A-43830-00-00 |
GEAR PUMP ASSY Price: $314.75 |
| 25 |
69A-43841-00-00 |
PISTON, SHUTTLE Price: $21.60 |
| 26 |
69A-4384M-00-00 |
PISTON, SHUTTLE 2 Price: $18.00 |
| 27 |
62Y-43894-00-00 |
SPRING, SHUTTLE RETURN Price: $6.15 |
| 28 |
69A-4384F-00-00 |
SEAL, MAIN VALVE Price: $3.55 |
| 29 |
6H1-43883-00-00 |
O-RING Price: $3.55 |
| 30 |
99080-03600-00 |
CIRCLIP This part replaces 99002-03600-00. Price: $3.55 |
| 31 |
69G-4382G-00-00 |
VALVE SEAT Price: $17.10 |
| 32 |
93210-12N52-00 |
O-RING Price: $4.15 |
| 33 |
6T4-43808-00-00 |
SEAT VALVE COMP. 1 Price: $37.75 |
| 34 |
69G-43853-00-00 |
SPRING, MAIN VALVE Price: $3.55 |
| 35 |
69J-4381C-00-00 |
FILTER 3 Price: $9.10 |
| 36 |
6H1-4384G-11-00 |
SEAL, RELIEF VALVE Price: $11.40 |
| 37 |
6H1-43844-10-00 |
PIN, VALVE SUPPORT Price: $13.35 |
| 38 |
69A-43855-00-00 |
SPRING, UP RELIEF Price: $7.90 |
| 39 |
6H1-43856-10-00 |
SPRING, DOWN RELIEF Price: $6.40 |
| 40 |
93501-08001-00 |
BALL Price: $1.15 |
| 41 |
6T4-4386A-00-00 |
PIN, ABSORBER VALVE This part replaces 69A-4386A-00-00. Price: $3.55 |
| 42 |
69A-43824-00-00 |
SPRING, DOWN RELIEF 2 Price: $7.40 |
| 43 |
69A-43848-10-00 |
ROD, MANUAL RELEASE Price: $53.30 |
| 44 |
93602-15250-00 |
PIN, DOWEL Price: $3.55 |
| 45 |
93210-06632-00 |
O-RING This part replaces 93210-06001-00. Price: $9.49 |
| 46 |
69A-43854-00-00 |
SPRING, MANUAL RELEASE Price: $6.15 |
| 47 |
69A-4381G-00-00 |
PIN 1 Price: $4.90 |
| 48 |
93501-08001-00 |
BALL Price: $1.15 |
| 49 |
6H1-43883-00-00 |
O-RING Price: $3.55 |
| 50 |
69A-4384H-00-00 |
SPRING Price: $6.25 |
| 51 |
93606-14081-00 |
PIN, DOWEL Price: $4.55 |
| 52 |
91312-05025-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 53 |
69A-43816-01-00 |
FILTER 1 Price: $10.40 |
| 54 |
N35-43862-10-00 |
O-RING Price: $3.55 |
| 55 |
69A-23129-00-00 |
GASKET, DRAIN PLUG Price: $11.40 |
| 56 |
69A-43878-00-00 |
BOLT, SOCKET Price: $5.00 |
| 57 |
69G-43880-10-00 |
MOTOR ASSY Price: $481.50 |
| 58 |
6AH-43804-00-00 |
STATOR ASSY Price: $116.55 |
| 59 |
67C-43879-10-00 |
SCREW, WITH WASHER Price: $4.20 |
| 60 |
67C-43805-11-00 |
ARMATURE ASSY Price: $183.50 |
| 61 |
67C-43862-10-00 |
O-RING Price: $6.60 |
| 62 |
67C-82181-10-00 |
CIRCUIT BREAKER COMP. Price: $60.45 |
| 63 |
67C-43892-10-00 |
BRUSH 2 Price: $10.70 |
| 64 |
67C-4386K-10-00 |
SPRING, BRUSH Price: $4.20 |
| 65 |
67C-4380F-10-00 |
PLATE, BRUSH HOLDER Price: $7.20 |
| 66 |
97602-04316-00 |
SCREW, PAN HEAD WITH WASHER Price: $2.05 |
| 67 |
69G-43881-10-00 |
FRAME, END Price: $793.50 |
| 68 |
67C-43882-10-00 |
OIL SEAL Price: $14.15 |
