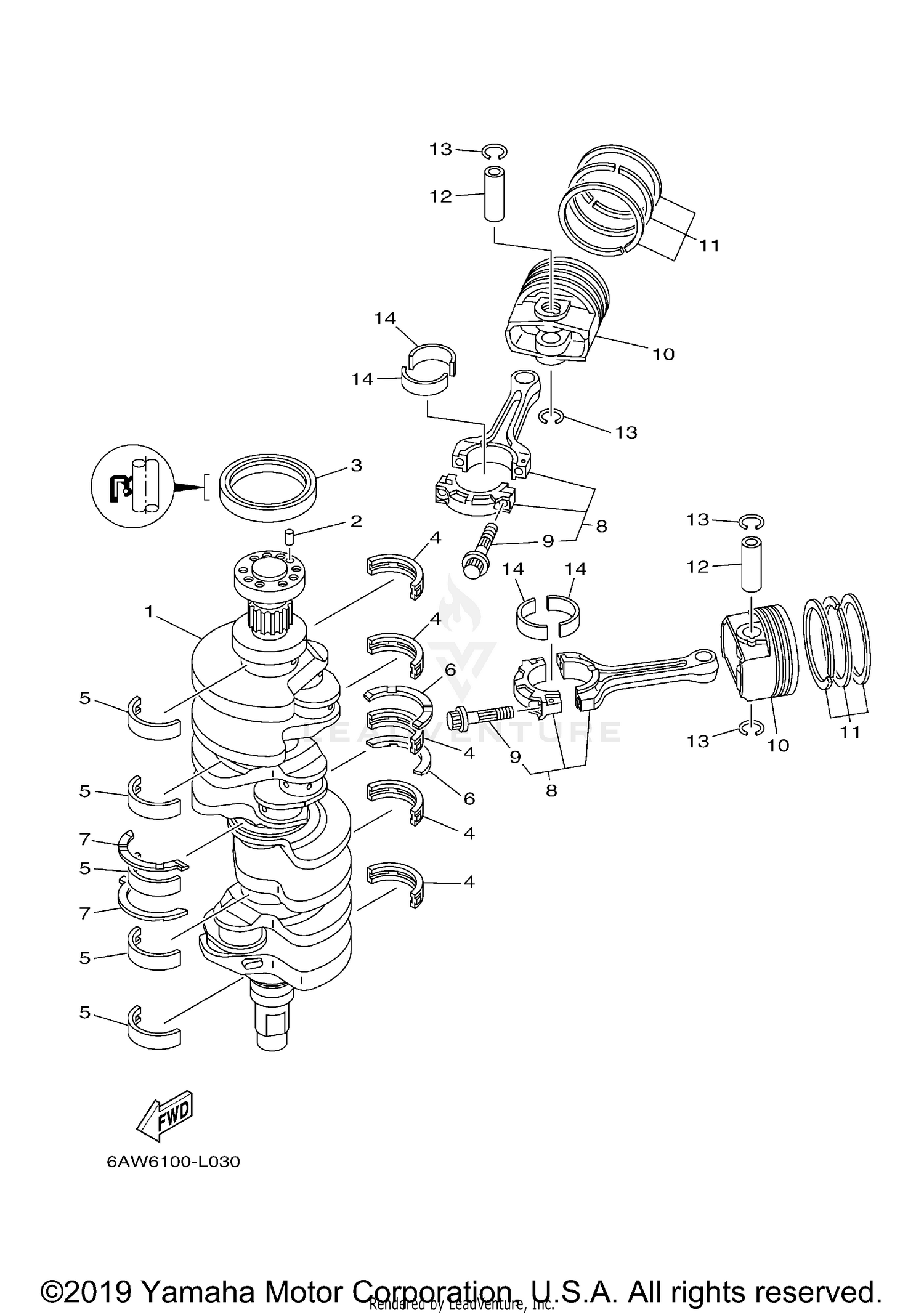

CRANKSHAFT PISTON
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AW-11411-10-00 | CRANKSHAFT Price: $2,792.05 |
| 2 | 93606-12019-00 | PIN, DOWEL Price: $4.60 |
| 3 | 93102-85004-00 | OIL SEAL Price: $57.70 |
| 6 | 6AW-11426-01-00 | BEARING, THRUST 1 Price: $18.10 |
| 7 | 6AW-11427-01-00 | BEARING, THRUST 2 Price: $18.10 |
| 8 | 6AW-W1165-00-00 | CONNECTING ROD ASSY Price: $236.95 |
| 9 | 63P-11654-10-00 | BOLT, CONNECTING ROD Price: $7.15 |
| 10 | 6AW-11631-10-93 | PISTON (STD) Price: $201.80 |
| 11 | 6AW-11603-00-00 | PISTON RING SET (STD) Price: $40.35 |
| 12 | 63P-11633-10-00 | PIN, PISTON Price: $24.65 |
| 13 | 63P-11634-00-00 | CLIP, PISTON PIN Price: $2.40 |
