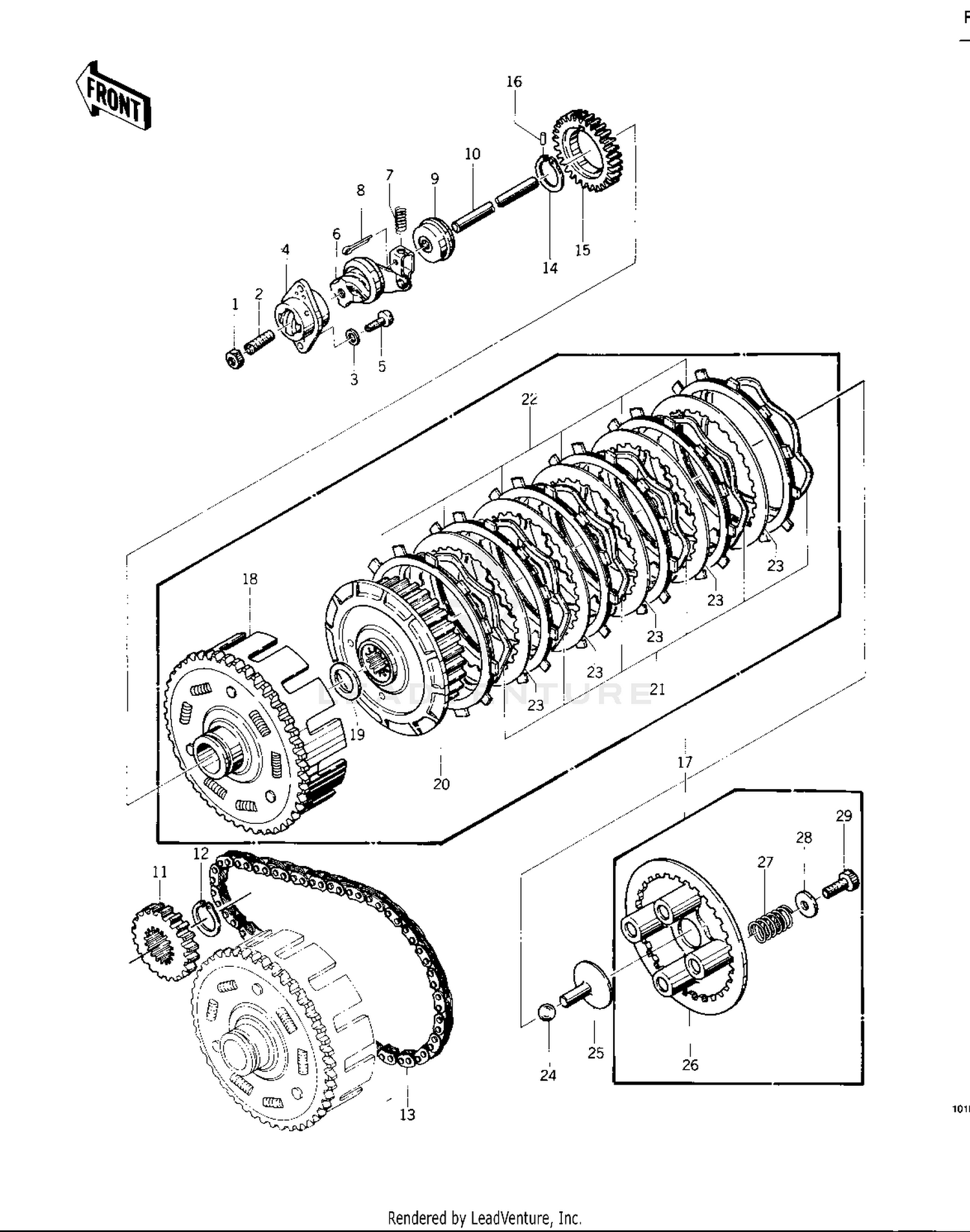

| Ref | Part Number | Description |
|---|
| 1 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 2 |
92014-014 |
SCREW,SLOTTED,8X25 Price: $6.35 |
| 3 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 4 |
13118-007 |
OUTER,CLUTCH RELEASE Price: $18.90 |
| 5 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 6 |
13102-013 |
INNER,CLUTCH RELEASE Price: $70.71 |
| 7 |
92081-069 |
SPRING-CLUTCH RELEASE Price: $7.51 |
| 8 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 9 |
92049-1041 |
OIL SEAL,PUSH ROD Price: $25.75 |
| 9 |
92050-068 |
OIL SEAL,PUSH ROD Price: $32.73 |
| 10 |
13116-1017 |
ROD,PUSH,CLUTCH Price: $47.00 |
| 11 |
13121-030 |
SPROCKET,PRIMARY Price: $58.06 |
| 12 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 13 |
13122-005 |
CHAIN,PRIMARY DRIVE Price: $343.04 |
| 14 |
480J3800 |
CIRCLIP, 38MM Price: $5.44 |
| 16 |
610A0606 |
PIN, DOWELL, 6X6 Price: $2.60 |
| 17 |
13081-074 |
CLUTCH-ASSY Price: $435.91 |
| 18 |
13095-045 |
HOUSING,CLUTCH Price: $232.12 |
| 19 |
92022-288 |
WASHER,CLUTCH THRUST Price: $12.83 |
| 20 |
13087-040 |
HUB,CLUTCH Price: $79.77 |
| 21 |
13229-005 |
RING,CLUTCH STEEL Price: $8.88 |
| 22 |
13088-1001 |
PLATE,FRICTION Price: $29.47 |
| 23 |
13089-026 |
PLATE-CLUTCH,T=2.0 Price: $12.80 |
| 25 |
13116-029 |
PUSHER,CLTCH SPRG PLT Price: $38.23 |
| 26 |
13187-007 |
PLATE,CLUTCH SPRING Price: $31.38 |
| 27 |
92081-1033 |
SPRING,CLUTCH Price: $7.38 |
| 28 |
13091-011 |
HOLDER,CLUTCH SPRING Price: $5.78 |
