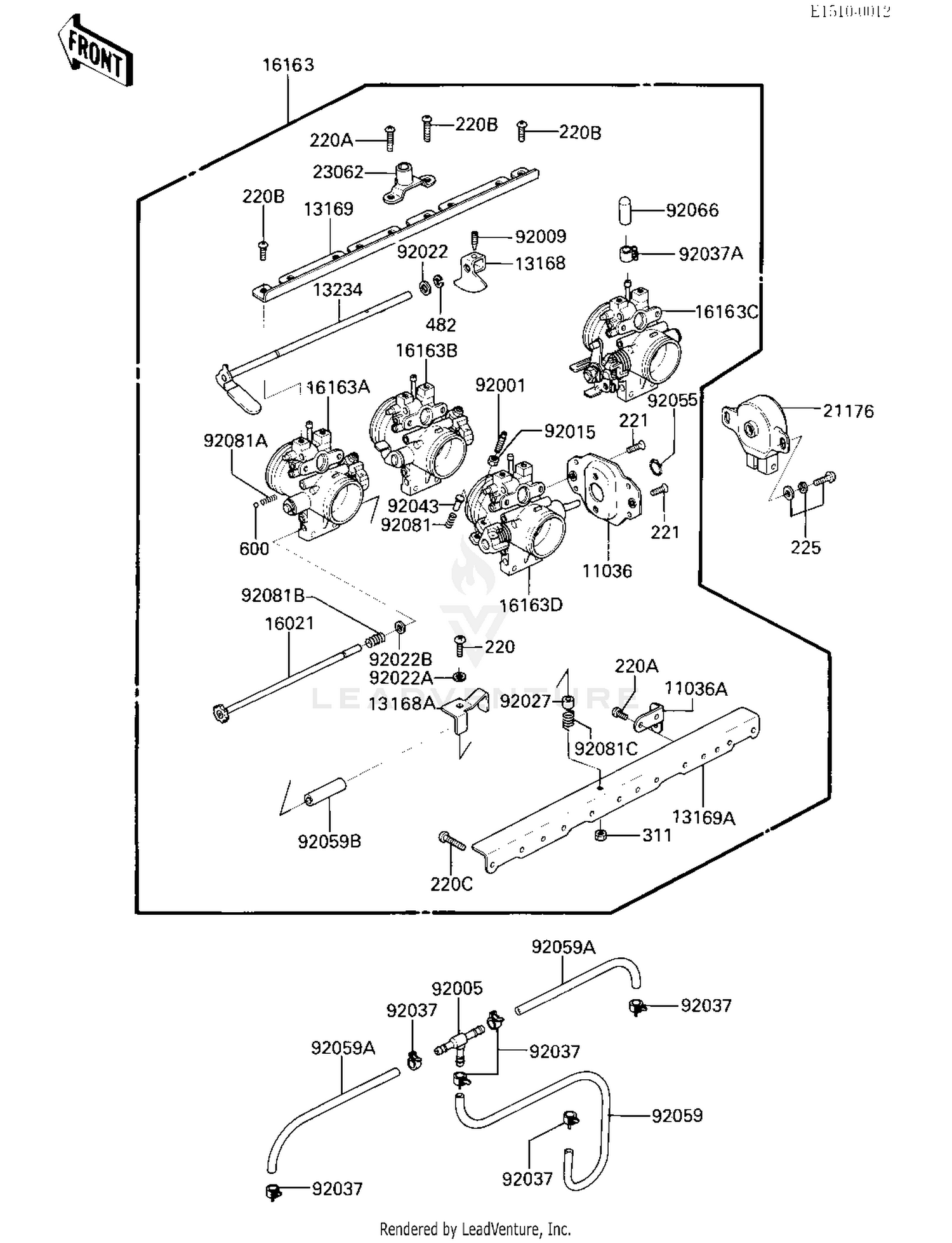

| Ref | Part Number | Description |
|---|
| 220 |
220B0418 |
SCREW-PAN-CROS,4X18 Price: $2.27 |
| 220A |
220C0506 |
SCREW-PAN-CROSS Price: $2.42 |
| 220B |
220AB0510 |
SCREW-PAN-CROS,5X10 This part replaces 220C0510. Price: $3.92 |
| 220C |
220AB0616 |
SCREW-PAN-CROS,6X16 This part replaces 220C0616. Price: $4.45 |
| 221 |
221AA0510 |
SCREW-CSK-CROS,5X10 This part replaces 221B0510. Price: $3.67 |
| 225 |
225AA0510 |
SCREW-PAN-WSP-CROS This part replaces 225B0510. Price: $1.40 |
| 311 |
311AA0400 |
NUT-HEX,4MM This part replaces 311B0400. Price: $0.53 |
| 482 |
482EA4000 |
CIRCLIP-TYPE-E This part replaces 482L4000. Price: $0.68 |
| 11036 |
11036-1481 |
BRACKET-A,THROTTLE SE Price: $48.40 |
| 11036A |
11036-1491 |
BRACKET-A,STAY LWR Price: $12.57 |
| 13168 |
13168-1118 |
LEVER,FAST IDLE Price: $12.03 |
| 13168A |
13168-1218 |
LEVER,IDLING LINK Price: $32.85 |
| 13169 |
13169-1521 |
PLATE,THROTTLE STAY,U Price: $31.39 |
| 13169A |
13169-1727 |
PLATE,THROTTLE STAY Price: $50.61 |
| 13234 |
13234-1008 |
SHAFT-COMP,FAST IDLE Price: $76.00 |
| 16021 |
16021-1044 |
SCREW-THROTTLE STOP Price: $41.62 |
| 16163 |
16163-1053 |
THROTTLE-ASSY Price: $549.07 |
| 16163A |
16163-1059 |
THROTTLE-ASSY,LH,OUTS Price: $111.24 |
| 16163B |
16163-1060 |
THROTTLE-ASSY,LH,INSI Price: $100.07 |
| 16163C |
16163-1061 |
THROTTLE-ASSY,RH,INSI Price: $114.89 |
| 16163D |
16163-1062 |
THROTTLE-ASSY,RH,OUTS Price: $84.73 |
| 21176 |
21176-1004 |
SENSOR,THROTTLE Price: $647.62 |
| 23062 |
23062-1030 |
BRACKET-COMP Price: $52.66 |
| 92001 |
92001-1447 |
BOLT,ADJUSTING Price: $12.04 |
| 92005 |
92005-1017 |
FITTING,TUBE,T-TYPE Price: $10.29 |
| 92009 |
92009-1147 |
SCREW,FAST IDLE LEVER Price: $9.12 |
| 92015 |
92015-1119 |
NUT,THROTTLE VLV ADST Price: $5.59 |
| 92022 |
16039-019 |
WASHER,PLAIN Price: $4.45 |
| 92022A |
16039-038 |
WASHER,PLAIN Price: $5.88 |
| 92022B |
92022-1361 |
WASHER,THROTTLE STOP Price: $3.02 |
| 92027 |
92027-1203 |
COLLAR,STEPPED Price: $9.91 |
| 92037 |
92037-1461 |
CLAMP,TUBE Price: $3.88 |
| 92037A |
92170-2043 |
CLAMP This part replaces 92037-1462. Price: $1.19 |
| 92043 |
92043-1079 |
PIN,THROTTLE VALVE Price: $6.40 |
| 92055 |
92055-1226 |
RING-O,THROTTLE SENSO Price: $9.47 |
| 92059 |
92059-1846 |
TUBE,4X9X650 This part replaces 92059-1043. Price: $10.19 |
| 92059A |
92059-1916 |
TUBE,4X9X935,WHITE This part replaces 92059-1162. Price: $19.09 |
| 92059B |
92059-1371 |
TUBE,ANTI-VIBRATION Price: $6.23 |
| 92066 |
92068-006 |
PLUG,12X25 Price: $4.26 |
| 92081 |
92081-1259 |
SPRING,THROTTLE VALVE Price: $5.31 |
| 92081A |
92081-1260 |
SPRING,FAST IDLE SHFT Price: $5.80 |
| 92081B |
92081-1538 |
SPRING,THROTTLE STOP Price: $3.22 |
| 92081C |
92081-1539 |
SPRING,IDLING LINK Price: $15.91 |
