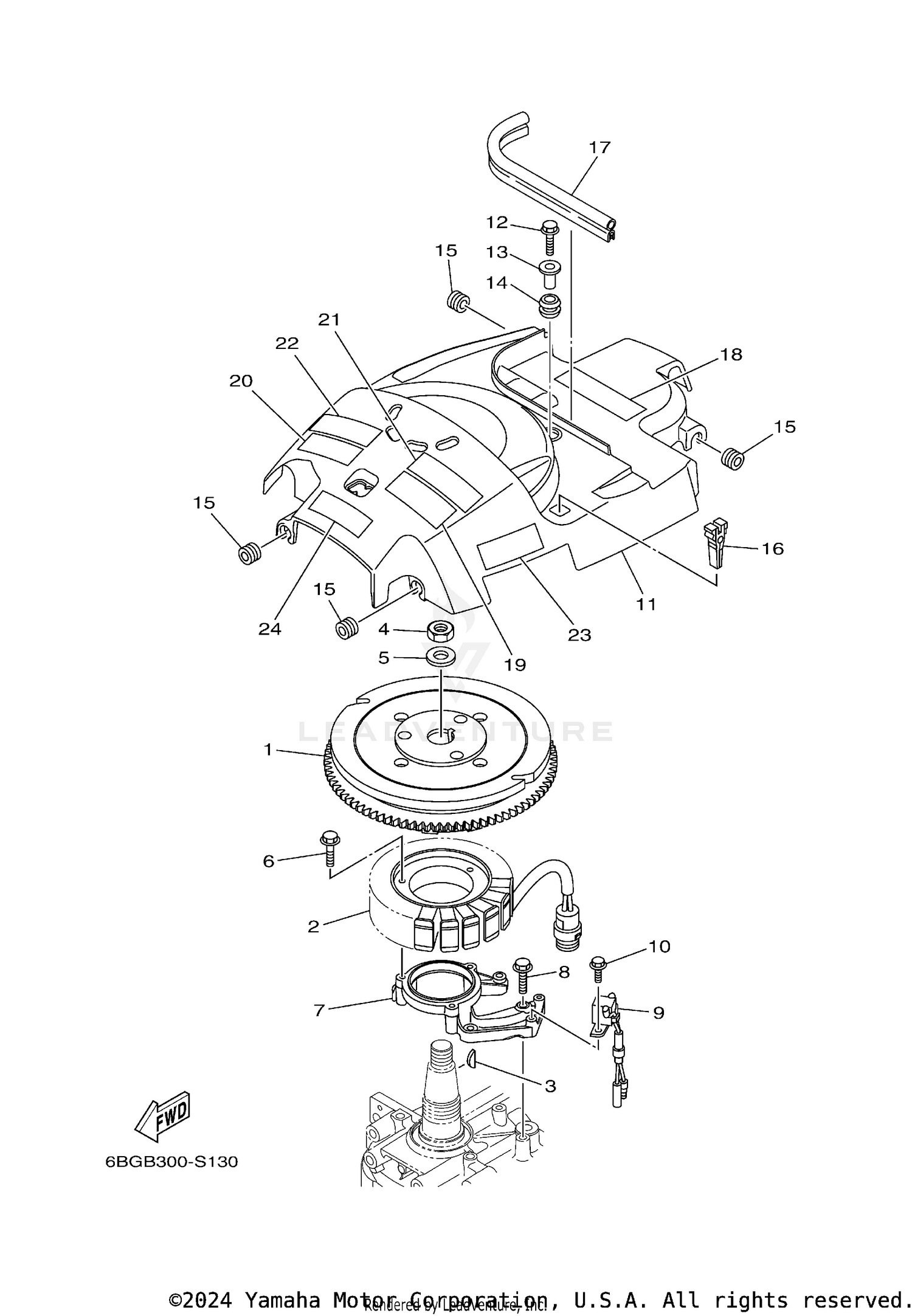

| Ref | Part Number | Description |
|---|
| 1 |
6BG-81450-00-00 |
ROTOR ASSY Price: $643.75 |
| 2 |
6BG-81410-00-00 |
STATOR ASSY Price: $424.25 |
| 3 |
6H4-11545-00-00 |
KEY, WOODRUFF Price: $9.35 |
| 4 |
90170-20137-00 |
NUT Price: $11.49 |
| 5 |
90201-21M18-00 |
WASHER, PLATE Price: $7.30 |
| 6 |
95024-06030-00 |
BOLT,FLANGE This part replaces 95023-06030-00. Price: $9.49 |
| 7 |
6BG-85561-00-00 |
BASE, MAGNETO Price: $79.90 |
| 8 |
95024-06030-00 |
BOLT,FLANGE This part replaces 95023-06030-00. Price: $9.49 |
| 9 |
6AH-85580-00-00 |
COIL, PULSER Price: $87.60 |
| 10 |
97595-05516-00 |
BOLT, WITH WASHER Price: $1.55 |
| 11 |
6BG-81337-11-00 |
COVER, FLYWHEEL Price: $59.15 |
| 12 |
95D95-06020-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 13 |
90387-06285-00 |
COLLAR Price: $4.82 |
| 14 |
90480-15M31-00 |
GROMMET Price: $7.70 |
| 15 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 16 |
67F-2812A-00-00 |
PULLER, FUSE Price: $5.55 |
| 17 |
6BG-42617-00-00 |
DAMPER, FORM Price: $32.10 |
| 18 |
6BG-13437-62-00 |
MARK, CAUTION Price: $3.55 |
| 19 |
6EE-81995-41-00 |
LABEL, WARNING Price: $20.30 |
| 20 |
6EE-81995-51-00 |
LABEL, WARNING Price: $20.30 |
| 21 |
6EE-81994-41-00 |
LABEL, SAFETY Price: $24.35 |
| 22 |
6EE-81994-51-00 |
LABEL, SAFETY Price: $26.40 |
| 23 |
6BG-81919-00-00 |
GRAPHIC, REGULATOR Price: $12.75 |
