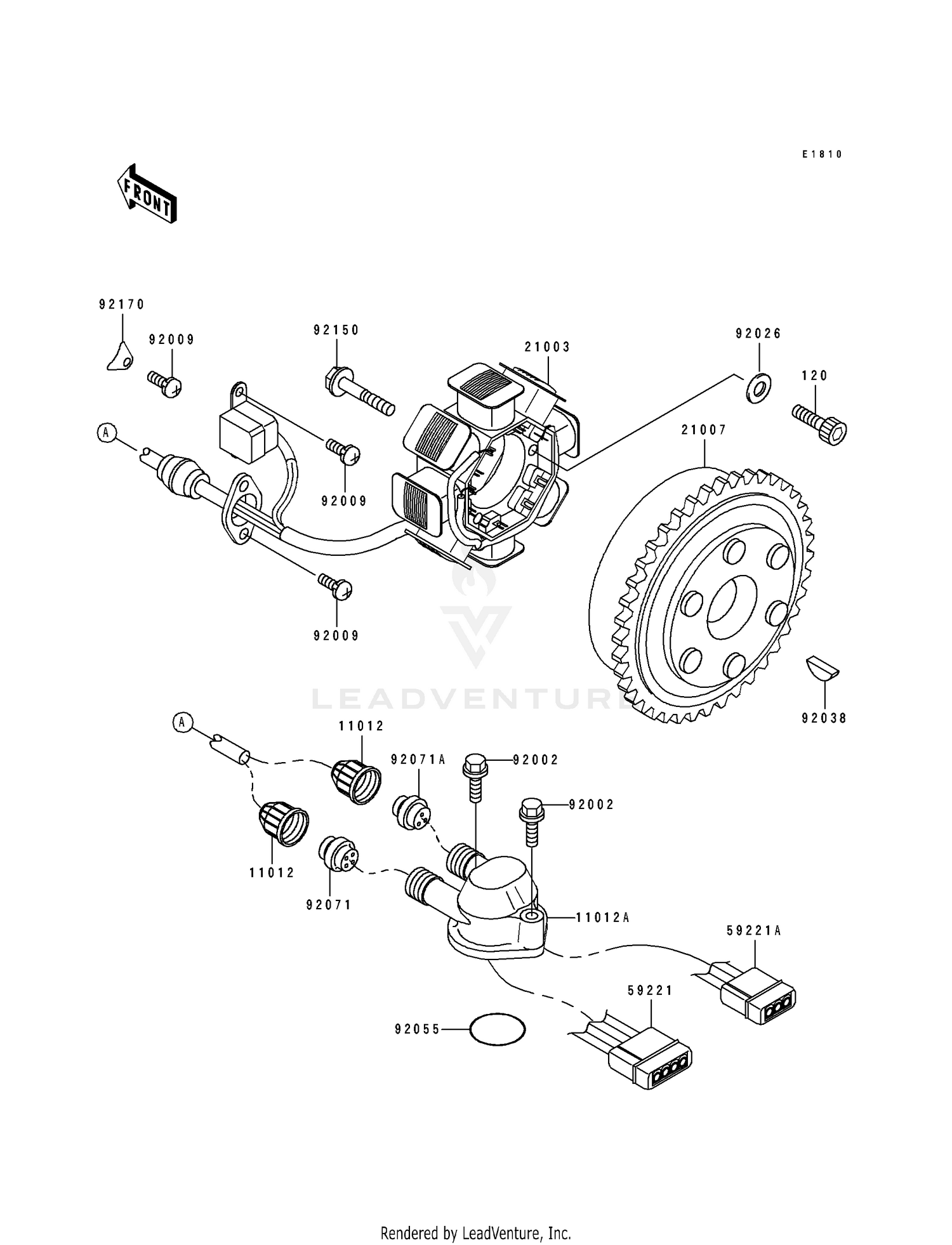

GENERATOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 11012-3005 | CAP Price: $5.54 |
| 11012A | 11012-3761 | CAP,ELECTRIC CASE Price: $18.04 |
| 21003 | 21003-3726 | STATOR Price: $777.18 |
| 21007 | 21007-3740 | ROTOR,MAGNETO This part replaces 21007-3712. Price: $868.49 |
| 59221 | 59221-3701 | CONNECTOR-CORD Price: $11.57 |
| 59221A | 59221-3703 | CONNECTOR-CORD Price: $8.29 |
| 92002 | 92002-3715 | BOLT,6X35 Price: $6.61 |
| 92009 | 92009-1296 | SCREW,5X12 Price: $3.92 |
| 92026 | 92026-094 | SPACER,6.3X12X1.0 Price: $9.18 |
| 92038 | 92038-001 | KEY,WOODRUFF Price: $4.96 |
| 92055 | 92055-3706 | RING-O Price: $4.45 |
| 92071 | 92071-3784 | GROMMET Price: $6.55 |
| 92071A | 92071-3786 | GROMMET Price: $7.84 |
| 92150 | 92150-3843 | BOLT Price: $19.88 |
| 92170 | 92170-3728 | CLAMP,HARNEES Price: $4.45 |
