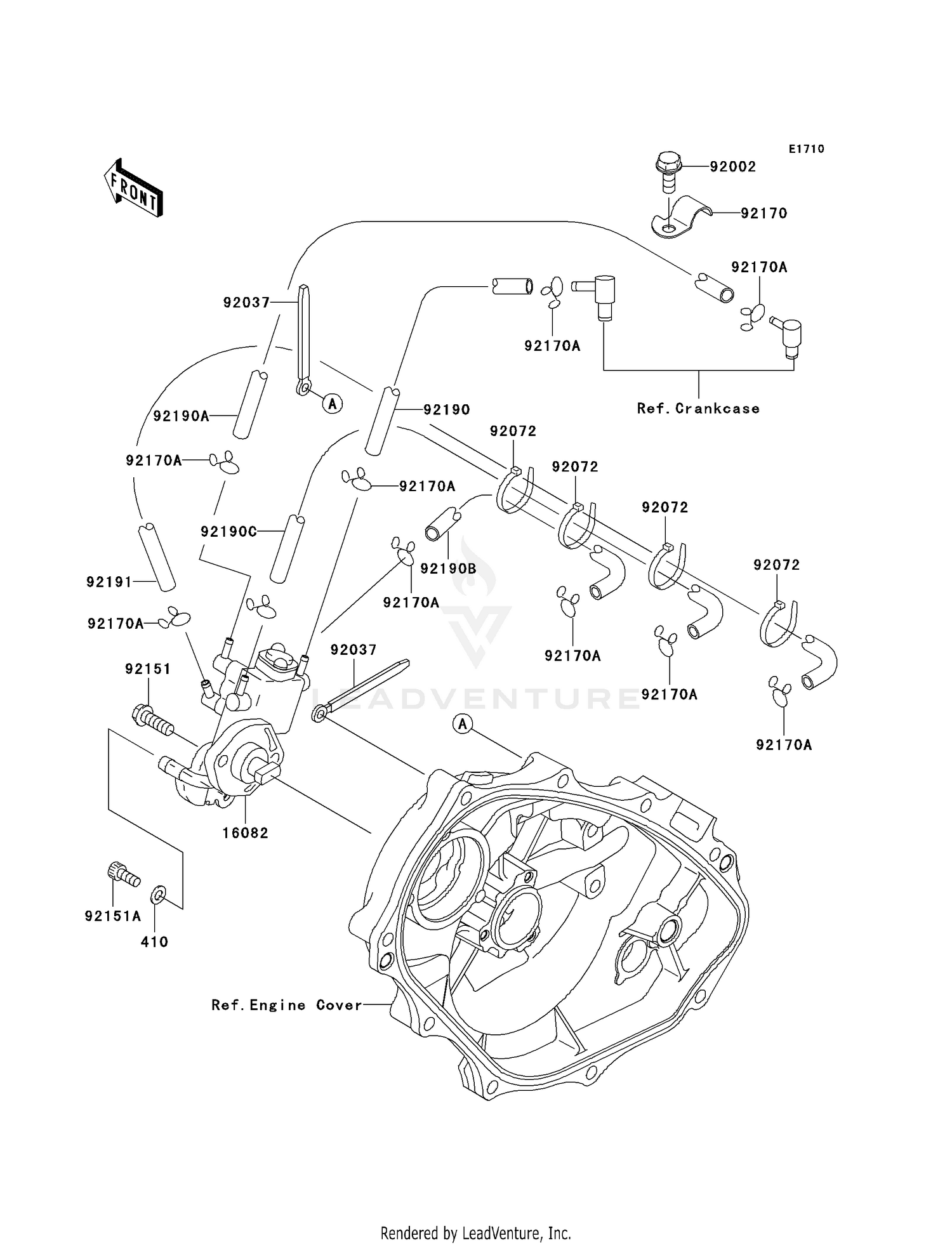

OIL PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 410 | 410S0500 | W-PLAIN-S,5MM Price: $1.59 |
| 16082 | 16082-3728 | PUMP-ASSY-OIL Price: $361.78 |
| 92002 | 92002-3728 | BOLT,6X16 Price: $4.69 |
| 92037 | 92037-3736 | CLAMP,L=100 Price: $5.52 |
| 92072 | 92072-3875 | BAND,L=100 Price: $4.15 |
| 92151 | 92151-3751 | BOLT,6X18 Price: $2.28 |
| 92151A | 92151-3772 | BOLT Price: $2.06 |
| 92170 | 92170-3736 | CLAMP Price: $8.44 |
| 92170A | 92170-3750 | CLAMP Price: $4.78 |
| 92190 | 92190-3907 | TUBE This part replaces 92190-1191. Price: $25.81 |
| 92190A | 92190-3907 | TUBE Price: $25.81 |
| 92190B | 92190-3945 | TUBE,3X6X420 Price: $16.56 |
| 92190C | 92190-3967 | TUBE,CARBURETOR Price: $20.97 |
