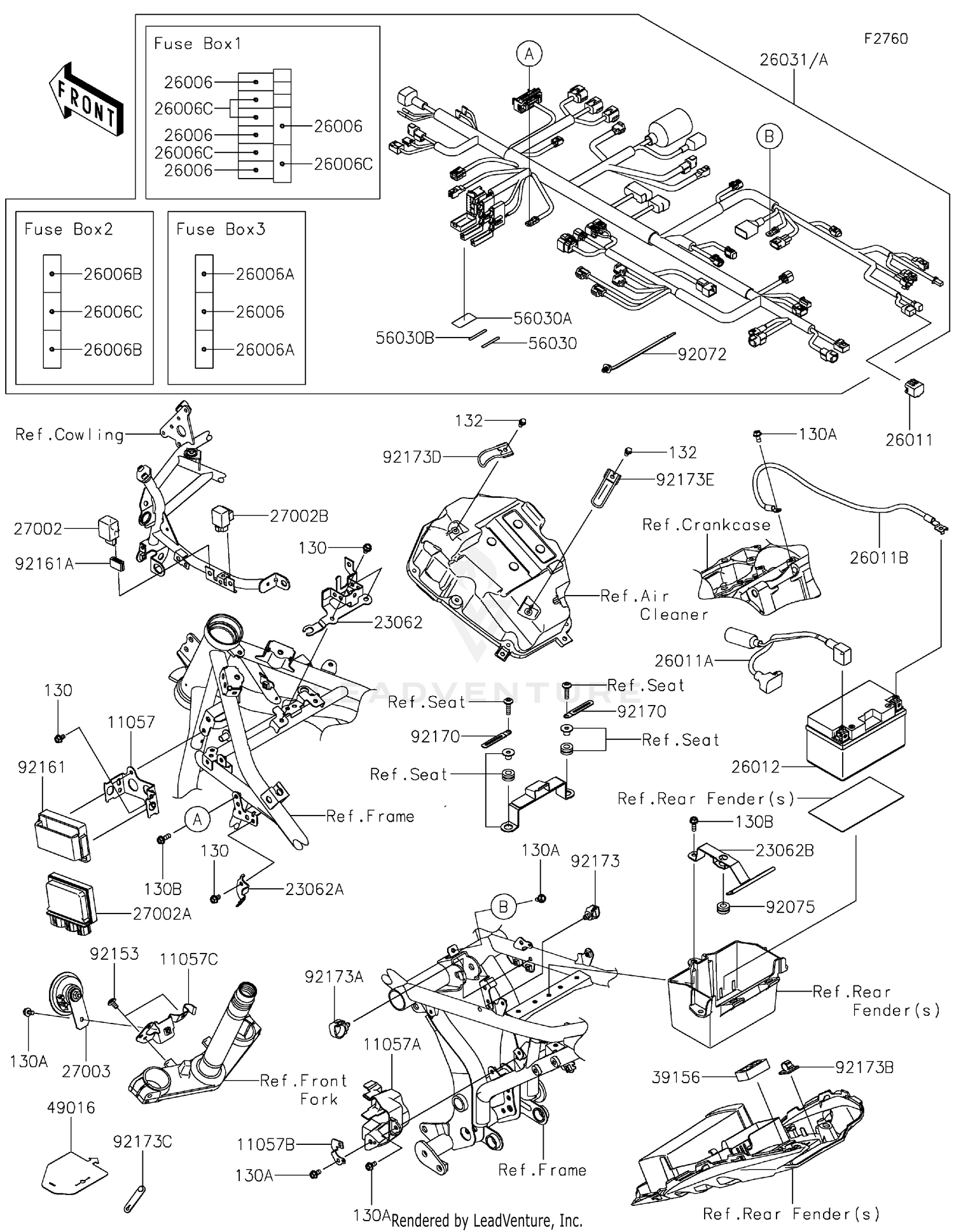

| Ref | Part Number | Description |
|---|
| 1 |
210261040 |
Hex. Flange Screw M6 X 10 Price: $1.49 |
| 2 |
293650053 |
Crimp Clamp Price: $3.19 |
| 3 |
293650125 |
Oetiker Clamp Price: $3.39 |
| 4 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 5 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 7 |
414415200 |
Spring Clamp Price: $0.90 |
| 8 |
414554800 |
Spring Clamp Price: $0.90 |
| 9 |
414655700 |
Spring Clamp Price: $0.74 |
| 11 |
414872700 |
Male Connector Price: $1.89 |
| 13 |
513033029 |
Universal Spring Clamp Price: $5.49 |
| 14 |
513033165 |
Formed Hose Price: $31.99 |
| 16 |
513033184 |
Fuel Pump Price: $84.99 |
| 17 |
513033842 |
Check Valve This part replaces 513033188. Price: $36.99 |
| 18 |
219704408 |
Tubing 16 Mm 1000Mm Long Price: $7.69 |
| 19 |
513033326 |
Shoulder Bushing Price: $15.49 |
| 20 |
513033327 |
Formed Hose Price: $25.99 |
| 22 |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 24 |
513033813 |
Gasket Price: $3.49 |
| 29 |
513033418 |
RH Cap Price: $15.49 |
| 30 |
513033419 |
LH Cap Price: $15.49 |
| 31 |
513033435 |
Grommet Price: $4.79 |
| 32 |
513033588 |
Insulating Foam Price: $15.49 |
| 34 |
513033596 |
Grommet Price: $21.99 |
| 35 |
513033606 |
Grommet Price: $21.99 |
| 36a |
710001995 |
Fuse, 0.5 Ampère Price: $8.49 |
| 39 |
513033969 |
Fuel Tank Cap This part replaces 513033720. Price: $27.99 |
| 11057 |
11057-0122 |
BRACKET,RELAY BOX Price: $7.68 |
| 11057A |
11057-0137 |
BRACKET,MAGNETIC SW. Price: $7.93 |
| 11057B |
11057-0138 |
BRACKET,COUPLER Price: $2.70 |
| 11057C |
11057-0184 |
BRACKET,HORN Price: $10.00 |
| 23062 |
23062-0875 |
BRACKET-COMP,VD SENSOR Price: $19.79 |
| 23062A |
23062-0882 |
BRACKET-COMP,FUSE BOX Price: $3.06 |
| 23062B |
23062-0899 |
BRACKET-COMP,BATTERY Price: $10.90 |
| 26006 |
26006-0001 |
FUSE,MINI BLADE,15A,BLUE Price: $6.12 |
| 26006A |
26006-0020 |
FUSE,MINI BLADE,25A,NATURAL Price: $6.57 |
| 26006B |
26006-1077 |
FUSE,MINI BLADE,5A,TAN Price: $4.87 |
| 26006C |
26006-1078 |
FUSE,MINI BLADE,10A,RED Price: $4.87 |
| 26011 |
26011-0275 |
WIRE-LEAD,CONNECTOR COVER Price: $14.13 |
| 26011A |
26011-0980 |
WIRE-LEAD,BATTERY(+) Price: $45.50 |
| 26011B |
26011-0981 |
WIRE-LEAD,BATTERY(-) Price: $30.38 |
| 26012 |
26012-1504 |
BATTERY,YTZ10S,12V 8.6AH This part replaces 26012-0564. Price: $205.86 |
| 27002 |
27002-0006 |
RELAY-ASSY,SIGNAL LAMP Price: $54.81 |
| 27002A |
27002-0050 |
RELAY-ASSY This part replaces 27002-0025. Price: $143.14 |
| 27002B |
27002-1062 |
RELAY-ASSY Price: $45.39 |
| 27003 |
27003-0065 |
HORN Price: $68.06 |
| 39156 |
39156-2136 |
PAD,CONNECTOR Price: $4.41 |
| 49016 |
49016-0645 |
COVER-SEAL Price: $6.48 |
| 56030 |
56030-0400 |
LABEL,FUSE BOX3 Price: $4.37 |
| 56030A |
56030-0705 |
LABEL,FUSE BOX1 Price: $4.37 |
| 56030B |
56030-0879 |
LABEL,FUSE BOX2 Price: $3.29 |
| 92072 |
92072-1414 |
BAND,OS170-FT7(BLACK) Price: $3.74 |
| 92075 |
92075-1880 |
DAMPER Price: $1.63 |
| 92153 |
92153-1948 |
BOLT,SOCKET,6X12 Price: $1.78 |
| 92161 |
92161-0203 |
DAMPER,RELAY BOX Price: $10.37 |
| 92161A |
92161-1443 |
DAMPER,15X25X8.5 Price: $1.94 |
| 92170 |
92170-1514 |
CLAMP Price: $4.31 |
| 92173 |
92173-0736 |
CLAMP,12MM DIA. Price: $5.05 |
| 92173A |
92173-0861 |
CLAMP Price: $3.02 |
| 92173B |
92173-1055 |
CLAMP,DRAIN Price: $6.34 |
| 92173C |
92173-1229 |
CLAMP,RUBBER PLATE Price: $3.94 |
| 92173D |
92173-1586 |
CLAMP,A/C CASE,FR Price: $5.61 |
