Home / MARINE / Marine Diesel Engines / D3-200I-E / METERS/IGNITION SWITCH ('78 C1/C1A)

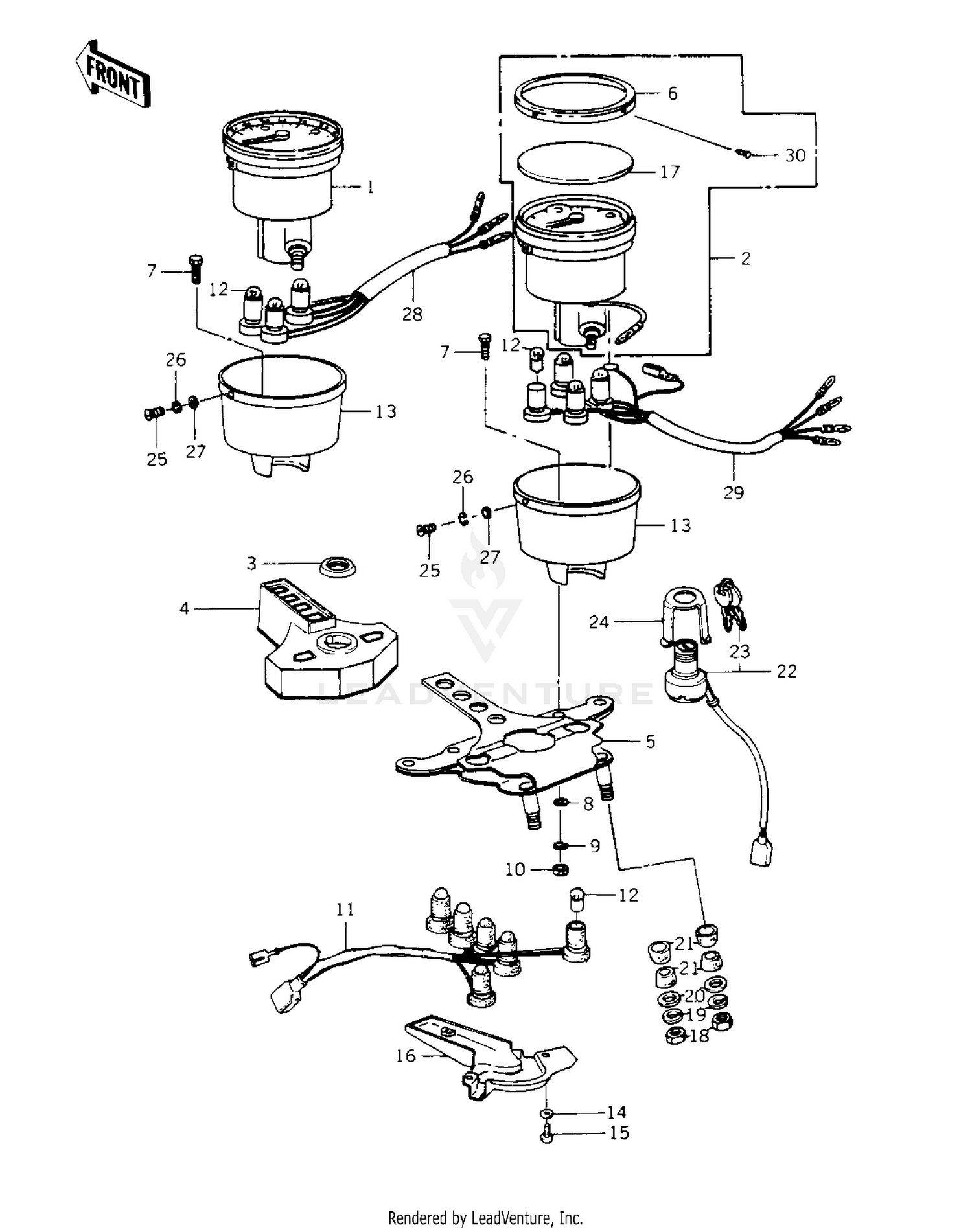

METERS/IGNITION SWITCH ('78 C1/C1A)

METERS/IGNITION SWITCH ('78 C1/C1A)

Parts (72)

RefPart NumberDescription
3 27007-004 NUT,IGNITION SW LOCK Price: $15.94
4 25023-015 COVER,METER,INDICATER Price: $220.31
5 25008-1002 BRACKET,METER Price: $77.53
6 14020-4001 RETAINER,SPEEDOMETER Price: $13.29
7 112BA0616 BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17
8 411AA0600 WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92
9 461DA0600 WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71
10 311AA0600 NUT-HEX,6MM This part replaces 311B0600. Price: $0.96
11 23008-1010 SOCKET,INDICATOR LAMP Price: $68.69
12 92069-018 BULB 12V 3W Price: $4.87
13 14025-1011 COVER,SPEEDOMETER Price: $53.74
14 461DA0300 WASHER-SPRING This part replaces 461F0300. Price: $0.47
15 220AA0308 SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59
16 25024-006 COVER,METER BRACKET Price: $28.55
17 23026-4001 LENS,SPEEDOMETER Price: $4.64
18 317AA0800 NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68
19 461DA0800 WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40
20 411AA0800 WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96
21 92075-080 DAMPER RUBBER Price: $10.35
22 27005-5003 SWITCH ASSY,IGITION Price: $95.06
23 27008-069-51 KEY SET,#751 Price: $49.14
23 27008-069-52 KEY SET,#752 Price: $43.05
23 27008-069-53 KEY SET,#753 Price: $49.11
23 27008-069-54 KEY SET,#754 Price: $49.14
23 27008-069-55 KEY SET,#755 Price: $25.71
23 27008-069-56 KEY SET,#756 Price: $42.97
23 27008-069-57 KEY SET,#757 Price: $42.94
23 27008-069-58 KEY SET,#758 Price: $25.71
23 27008-069-59 KEY SET,#759 Price: $49.11
23 27008-069-60 KEY SET,#760 Price: $25.71
23 27008-069-61 KEY SET #761 Price: $20.77
23 27008-069-62 KEY SET #762 Price: $37.39
23 27008-069-63 KEY SET #763 Price: $25.71
23 27008-069-64 KEY SET #764 Price: $21.86
23 27008-069-65 KEY SET #765 Price: $37.83
23 27008-069-66 KEY SET #766 Price: $21.83
23 27008-069-67 KEY SET #767 Price: $37.75
23 27008-069-68 KEY SET #768 Price: $28.99
23 27008-069-69 KEY SET #769 Price: $30.37
23 27008-069-70 KEY SET #770 Price: $37.75
23 27008-069-71 KEY SET #771 Price: $37.35
23 27008-069-72 KEY SET #772 Price: $31.46
23 27008-069-73 KEY SET #773 Price: $43.01
23 27008-069-74 KEY SET #774 Price: $25.71
23 27008-069-75 KEY SET #775 Price: $37.32
23 27008-069-76 KEY SET #776 Price: $37.32
23 27008-069-77 KEY SET #777 Price: $37.32
23 27008-069-78 KEY SET #778 Price: $37.39
23 27008-069-79 KEY SET #779 Price: $37.83
23 27008-069-80 KEY SET #780 Price: $37.32
23 27008-069-81 KEY SET #781 Price: $21.86
23 27008-069-82 KEY SET #782 Price: $37.75
23 27008-069-83 KEY SET #783 Price: $37.32
23 27008-069-84 KEY SET #784 Price: $27.48
23 27008-069-85 KEY SET #785 Price: $37.39
23 27008-069-86 KEY SET,#786 Price: $42.94
23 27008-069-87 KEY SET,#787 Price: $43.05
23 27008-069-88 KEY SET,#788 Price: $25.71
23 27008-069-89 KEY SET,#789 Price: $42.94
23 27008-069-90 KEY SET,#790 Price: $43.05
23 27008-069-91 KEY SET,#791 Price: $42.94
23 27008-069-92 KEY SET,#792 Price: $31.46
23 27008-069-93 KEY SET,#793 Price: $42.94
23 27008-069-94 KEY SET,#794 Price: $49.14
23 27008-069-95 KEY SET,#795 Price: $49.14
23 27008-1013 KEY,BLANK Price: $23.31
24 27019-003 HOLDER IGNITION SW Price: $23.16
25 220AA0408 SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68
26 461F0400 WASHER SPRING 4MM Price: $0.47
27 410AA0400 WASHER-PLAIN-SMALL,4MM This part replaces 410B0400. Price: $0.49
28 23008-1011 SOCKET,SPEEDOMETER,L Price: $35.93
29 23008-1009 SOCKET,SPEEDOMETER,R Price: $32.63
