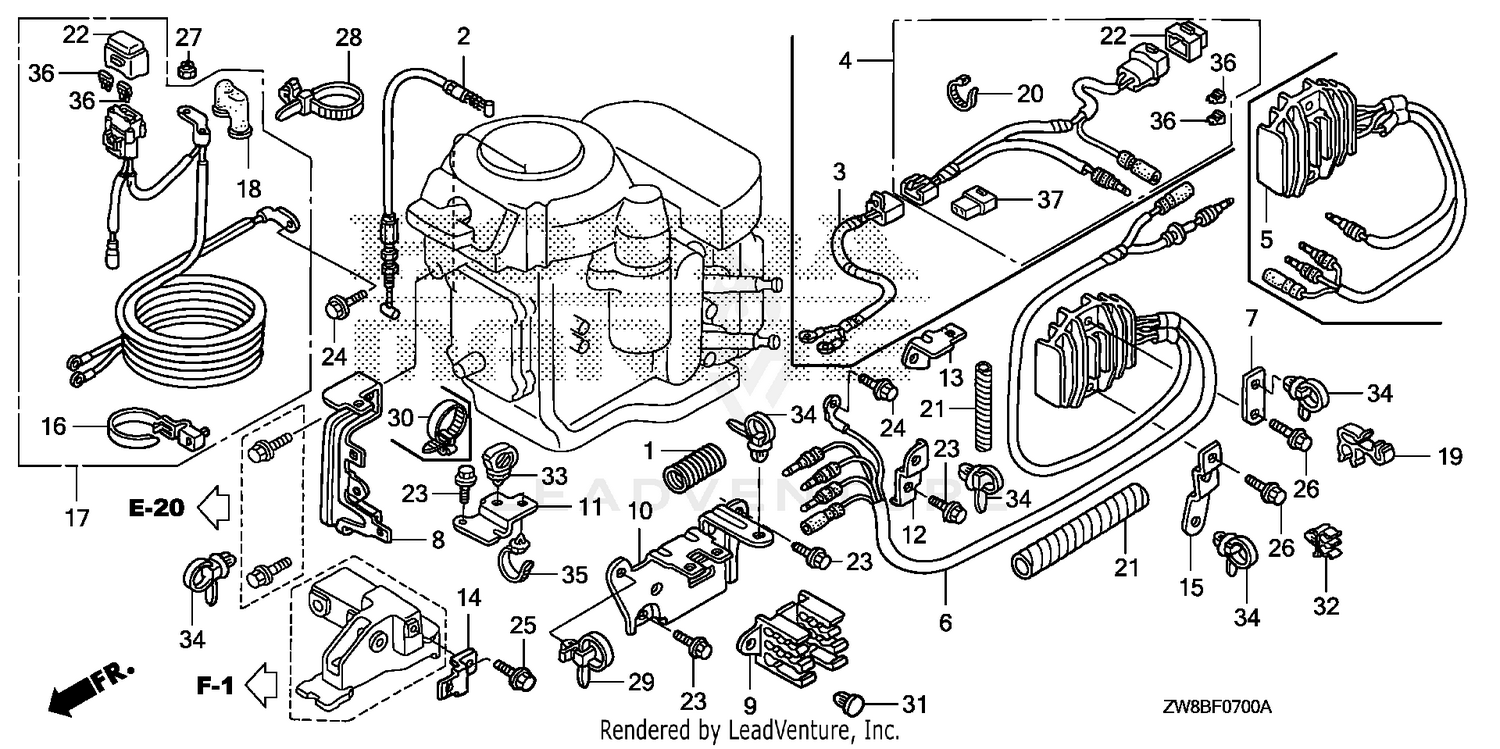

| Ref | Part Number | Description |
|---|
| 1 |
17735-ZW9-730 |
TUBE, CORRUGATED (15MM) Price: $2.56 |
| 2 |
17940-ZW9-010 |
SEE PART DETAILS - PRI; CABLE, NEUTRAL STARTING Price: $17.18 |
| 6 |
31750-ZW9-732 |
SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR Price: $138.64 |
| 7 |
32103-ZW9-020 |
BRACKET, CLIP F Price: $1.96 |
| 8 |
32108-ZW9-010 |
BRACKET, CONNECTOR A Price: $13.32 |
| 9 |
32109-ZV4-000 |
BRACKET, CONNECTOR (B) Price: $11.28 |
| 10 |
32111-ZW9-010 |
BRACKET, CONNECTOR C Price: $15.54 |
| 10a |
417224091 |
Fixed Flange Ass'y Price: $189.99 |
| 10bb |
417222758 |
Bushing Price: $22.49 |
| 10bc |
293370037 |
Circlip Price: $3.29 |
| 10c |
417223508 |
Ramp 716 Ass'y Price: $38.99 |
| 10e |
417223255 |
Thrust Washer Price: $2.09 |
| 10f |
417223694 |
Ramp Axle Price: $4.99 |
| 10g |
417224336 |
Nut-Stop Elastic DIN.985 Price: $0.89 |
| 10hc |
293370065 |
Circlip Price: $1.00 |
| 10j |
417223752 |
Seat Spring Price: $15.49 |
| 10k |
417223745 |
Clutch Spring Price: $17.49 |
| 10m |
250000580 |
Torx Screw M6 X 30 Price: $6.19 |
| 10n |
417223865 |
Governor Cup Ass'y Price: $189.99 |
| 10p |
417223767 |
Roller Price: $7.99 |
| 10q |
417223257 |
Roller Axle Price: $7.09 |
| 10r |
293300185 |
O-Ring Price: $1.19 |
| 10s |
417223919 |
Slider Shoe Price: $3.99 |
| 11 |
32112-ZW9-010 |
BRKT, STARTER CABLE Price: $5.72 |
| 12 |
32114-ZVL-000 |
BRACKET, CLIP B Price: $3.96 |
| 13 |
32115-ZW9-010 |
BRACKET, FUSE CASE Price: $5.20 |
| 15 |
32118-ZW9-731 |
BRACKET, E-CLIP Price: $6.20 |
| 16 |
32121-HA0-003 |
BAND, WIRE Price: $10.70 |
| 17 |
32410-ZW9-731 |
CABLE ASSY., STARTER Price: $242.16 |
| 18 |
32412-ZY1-801 |
COVER, MAGNETIC SWITCH TERMINAL Price: $5.62 |
| 19 |
32765-PD6-000 |
CLAMP, DISTRIBUTOR WIRE Price: $6.88 |
| 20 |
250200144 |
Conical Spring Washer M14 Price: $4.49 |
| 21 |
36104-ZW9-003 |
TUBE, SPIRAL A Price: $10.48 |
| 22 |
38218-ZW9-003 |
COVER ASSY., FUSE (20A) Price: $8.94 |
| 23 |
90011-ZW9-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 24 |
90013-ZW9-000 |
BOLT, FLANGE (6X12) Price: $2.02 |
| 26 |
90114-ZW9-030 |
BOLT (6X26) (CT200) Price: $2.68 |
| 27 |
90204-ZY1-003 |
NUT, LOCK (6MM) Price: $5.48 |
| 28 |
90650-KV6-003 |
BAND, WIRE (95MM) Price: $4.30 |
| 29 |
90672-SA0-003 |
STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK) Price: $9.42 |
| 30 |
417300432 |
Pulley Drive Bolt Price: $42.99 |
| 31 |
90683-ZV4-003 |
CLIP, ANCHOR Price: $2.48 |
| 32 |
90684-SB3-003 |
CLIP, FUEL TUBE (Honda Code 2663425). Price: $7.94 |
| 34 |
91540-S30-003 |
CLIP, HARNESS BAND (151.5MM) (NATURAL) Price: $4.30 |
| 35 |
91547-SF4-003 |
BAND, WIRE HARNESS (123.5MM) (BLUE) Price: $8.00 |
| 100ac |
417127016 |
Pulley Roller Price: $25.99 |
| 100ad |
417127294 |
Pivot Stud Price: $14.99 |
| 100ae |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 100af |
250400070 |
Spring Pin Price: $2.09 |
| 100bb |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L Price: $19.49 |
| 100bc |
293370049 |
Circlip Price: $5.09 |
| 100cb |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L Price: $19.49 |
| 100cc |
293370049 |
Circlip Price: $5.09 |
| 100d |
417127467 |
Release Spring Price: $47.99 |
| 100f |
250000757 |
Button Head Torx Screw M8 X 25 S.Gr Price: $2.09 |
| 100g |
415129604 |
Calibration Ass'y Price: $22.49 |
| 100h |
250000981 |
Socket Screw M5 X 25 Price: $1.69 |
| 100j |
234051410 |
Flat Washer M5 Price: $0.55 |
| 100k |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 100m |
417127155 |
Washer Price: $8.39 |
| 100n |
504152574 |
Ball Bearing Price: $35.99 |
| 200 |
417300585 |
Drive Belt Price: $154.99 |
| 300 |
417300620 |
Belt Guard This part replaces 417300479. Price: $75.99 |
| 330 |
417300525 |
Front Retaining Hook Price: $10.99 |
| 340 |
390909200 |
Avex Rivet Price: $0.30 |
| 360 |
417300557 |
CVT Cooling Duct Price: $29.99 |
| 370 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 450 |
417300583 |
Front Guard Support Price: $14.99 |
| 480 |
207561044 |
Flange Screw M6 X 10, Scotch Grip Price: $7.39 |
| 500 |
417300581 |
Rear Guard Support Price: $14.49 |
| 505 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 510 |
250000755 |
Torx Screw M6 X 16 Price: $0.89 |
