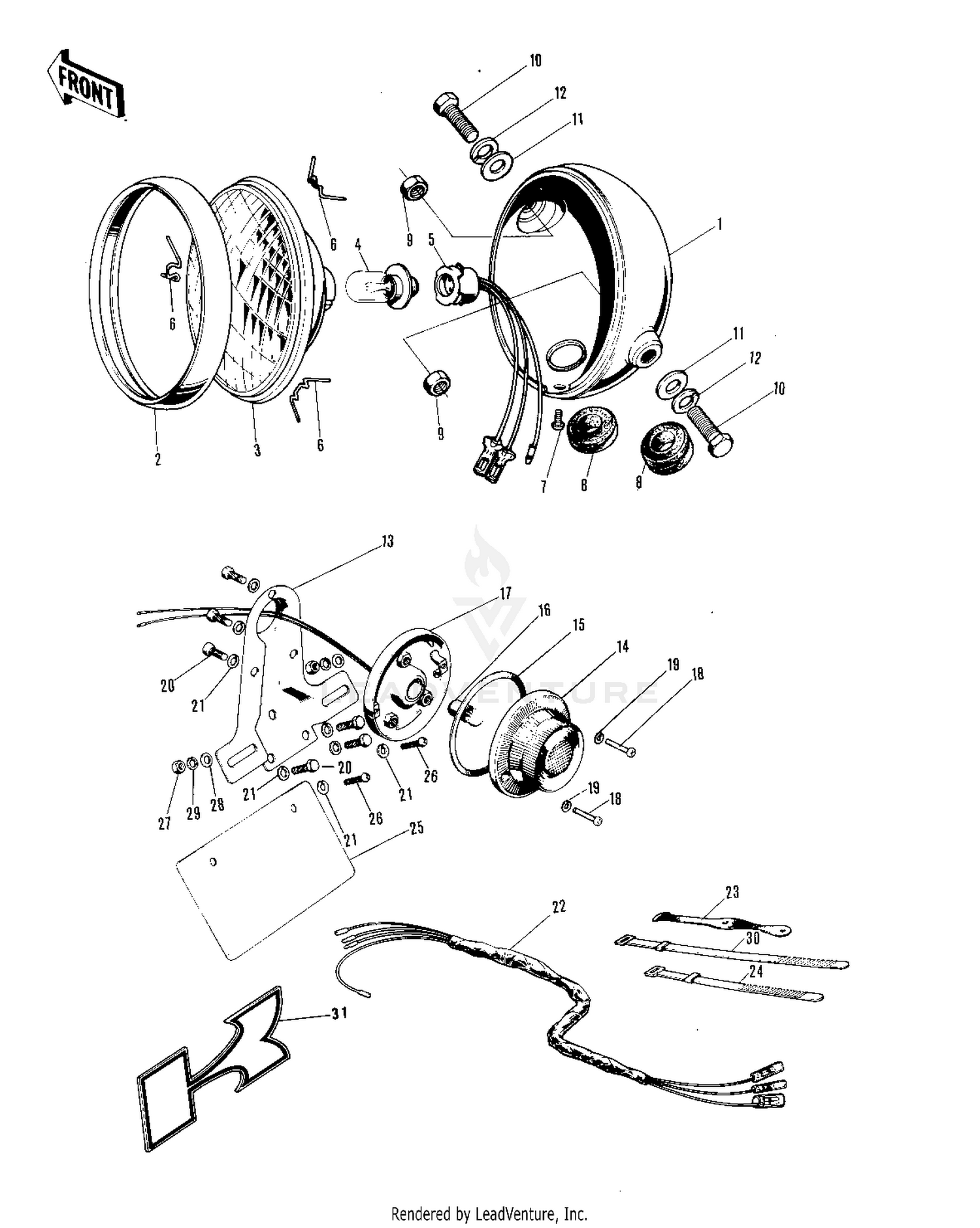

| Ref | Part Number | Description |
|---|
| 1 |
23005-1006-21 |
BODY,HD LIGHT,FL BLCK Price: $89.08 |
| 2 |
23006-043 |
RIM,HEAD LAMP Price: $60.00 |
| 3 |
23007-010 |
LENS UNIT-HEAD LAMP Price: $59.77 |
| 4 |
92069-031 |
BULB 6V 25/25W Price: $10.07 |
| 5 |
23008-009 |
SOCKET HEAD LAMP Price: $18.63 |
| 6 |
23009-014 |
CLAMP,HEAD LAMP LENS Price: $5.41 |
| 7 |
222E0508 |
SCREW OVL CNTSNK 5X8 This part replaces 222E0508A. Price: $1.27 |
| 8 |
23023-007 |
GROMMET WIRING HARNES Price: $3.76 |
| 9 |
92016-027 |
NUT 10MM Price: $4.16 |
| 10 |
112B1020 |
BOLT-UPSET,10X20 Price: $3.71 |
| 11 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 12 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 13 |
35028-005-10 |
BKT-TAIL LAMP,BLACK Price: $21.68 |
| 14 |
23026-009 |
LENS-TAIL LAMP Price: $87.43 |
| 15 |
23028-012 |
GASKET-TAIL LAMP LENS Price: $5.72 |
| 16 |
92069-020 |
BULB 6V 10/3W Price: $10.08 |
| 17 |
23027-025 |
SOCKET-TAIL LAMP Price: $31.23 |
| 18 |
220E0410A |
SCREW-PAN HEAD,4X10 Price: $3.77 |
| 19 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 20 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 21 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 22 |
26001-057 |
WIRING HARNESS,MAIN Price: $98.90 |
| 23 |
92072-018 |
BAND RUBBER Price: $2.87 |
| 24 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 25 |
35027-006 |
BRACKET-LICENCE PLATE Price: $11.93 |
| 26 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 27 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 28 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 29 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 30 |
92072-032 |
BAND,L=218 Price: $5.00 |
