| Ref | Part Number | Description |
|---|
| 5 |
219702967 |
Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118. Price: $47.99 |
| 7 |
417222671 |
Lever Price: $49.99 |
| 8 |
417222947 |
Roller Price: $21.99 |
| 9 |
417004302 |
Stopper Washer Price: $15.99 |
| 10 |
417222594 |
Pin Price: $15.49 |
| 11 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 13 |
250400060 |
Cotter Pin This part replaces 732958001. Price: $2.09 |
| 14 |
417223164 |
Lever Axle Price: $4.59 |
| 15 |
417222312 |
Spring Seat Price: $9.79 |
| 18 |
417009204 |
Bushing Price: $17.49 |
| 19 |
413703100 |
Loctite 609, 10 ml Price: $26.99 |
| 20 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 Price: $2.89 |
| 21 |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 23 |
417222546 |
Ramp 414 Price: $39.99 |
| 24 |
250400050 |
Spring Pin M10 X 22 Price: $3.09 |
| 25 |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip Price: $4.19 |
| 26 |
417223501 |
Calibration Screw This part replaces 417223460. Price: $14.49 |
| 27 |
417005600 |
Washer Price: $4.19 |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 29 |
732401030 |
O-Ring Price: $1.19 |
| 32 |
250000751 |
Torx Screw M8 X 16 This part replaces 250000243. Price: $6.29 |
| 33 |
417009205 |
Guard Price: $21.99 |
| 34 |
250000412 |
Hex. Flange Screw M6 X 12, Scotch Grip Price: $4.19 |
| 36 |
250200006 |
Spring Washer 14 mm Price: $7.19 |
| 37 |
417300296 |
DRIVE PULLEY BOLT - Call your local BRP dealership Price: $33.99 |
| 38a |
516005503 |
Decal English This part replaces 516004542. Price: $0.01 |
| 38b |
XXX |
Not Available As Spare Parts Price: Call Us |
| 40 |
417127016 |
Pulley Roller Price: $25.99 |
| 41 |
417127259 |
Pivot Stud This part replaces 417127128. Price: $21.99 |
| 42 |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 43 |
414753500 |
Circlip Price: $0.73 |
| 44b |
293370049 |
Circlip Price: $5.09 |
| 45b |
293370049 |
Circlip Price: $5.09 |
| 47 |
417127116 |
Swivel Abutment Price: $9.59 |
| 48 |
250000283 |
Torx Screw M8 X 25, Scotch Grip Price: $6.39 |
| 49 |
415129604 |
Calibration Ass'y This part replaces 417127248. Price: $22.49 |
| 50 |
205052544 |
Socket Screw M5 X 25 Price: $1.69 |
| 51 |
234051410 |
Flat Washer M5 Price: $0.55 |
| 52 |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 53 |
417127155 |
Washer Price: $8.39 |
| 55 |
504152574 |
Ball Bearing Price: $35.99 |
| 56a |
413703100 |
Loctite 609, 10 ml Price: $26.99 |
| 56b |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership Price: $25.99 |
| 58 |
417300357 |
Belt Guard Price: $93.99 |
| 59 |
516005509 |
Safety Belt Guard Decal This part replaces 516004595. Price: $0.01 |
| 60 |
417300380 |
Reinforcement Price: $7.49 |
| 61 |
390909200 |
Avex Rivet Price: $0.30 |
| 62 |
417300381 |
Guide Price: $11.99 |
| 63 |
417300356 |
Side Protector Price: $14.99 |
| 64 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 65 |
417300360 |
FRONT BELT GUARD BRACKET - Call your local BRP dealership Price: $14.49 |
| 66 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 67 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300375. Price: $31.99 |
| 68 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. Price: $1.49 |
| 69 |
114045200 |
Hair Pin Price: $11.49 |
| 70 |
508000599 |
Velcro Strip Price: $14.49 |
| 71 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 72 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 73 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 74 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 75 |
XXX |
Not Available As Spare Parts Price: Call Us |

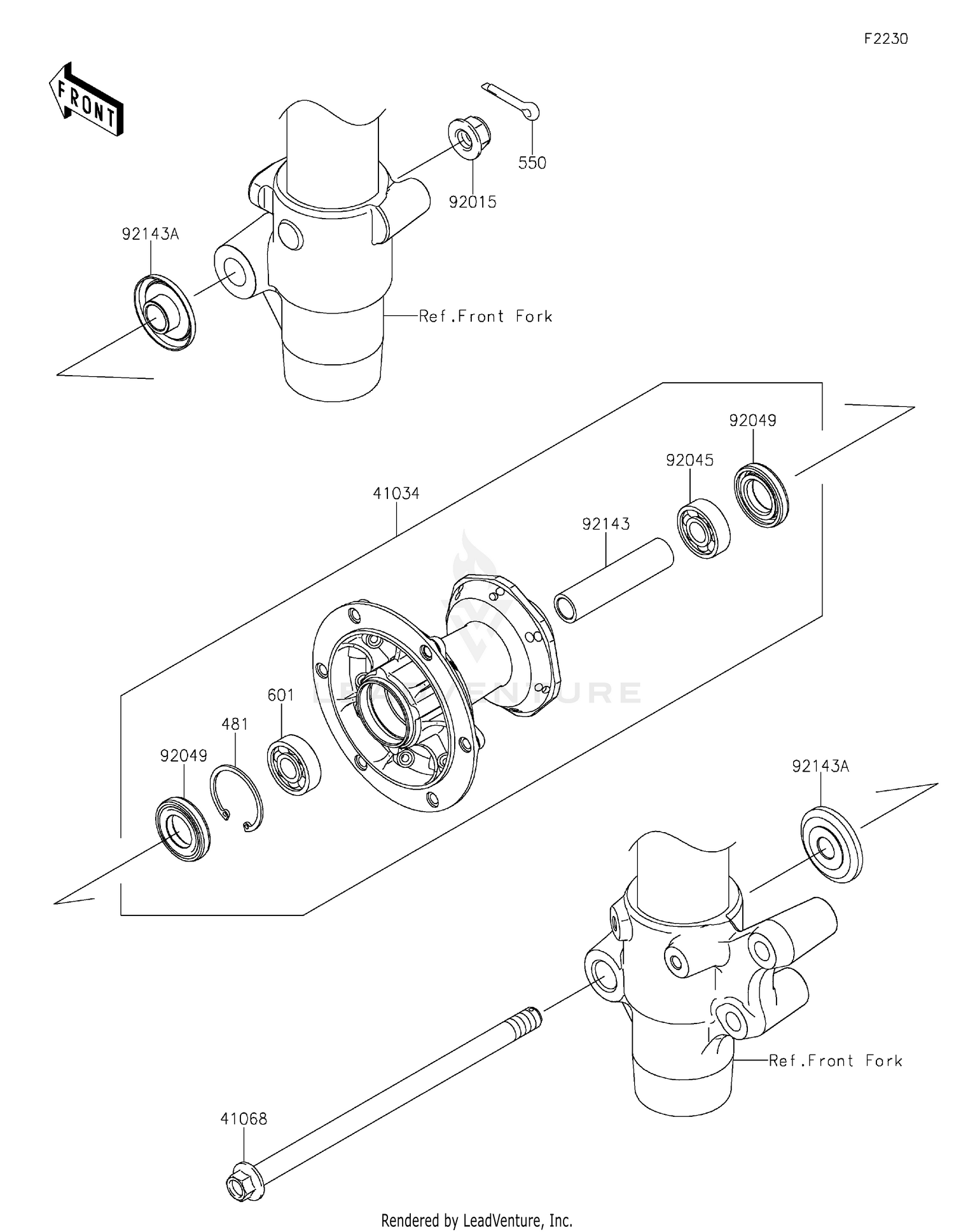

| 481 |
481J3700 |
CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 550 |
550AA2520 |
PIN-COTTER,2.5X20 Price: $1.36 |
| 601 |
601B6301UU |
BEARING-BALL,#6301UUC3 Price: $25.54 |
| 41034 |
41034-1310 |
DRUM-ASSY,FRONT BRAKE Price: $218.95 |
| 41068 |
41068-1333 |
AXLE,FR Price: $29.72 |
| 92015 |
92015-1433 |
NUT,LOCK,FLANGED,12MM Price: $8.86 |
| 92045 |
92045-1062 |
BEARING-BALL,TMB201LLUC3/2A Price: $26.08 |
| 92049 |
92049-1257 |
SEAL-OIL,TC20376.5 Price: $9.28 |
| 92143 |
92143-1935 |
COLLAR,FR BRAKE DRUM,L=76 Price: $7.83 |
