| Ref | Part Number | Description |
|---|
| 1 |
503196633 |
Suspension Rail 120 This part replaces 503192152. Price: $244.99 |
| 2 |
503191301 |
Black Slider Shoe 120" Price: $29.49 |
| 3 |
208562531 |
Phillips Screw M6 X 25 Price: $2.19 |
| 4 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 5 |
503191137 |
Runner Protector Price: $12.49 |
| 6 |
207652544 |
Hex. Flange Screw M5 X 25 Price: $0.52 |
| 7 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. Price: $2.09 |
| 8 |
391301600 |
Washer Price: $0.50 |
| 9 |
503190576 |
Rubber Stopper Price: $13.49 |
| 10 |
293150142 |
Pop Rivet 3/16" Price: $2.39 |
| 11 |
503191273 |
Washer Price: $1.39 |
| 12 |
503191291 |
Rubber Stopper Price: $19.99 |
| 13 |
503190741 |
RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership Price: $15.49 |
| 14 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. Price: $1.39 |
| 15 |
207053544 |
Hex. Screw M5 X 35 Price: $1.19 |
| 16 |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 18 |
503190396 |
Ball Bearing Price: $9.49 |
| 19 |
415129371 |
Retaining Ring Price: $12.49 |
| 21 |
503190396 |
Ball Bearing Price: $9.49 |
| 22 |
415129371 |
Retaining Ring Price: $12.49 |
| 23 |
503193894 |
Casted Support This part replaces 503191833. Price: $16.99 |
| 24 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. Price: $4.49 |
| 25 |
503191820 |
Wheel Cup M6 Price: $5.09 |
| 26 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 27 |
207662544 |
Hex. Flange Screw M6 X 25 Price: $0.66 |
| 28 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. Price: $2.19 |
| 29 |
503190434 |
Labyrinth Seal Price: $6.19 |
| 30 |
570063600 |
Wheel Cap Price: $3.59 |
| 32 |
503192583 |
Tensioner This part replaces 503190380. Price: $8.49 |
| 33 |
207162544 |
Hex. Screw M6 X 25 Price: $1.19 |
| 34 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 35 |
230100044 |
HEX. SCREW M10 X 100 - Call your local BRP dealership Price: $2.79 |
| 36 |
233601416 |
Elastic Locking Nut M10 X 1.5 Price: $1.69 |
| 37 |
503191804 |
RAIL REINFORCEMENT - Call your local BRP dealership Price: $38.99 |
| 38 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 39 |
503189157 |
Washer Price: $3.39 |
| 40 |
207183044 |
Hex. Screw M8 X 30 Price: $1.19 |
| 41 |
503191263 |
Rear Spacer Price: $18.49 |
| 42 |
503190428 |
Rear Wheel Spacer Price: $8.29 |
| 44 |
503190396 |
Ball Bearing Price: $9.49 |
| 45 |
415129371 |
Retaining Ring Price: $12.49 |
| 46 |
503190682 |
Labyrinth Seal Price: $6.29 |
| 47 |
503190434 |
Labyrinth Seal Price: $6.19 |
| 49 |
503190396 |
Ball Bearing Price: $9.49 |
| 50 |
415129371 |
Retaining Ring Price: $12.49 |
| 51 |
503190439 |
Washer Price: $6.09 |
| 52 |
250000019 |
Hex. Screw With Nylon Price: $1.69 |
| 53 |
570063600 |
Wheel Cap Price: $3.59 |

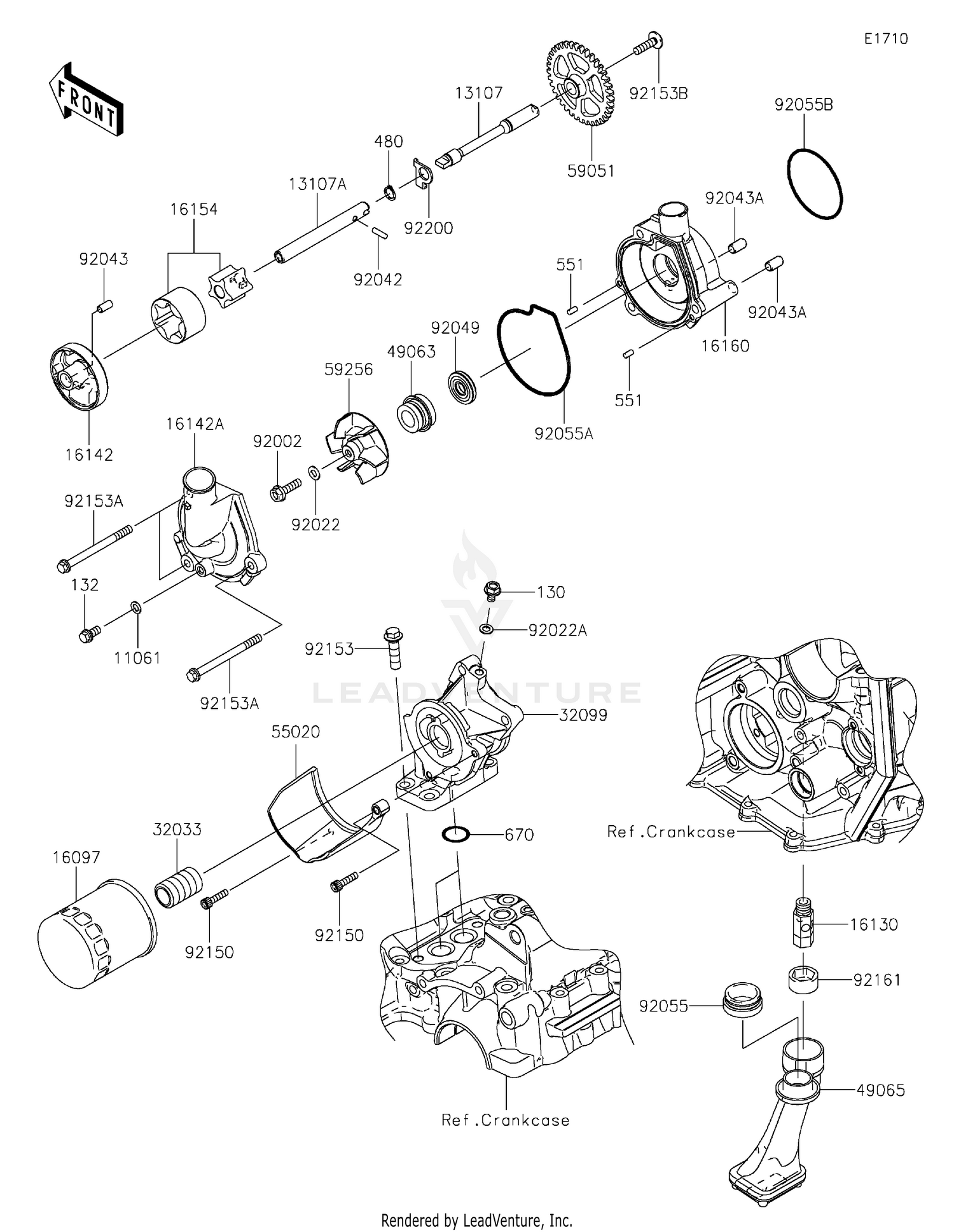

| 130 |
130BD0610 |
BOLT-FLANGED,6X10 Price: $3.67 |
| 132 |
132BA0612 |
BOLT-FLANGED-SMALL,6X12 Price: $1.20 |
| 480 |
480J1100 |
CIRCLIP-TYPE-C,11MM Price: $1.24 |
| 551 |
551A0408 |
PIN-DOWEL,4X8 Price: $0.78 |
| 11061 |
11061-0107 |
GASKET Price: $2.58 |
| 13107 |
13107-0132 |
SHAFT,PUMP,RH Price: $55.77 |
| 13107A |
13107-0202 |
SHAFT,PUMP,LH Price: $46.93 |
| 16097 |
16097-0008 |
FILTER-ASSY-OIL Price: $14.50 |
| 16130 |
16130-1059 |
VALVE-ASSY-RELIEF Price: $41.98 |
| 16142 |
16142-0057 |
COVER-PUMP Price: $47.81 |
| 16142A |
16142-0732 |
COVER-PUMP,WATER Price: $156.71 |
| 16154 |
16154-0057 |
ROTOR-PUMP Price: $75.22 |
| 16160 |
16160-0815 |
BODY,WATER PUMP This part replaces 16160-0779. Price: $136.13 |
| 32033 |
32033-1535 |
PIPE,OIL FILTER Price: $12.96 |
| 32099 |
32099-0727 |
CASE,OIL FILTER&COOLER Price: $117.04 |
| 49063 |
49063-1055 |
SEAL-MECHANICAL Price: $20.06 |
| 49065 |
49065-0024 |
FILTER-OIL Price: $28.49 |
| 55020 |
55020-0358 |
GUARD,OIL FILTER Price: $16.72 |
| 59051 |
59051-0092 |
GEAR-SPUR,37T Price: $95.29 |
| 59256 |
59256-0555 |
IMPELLER Price: $42.34 |
| 92002 |
92002-1154 |
BOLT,6X22 Price: $4.69 |
| 92022 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 92022A |
92022-304 |
WASHER,6.2X11X1 Price: $3.65 |
| 92042 |
92042-030 |
PIN,DOWEL,4X13.8 Price: $3.92 |
| 92043 |
92043-1262 |
PIN,4.2X6X12 Price: $4.31 |
| 92043A |
92043-1263 |
PIN,6.2X8X14 Price: $0.43 |
| 92049 |
92049-0798 |
SEAL-OIL Price: $28.98 |
| 92055 |
92055-1503 |
RING-O,OIL FILTER Price: $9.51 |
| 92055A |
92055-1532 |
RING-O,WATER PUMP COVER Price: $15.60 |
| 92055B |
92055-3018 |
RING-O,59.6X2.4 Price: $6.22 |
| 92150 |
92150-1019 |
BOLT,SOCKET,5X20 Price: $4.26 |
| 92153 |
92153-1086 |
BOLT,FLANGED,8X30 Price: $2.90 |
| 92153A |
92153-1649 |
BOLT,FLANGED,6X75 Price: $2.61 |
| 92153B |
92153-1792 |
BOLT,SOCKET,6X22 Price: $3.90 |
| 92161 |
92161-0070 |
DAMPER Price: $4.49 |
| 92200 |
92200-0317 |
WASHER Price: $4.20 |
