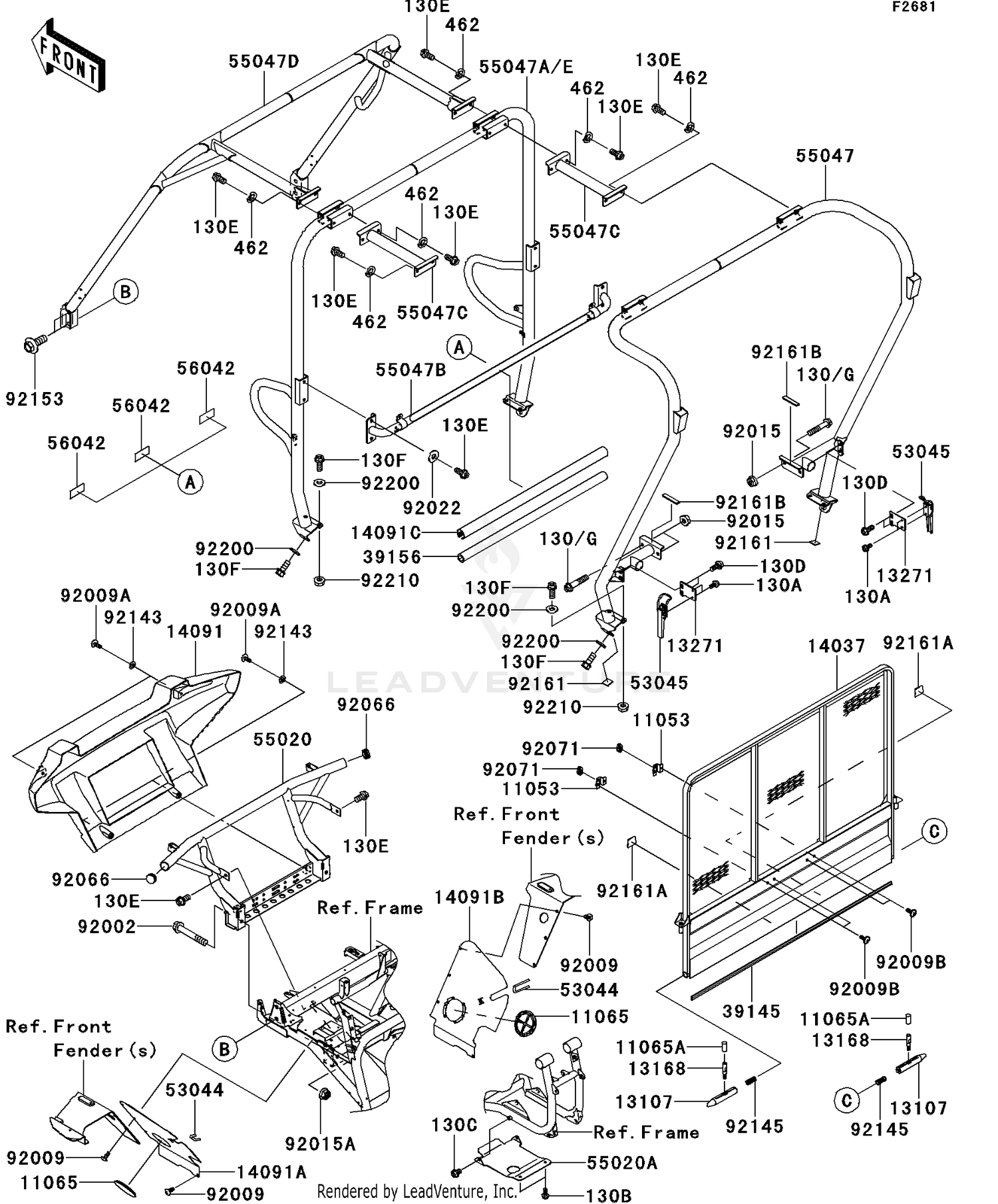

| Ref | Part Number | Description |
|---|
| 130A |
130BB0614 |
BOLT-FLANGED,6X14 Price: $2.49 |
| 130B |
130BB0616 |
BOLT-FLANGED,6X16 Price: $2.06 |
| 130C |
130BB0812 |
BOLT-FLANGED,8X12 Price: $0.68 |
| 130D |
130BB0820 |
BOLT-FLANGED,8X20 Price: $0.84 |
| 130E |
130BB1020 |
BOLT-FLANGED,10X20 Price: $5.96 |
| 130F |
130BB1025 |
BOLT-FLANGED,10X25 Price: $5.25 |
| 130G |
130BB1050 |
BOLT-FLANGED,10X50 Price: $3.69 |
| 462 |
462DB1000 |
WASHER-SPRING,10MM Price: $2.81 |
| 11053 |
11053-7528 |
BRACKET,SCREEN Price: $5.99 |
| 11065 |
11065-1053-6Z |
CAP,F.BLACK Price: $8.40 |
| 11065A |
11065-7503 |
CAP Price: $1.69 |
| 13107 |
13107-7501 |
SHAFT Price: $10.88 |
| 13168 |
13168-7506 |
LEVER Price: $8.17 |
| 13271 |
13271-7540 |
PLATE,HOOK Price: $11.77 |
| 14037 |
14037-7501-388 |
SCREEN,REAR CAB,T.BLACK Price: $217.47 |
| 14091 |
14091-0817-6Z |
COVER,FRONT GUARD,F.B Price: $126.22 |
| 14091A |
14091-1758 |
COVER,FR,LH Price: $75.61 |
| 14091B |
14091-1759 |
COVER,FR,RH Price: $75.61 |
| 14091C |
14093-0907 |
COVER This part replaces 14091-7559. Price: $32.35 |
| 39145 |
39145-7502 |
TRIM-SEAL,L=1157 Price: $29.08 |
| 39156 |
39156-7506 |
PAD Price: $11.59 |
| 53044 |
53044-1137 |
TRIM Price: $10.65 |
| 53045 |
53045-7501 |
HOOK-ASSY Price: $23.27 |
| 55020 |
55020-0387 |
GUARD,FR Price: $269.30 |
| 55020A |
55020-2295 |
GUARD,GEAR CASE This part replaces 55020-7506. Price: $30.42 |
| 55047 |
55047-0385-388 |
BAR-COMP,RR,T.BLACK This part replaces 55047-0020-388. Price: $659.59 |
| 55047B |
55047-7503-388 |
BAR-COMP,FRONT SEAT,T.BLACK Price: $68.05 |
| 55047C |
55047-7504-388 |
BAR-COMP,TOP,T.BLACK Price: $50.30 |
| 55047D |
55047-7510-388 |
BAR-COMP,FR,T.BLACK Price: $451.71 |
| 55047E |
55047-0025-388 |
BAR-COMP,CNT,T.BLACK This part replaces 55047-7512-388. Price: $589.14 |
| 56042 |
56042-7502 |
ADHESIVE Price: $1.45 |
| 92002 |
92002-1661 |
BOLT,FLANGED,12X75 Price: $13.75 |
| 92009 |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92009A |
92009-1694 |
SCREW,6X16 This part replaces 92009-1621. Price: $3.92 |
| 92009B |
92009-1662 |
SCREW,6X14 Price: $3.92 |
| 92015 |
92015-1428 |
NUT,FLANGED,10MM Price: $5.00 |
| 92015A |
92015-1433 |
NUT,LOCK,FLANGED,12MM Price: $8.86 |
| 92022 |
92022-1396 |
WASHER,10.5X26X2.3,BLACK Price: $3.21 |
| 92066 |
92066-7503 |
PLUG Price: $1.75 |
| 92071 |
92071-7505 |
GROMMET Price: $2.26 |
| 92143 |
92143-1087 |
COLLAR Price: $4.31 |
| 92145 |
92145-1215 |
SPRING,TENSIONER Price: $4.63 |
| 92153 |
92153-1282 |
BOLT,FLANGED,14X36 Price: $7.63 |
| 92161 |
92161-0020 |
DAMPER Price: $5.00 |
| 92161A |
92161-0061 |
DAMPER Price: $2.41 |
| 92161B |
92161-7514 |
DAMPER Price: $1.45 |
| 92200 |
92200-7506 |
WASHER,10.2X23X2.5 Price: $3.90 |
