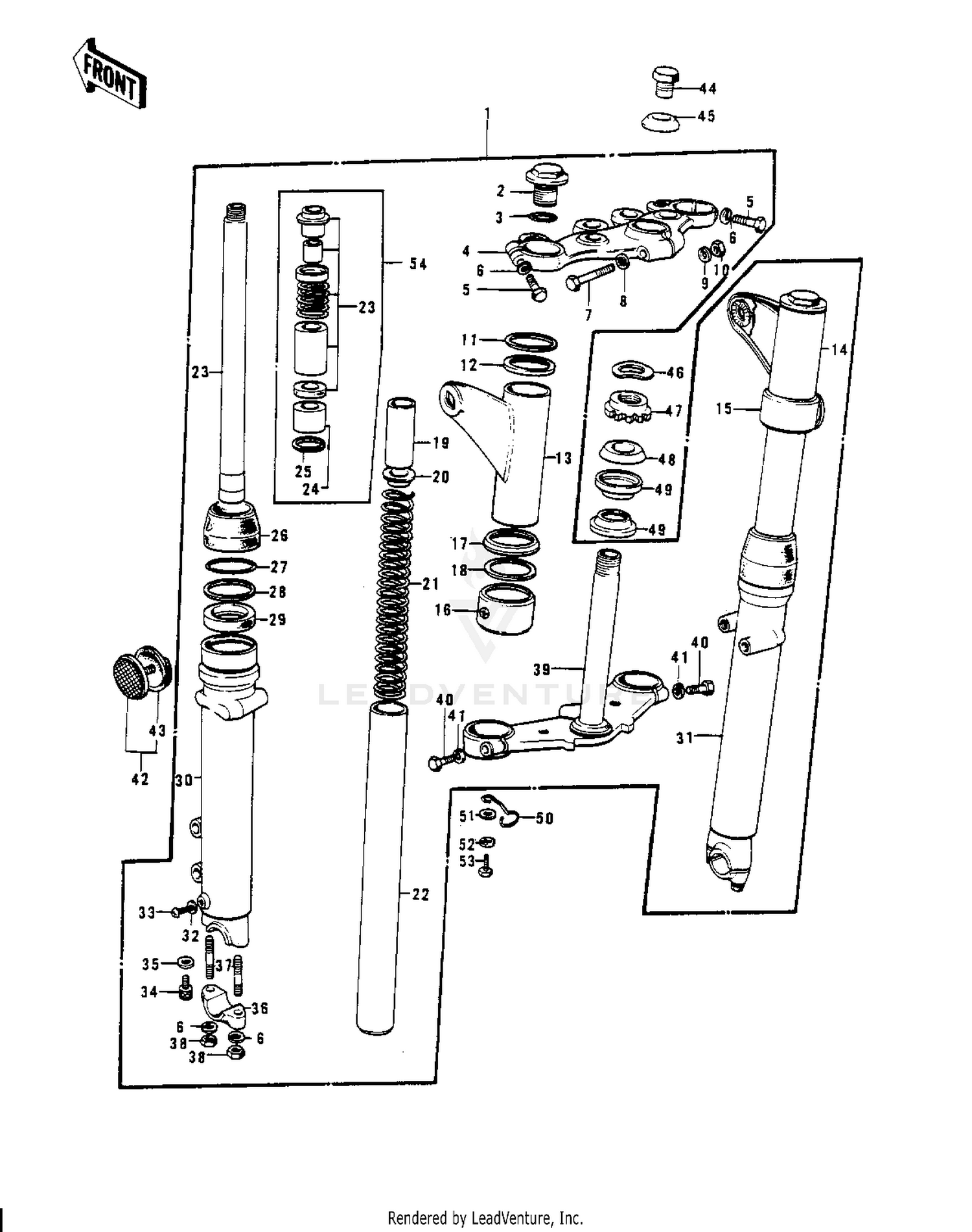

| Ref | Part Number | Description |
|---|
| 2 |
44041-037 |
BOLT-FORK FITTING Price: $42.23 |
| 3 |
92055-1012 |
O RING,FORK TOP Price: $8.50 |
| 4 |
44039-051 |
HEAD-STEERING STEM Price: $137.75 |
| 5 |
44041-044 |
BOLT-STEERING STEM HD Price: $9.20 |
| 6 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 7 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 8 |
463EA0800 |
WASHER-LOCK,8MM This part replaces 463H0800. Price: $2.06 |
| 9 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 10 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 11 |
44045-039 |
GASKET,FORK COVER Price: $5.21 |
| 12 |
44043-047 |
WASHER,FORK COVER Price: $12.15 |
| 13 |
44033-053-21 |
COVER-L.H FORK,BLACK Price: $77.12 |
| 13 |
44033-067 |
COTER,L.H FORK Price: $86.30 |
| 14 |
44034-053-21 |
COVER-R.H FORK,BLACK Price: $79.91 |
| 14 |
44034-067 |
COVER,R.H FORK Price: $86.30 |
| 15 |
44064-009 |
GUIDE-FORK COVER,R.H Price: $18.02 |
| 16 |
44064-010 |
GUIDE-FORK COVER,L.H Price: $37.85 |
| 17 |
44032-005 |
CAP,FORK COVER Price: $8.56 |
| 18 |
44045-029 |
GASKET FORK COVER Price: $5.21 |
| 19 |
44028-026 |
SPACER-FORK SP GUIDE Price: $12.63 |
| 20 |
44029-019 |
GUIDE-FORK SPRING Price: $8.55 |
| 21 |
44026-043 |
SPRING-FORK Price: $67.13 |
| 22 |
44013-038 |
TUBE-FORK INNER Price: $548.59 |
| 23 |
44022-026 |
CYLINDER-FORK Price: $87.55 |
| 23 |
44023-005 |
CYLINDER-FORK Price: $83.46 |
| 24 |
44018-001 |
PISTON FORK Price: $11.85 |
| 25 |
44044-008 |
CIRCLIP FORK PISTON Price: $9.78 |
| 26 |
44010-019 |
DUST SHIELD-FORK Price: $10.02 |
| 27 |
44044-005 |
CIRCLIP OIL SEAL FIT Price: $9.20 |
| 28 |
44043-023 |
WASHER OIL SEAL FIT Price: $3.76 |
| 29 |
44009-026 |
OIL SEAL This part replaces 44009-020. Price: $60.50 |
| 30 |
44005-046 |
TUBE,LH,FORK OUTER Price: $289.75 |
| 31 |
44006-044 |
TUBE,RH,FORK OUTER Price: $178.17 |
| 32 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 33 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 34 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 35 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 36 |
44063-006 |
HOLDER-FRONT AXLE Price: $26.15 |
| 37 |
172BA0830 |
BOLT-STUD,8X30 This part replaces 172G0830. Price: $2.56 |
| 38 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 39 |
44037-058 |
STEM-STEERING Price: $148.43 |
| 40 |
113B1032 |
BOLT HEX HEAD 10X32 Price: $6.47 |
| 41 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 43 |
28016-002 |
DAMPER RUBBER-REFLEX Price: $8.55 |
| 44 |
92007-031 |
BOLT,STEERG STEM HEAD Price: $29.84 |
| 45 |
92200-1273 |
WASHER,16X41X4.5 This part replaces 92022-230. Price: $11.93 |
| 46 |
46100-003 |
WASHER,WAVE Price: $11.39 |
| 47 |
92090-007 |
NUT,30MM Price: $11.71 |
| 48 |
46098-016 |
CAP,STEERING STEM Price: $6.51 |
| 49 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 50 |
92037-099 |
CLAMP-CABLE Price: $6.65 |
| 51 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 52 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 53 |
112BA0610 |
BOLT-UPSET,6X10 This part replaces 112G0610. Price: $0.58 |
